Features

CHN590 is a 9-in-1 USB-C multiport docking station that you can get the most out of your laptop through USB-C port. It turns a single USB-C port into 9 ports, including three SuperSpeed USB-A port, one SuperSpeed USB-C port, SuperSpeed card reader slots, HDMI Display expansion, Gigabit Ethernet, and 100W PD charging.

If you need to connect with various devices to your laptop at same time, this docking station is a comprehensive connectivity solution that helps you do more with the devices you already have to increase productivity and convenience.

The adapter comes in a durable aluminium alloy housing, making for a stylish addition to your desk, whilst its compact design makes it perfect for travelling.

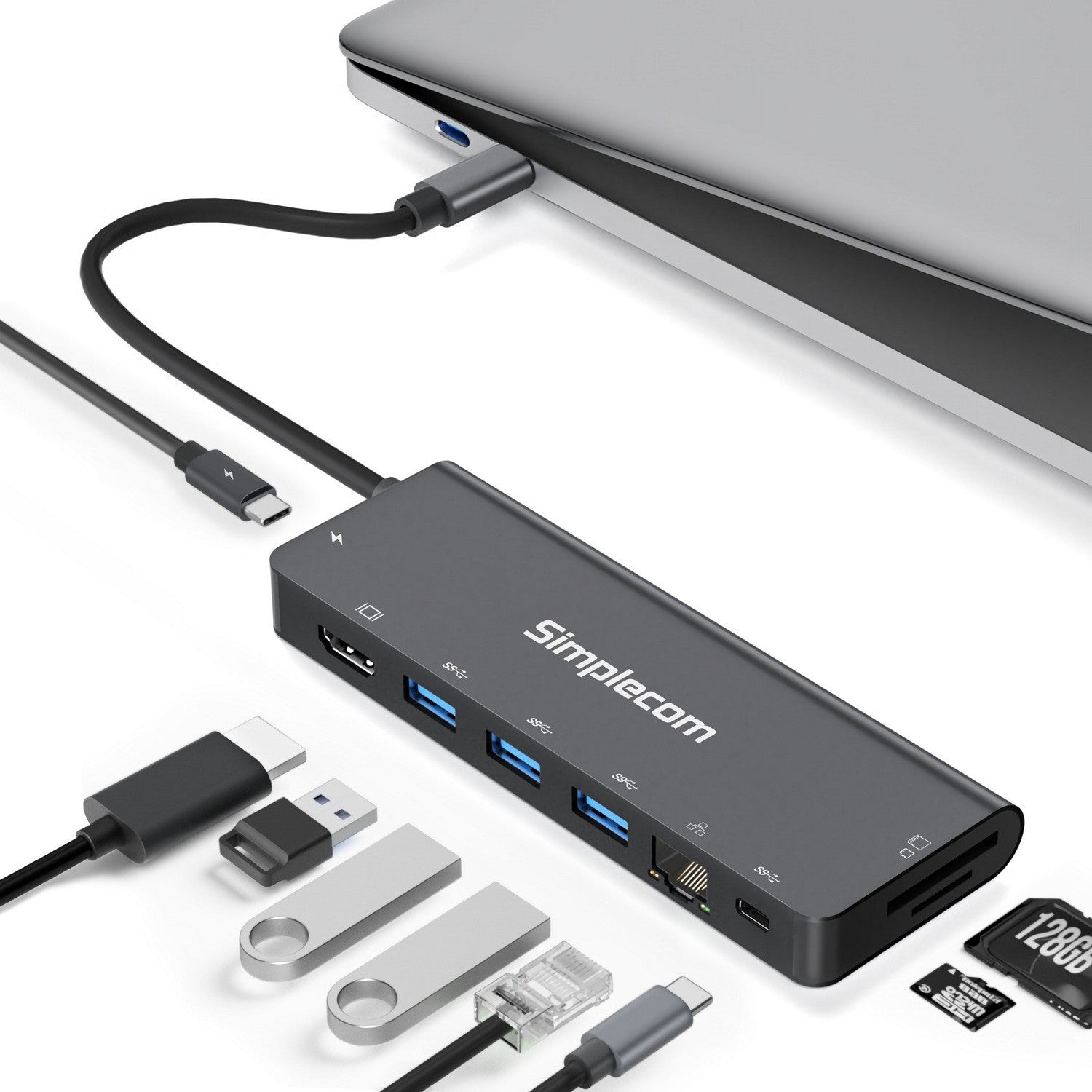

• 9-in-1 Massive USB-C Docking Station

A powerful all-in-one USB-C docking station with three SuperSpeed USB-A port, one SuperSpeed USB-C port, SuperSpeed card reader slots, HDMI Display expansion, Gigabit Ethernet, and 100W PD charging.

• SuperSpeed USB Hub with SD/MicroSD Card Reader

3x USB-A and 1x USB-C ports with a maximum transfer speed up to 5Gbps. It allows you to connect USB Storage Drive, keyboard, mouse, thumb drive or other USB devices. 2-Slot SD/MicroSD card reader is also SuperSpeed data transfer rate.

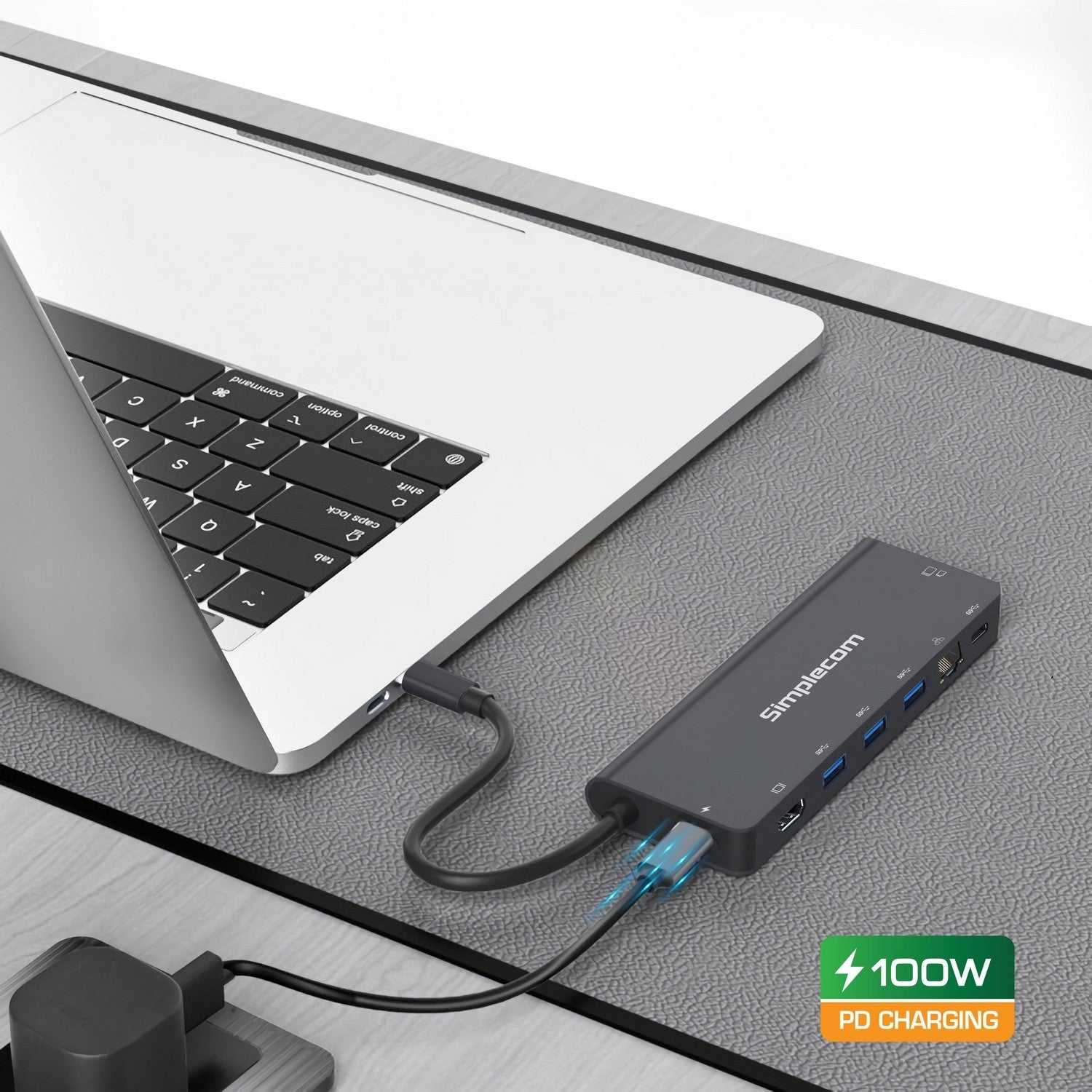

• 100W USB-C Power Delivery

The USB-C PD Port can charge your connected laptop while other ports are working. The USB-C port supports PD3.0 and up to 100W Power Delivery charging.

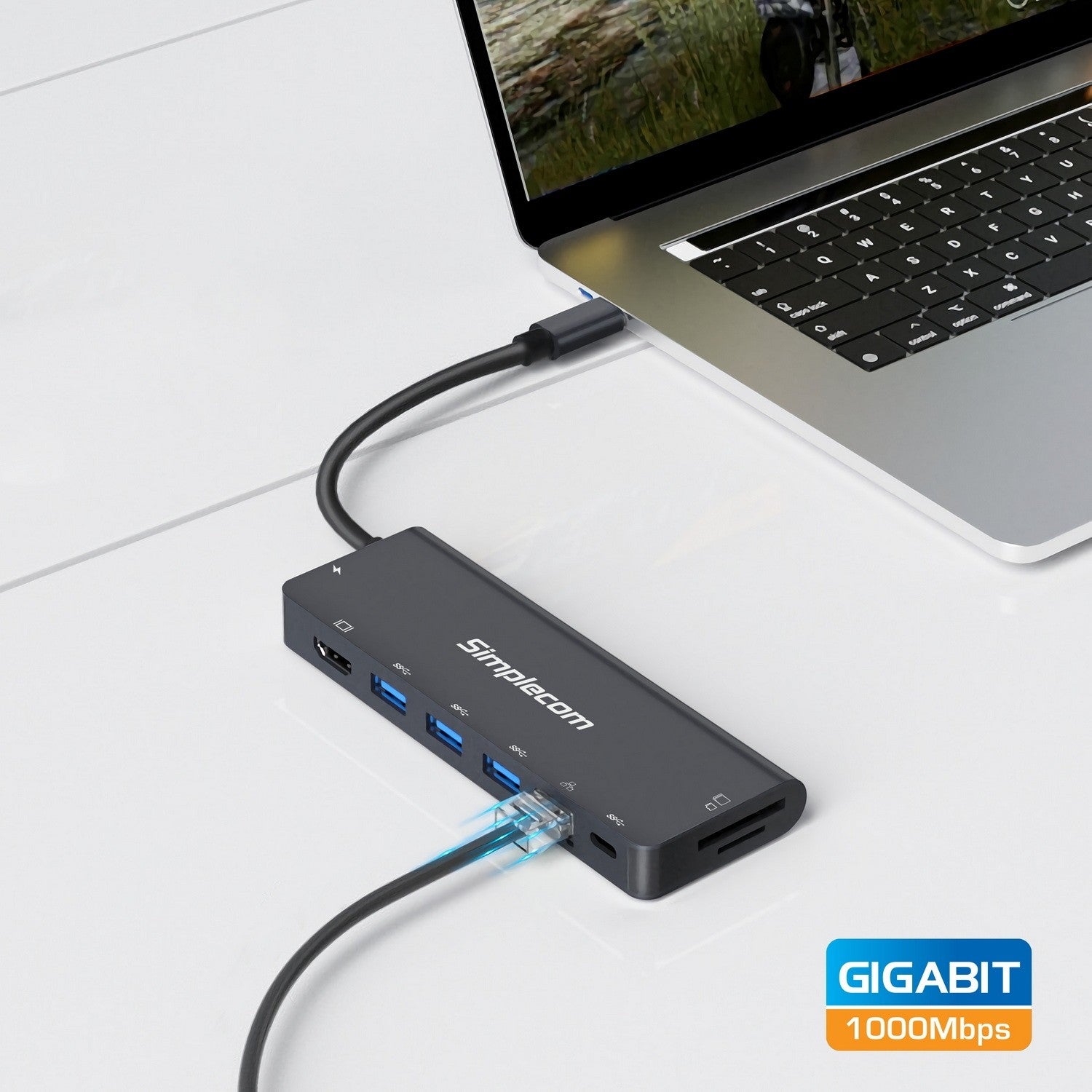

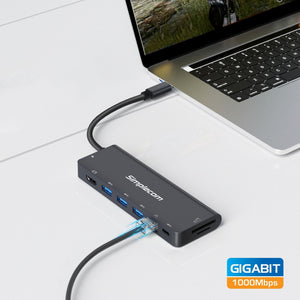

• Gigabit Ethernet

Connect to the network instantly and enjoy stable connection speeds of up to 1000Mbps, Avoid the latency and interference issues for a more consistent, reliable experience when streaming or downloading.

• Stylish and Durable Aluminium Alloy Casing

This USB-C multiport adapter comes in a durable aluminium alloy housing, making for a stylish addition to your desk, whilst to ensure stable performance and protect the circuit, the metal shell facilitates the heat dissipation when the chip and hub work.

• 9-in-1 USB-C multiport docking station for comprehensive expansion to your laptop
• Single USB-C to extra USB ports, HDMI, Gigabit Ethernet, Card Reader and PD
• USB ports support up to 5Gbps transfer rate following USB 3.2 Gen 1 specification
• HDMI port supports up to 4K@30Hz resolution in Mirror or Extended mode
• Gigabit Ethernet support connection speeds of up to 1000Mbps
• 2 Slot Card reader for SD and microSD with SuperSpeed data transfer rate
• USB-C PD port for charging the laptop with up to 100W of power
• Durable & stylish aluminium alloy housing
• Lightweight, easy to carry along when travelling
• Built-in flexible USB-C Cable
• Plug & play, no driver software required

Specifications

• USB Hub: 3x USB-A Female (SuperSpeed 5Gbps), 1x USB-C Female (SuperSpeed 5Gbps)
• HDMI Video Resolutions: Support up to 3840 x 2160p at 30Hz (4K@30Hz)
• RJ45 Port: Gigabit Ethernet (10/100/1000 Mbps)
• Card Reader: SD and MicroSD (SuperSpeed 5Gbps)
• PD Charging: USB-C Female (charging only), PD3.0 up to 100W
• Operation Temperature: 0 - 45°C
• Housing Material: Aluminium

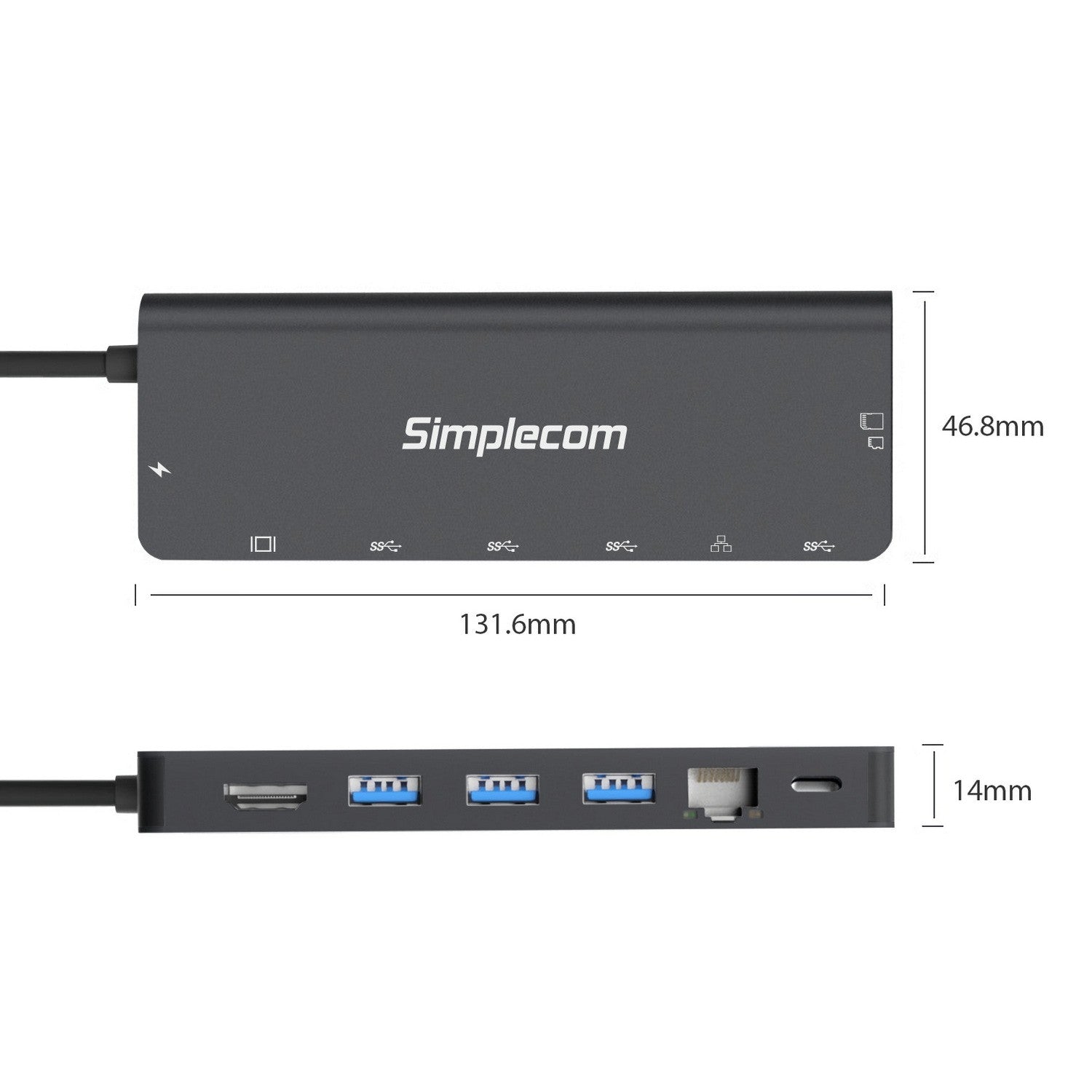

• Dimensions: 13 x 4.7 x 1.4 cm
• Cable Length: 19 cm
• Weight: 88g

System Requirements

• Available USB-C port on PC, Mac, Phone or Tablet with DisplayPort Alternate Mode support
• Operating system: Windows 7 or above, MacOS 10.7.1 or above, Android

Important Note

• Before purchasing, please confirm the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports only work for charging or data transfer, no video output function
• The USB-C PD port is for PD Charging only, not for data transfer
• Please connect power delivery adapter when using high power devices
• Don't recommend for charging iPad, tablet or other high power USB devices
