Description

Features

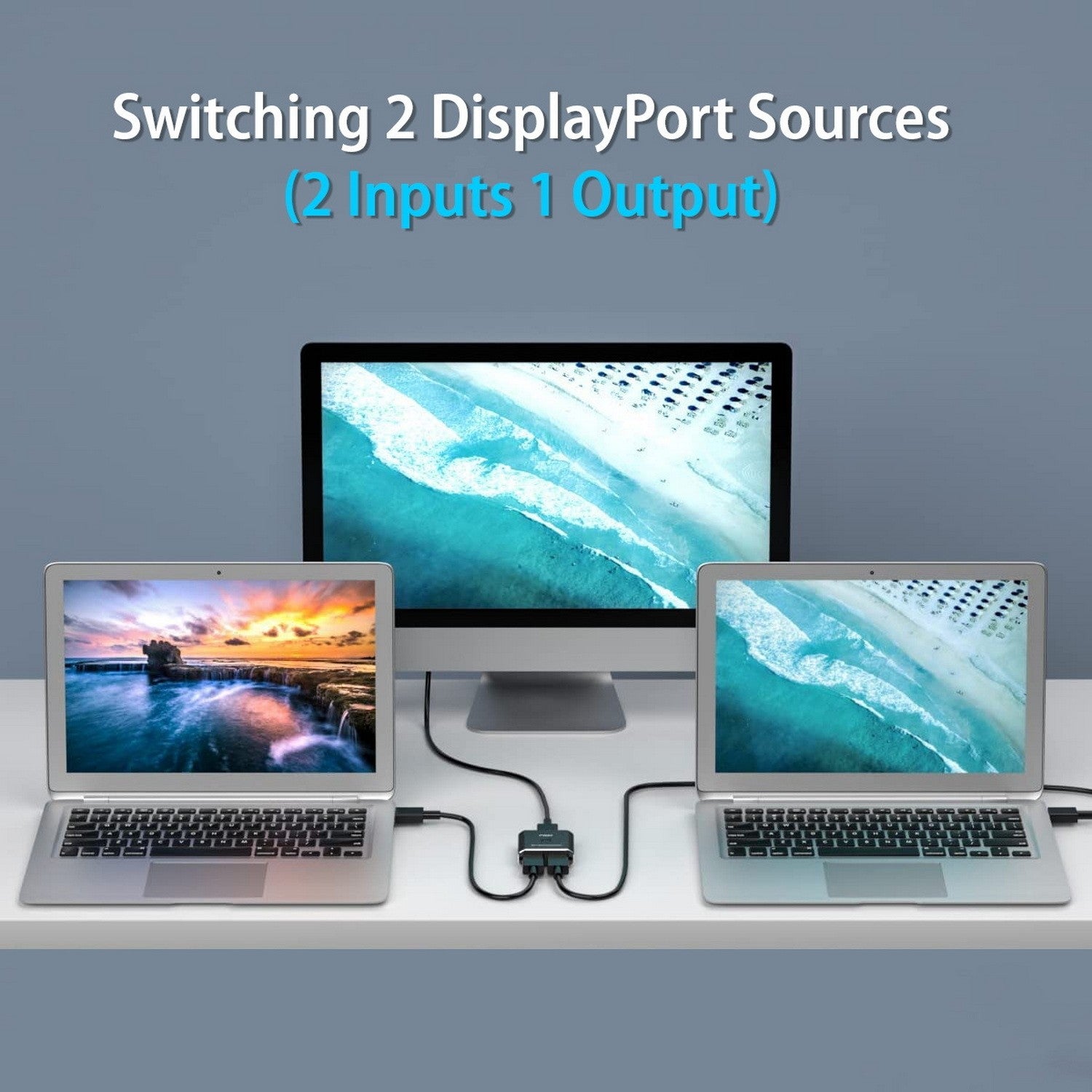

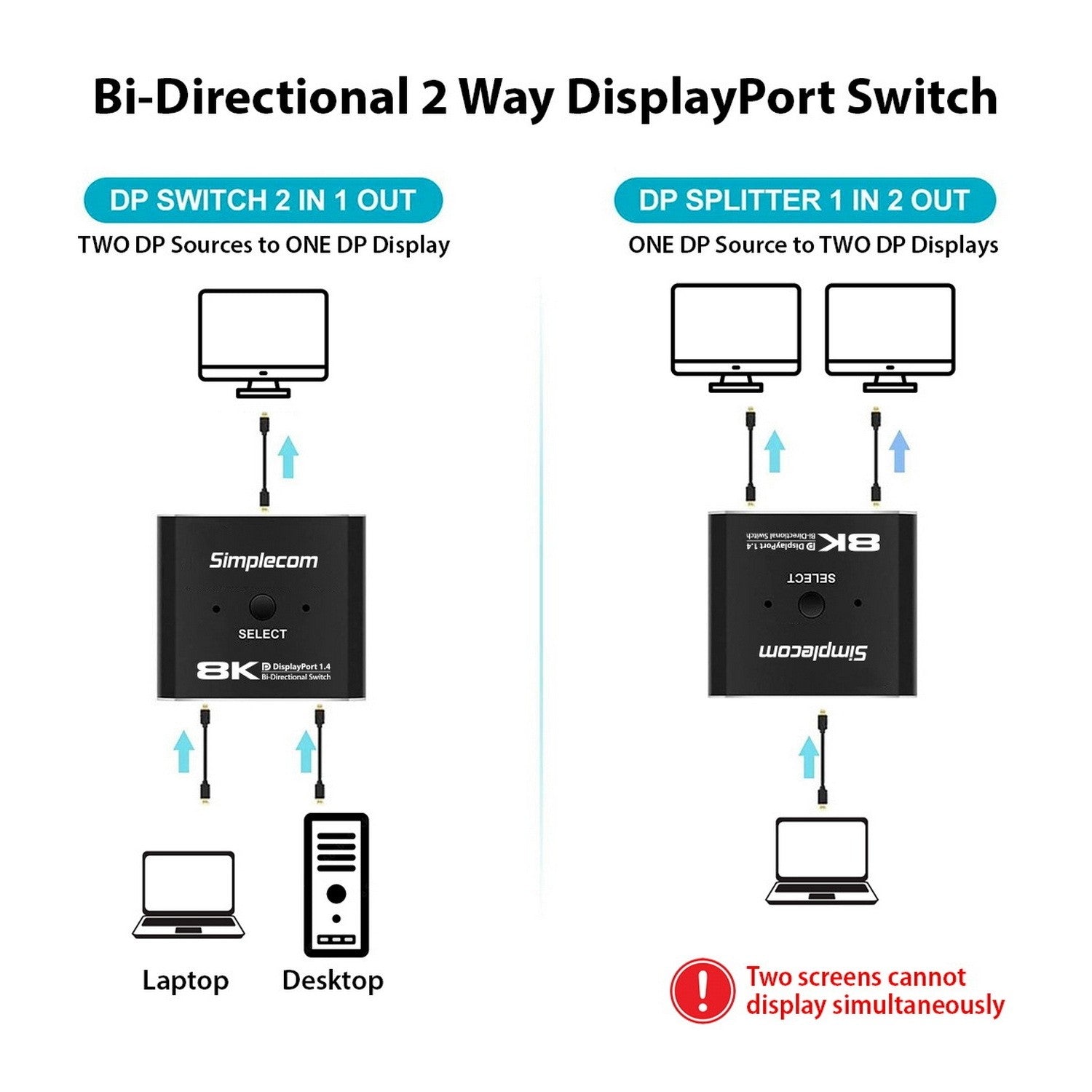

  • Bi-Directional DisplayPort switch for toggling between 2 DP sources or displays
  • Quickly switch video sources or displays without having to swap cables
  • Durable aluminium alloy casing, also efficiently dissipate heat
  • Portable and compact size, easy to install
  • DisplayPort 1.4 compliant, support bandwidth up to 32Gbps
  • Backwards compatible with previous DP version
  • Support video resolution up to 8K@30hz
  • Plug and Play, Powered by USB

Specifications

  • Model: CM202
  • DisplayPort Version: DP 1.4
  • Video Resolution Support: up to 8K@30Hz, 4K@120Hz, 2K@144Hz, 1080P@240Hz
  • HDR Support: Yes
  • Max Bandwidth: 32Gbps
  • Max cable distance: 3M (Input + Output)
  • Max Operation Current: 0.5A
  • Power Input: USB-C, DC 5V (power adapter is not included)
  • Operating Temperature: (-15 to +55°C)
  • Dimension (L x W x H):  59x53x15mm
  • Weight: 35g

Package Contents

  • 1 x Bi-Directional DisplayPort Switch
  • 1 x DisplayPort cable
  • 1 x USB Power Cable

Important Notes:

  • For stable connection, the max total cable length of is 3M (Input + Output)
  • This is a manual DisplayPort switch and does not support automatic switching
  • Powered by USB, with USB-C power cable that can be plugged to USB port on computer or USB charger

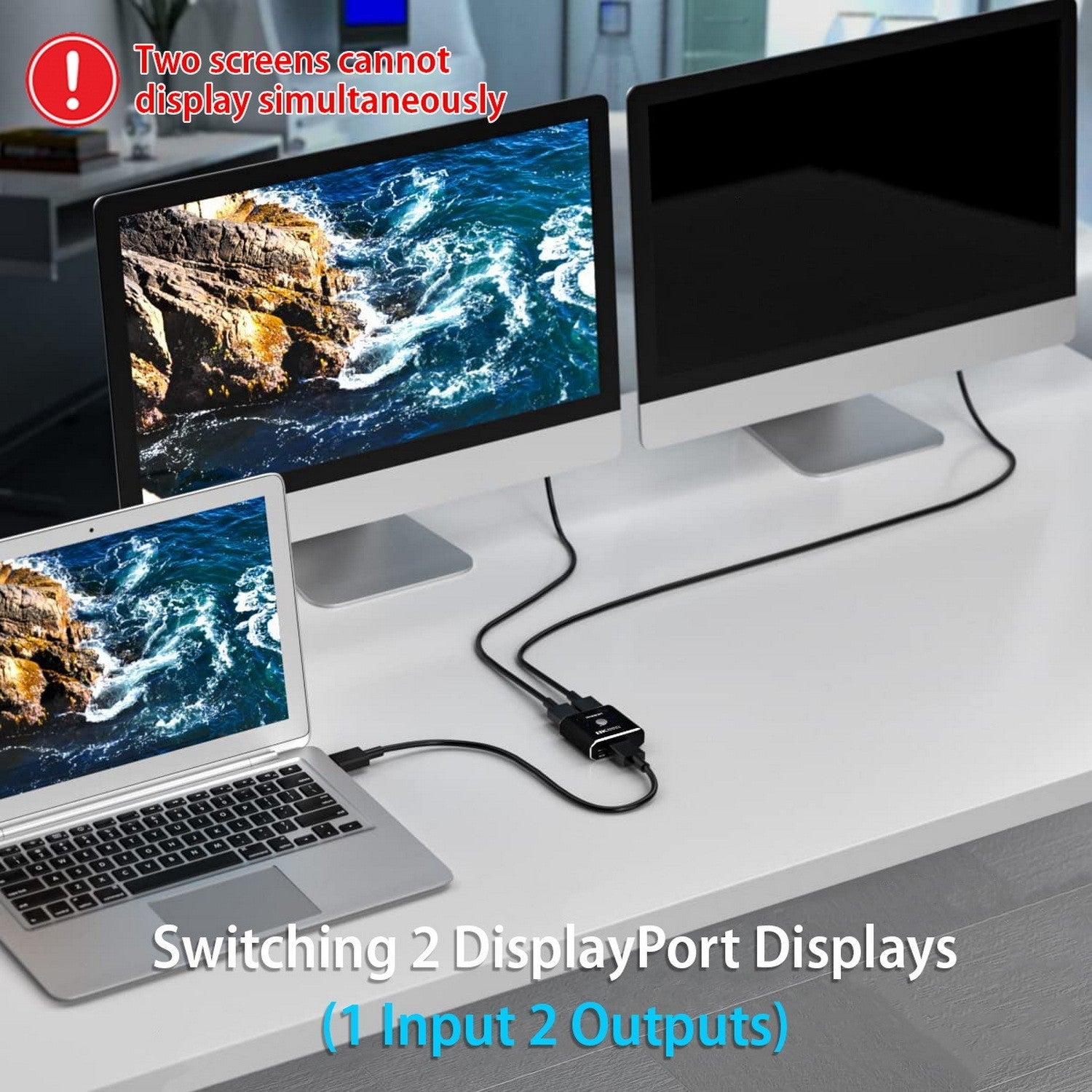

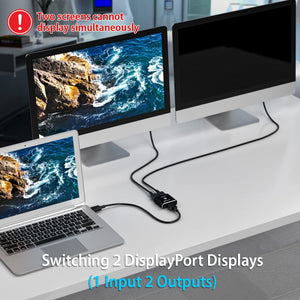

  • Two screens cannot display simultaneously under 1 Input 2 Outputs mode
