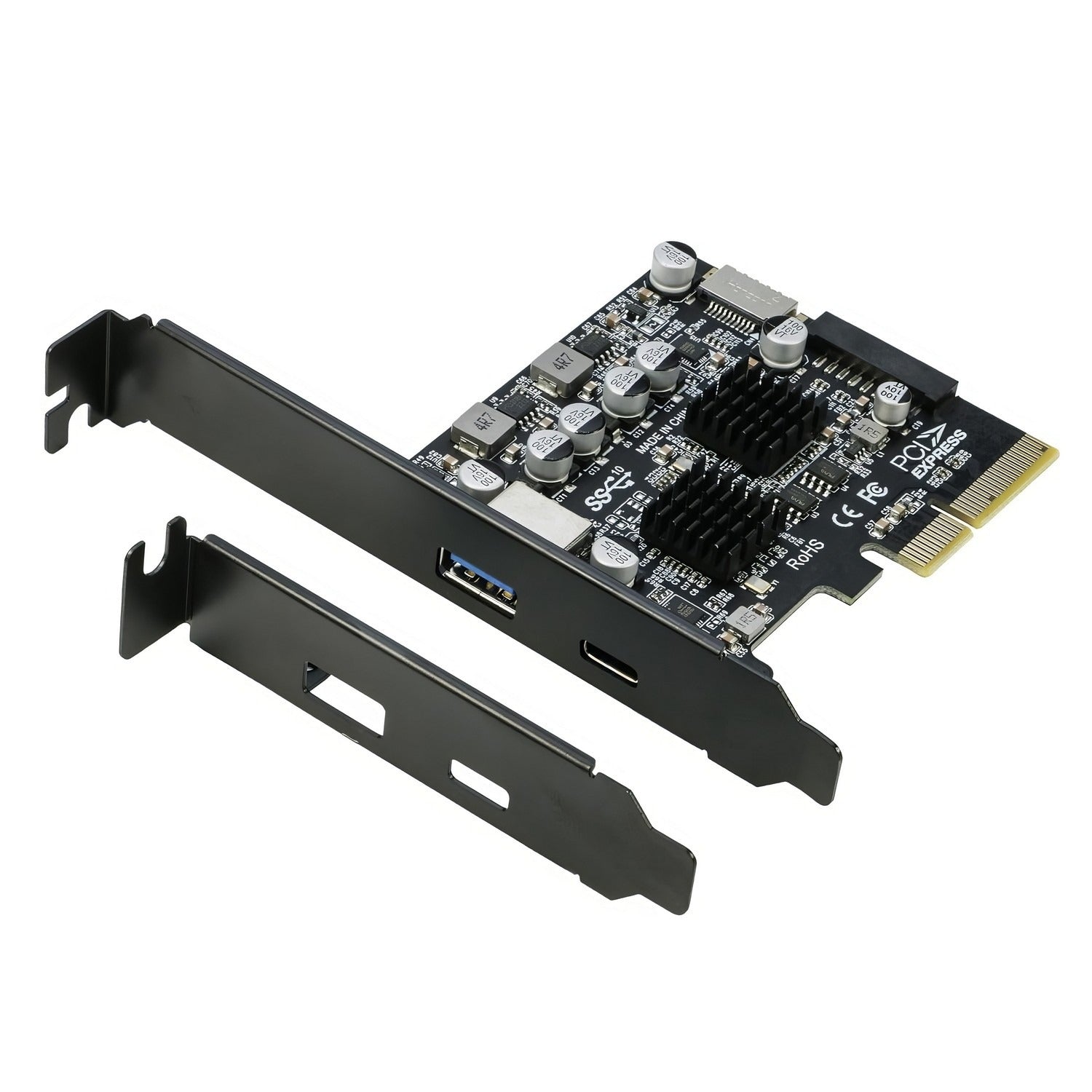

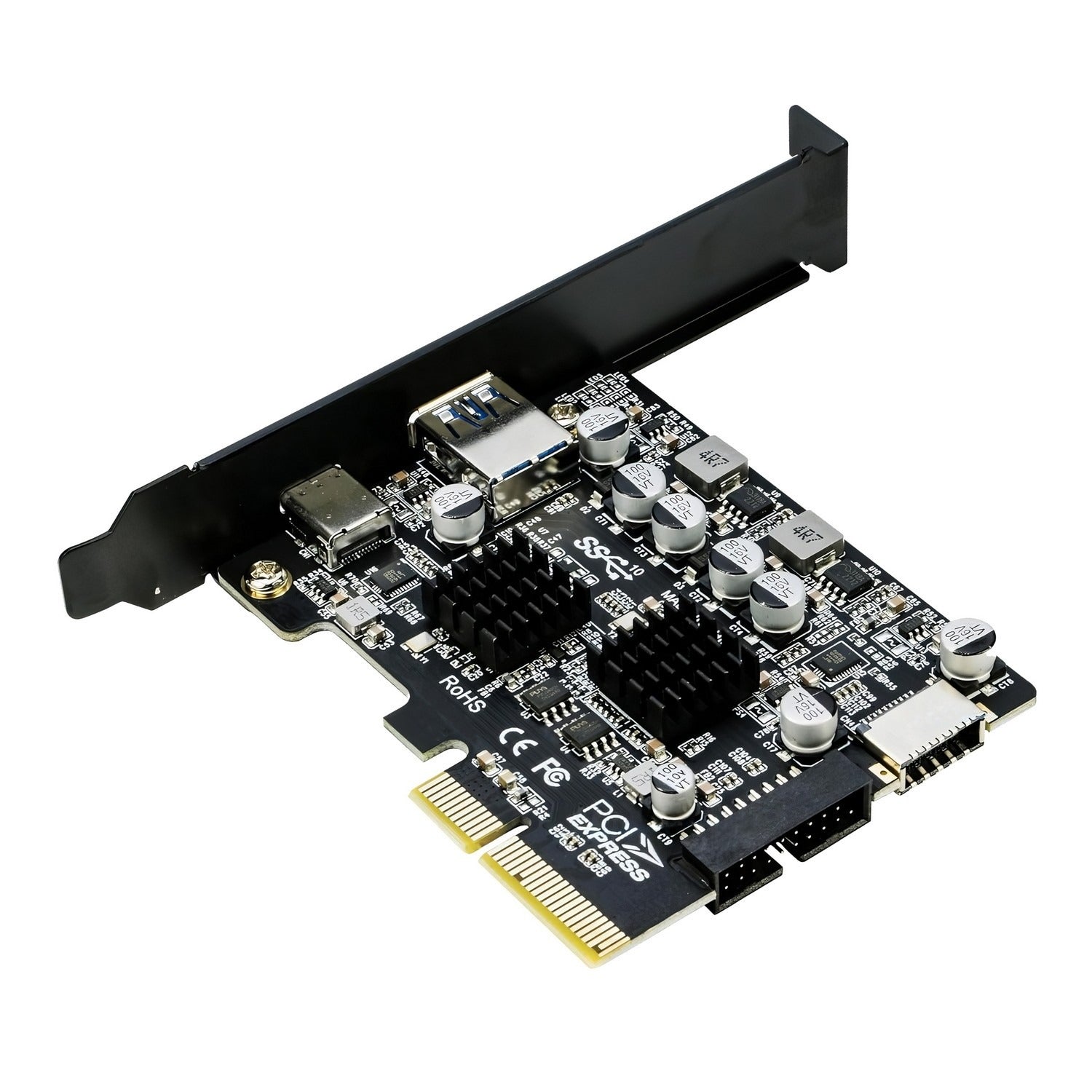

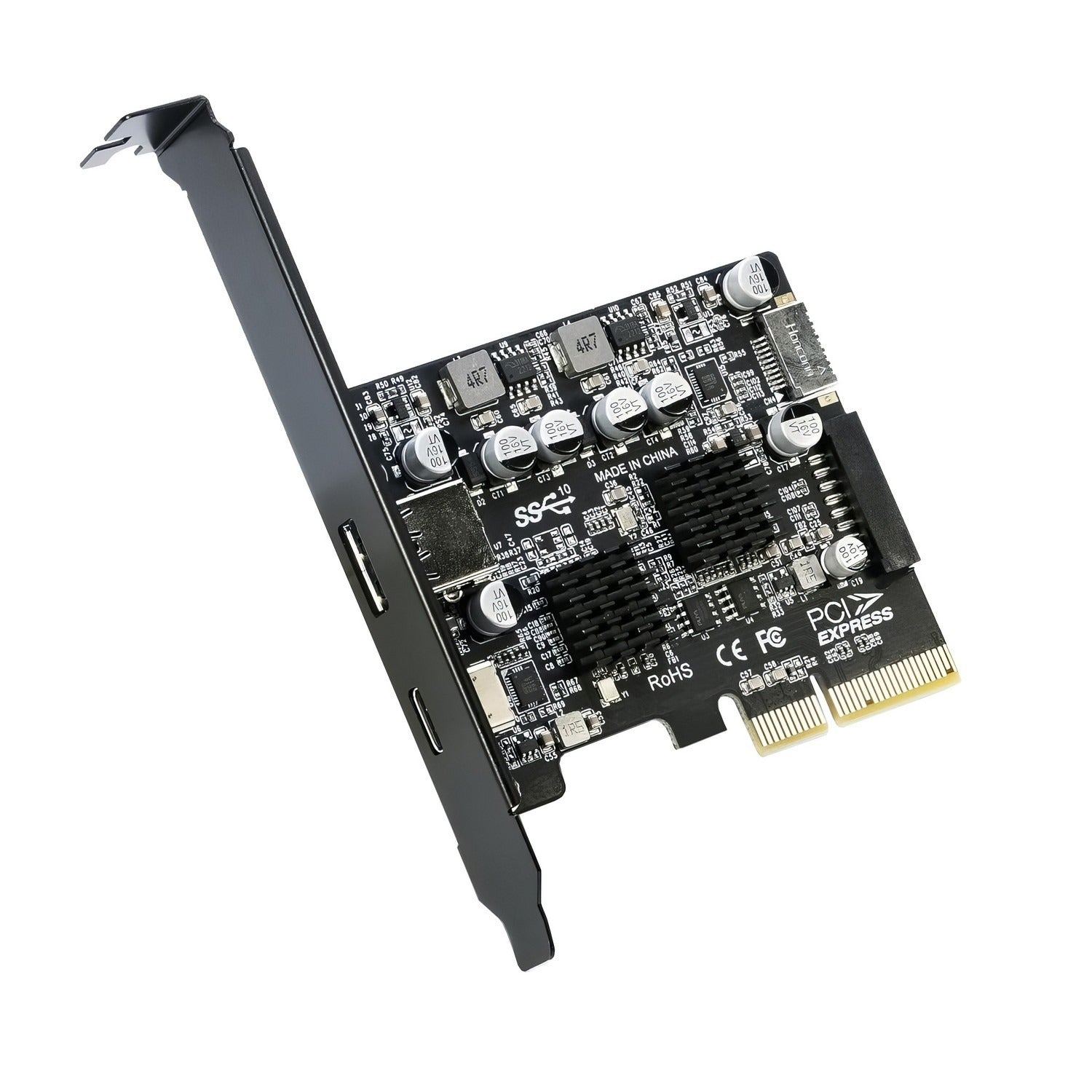

A PCI Express expansion card designed to provide both external and internal USB connectivity, offering 4 external and internal USB connectors with speeds reaching 10Gbps.

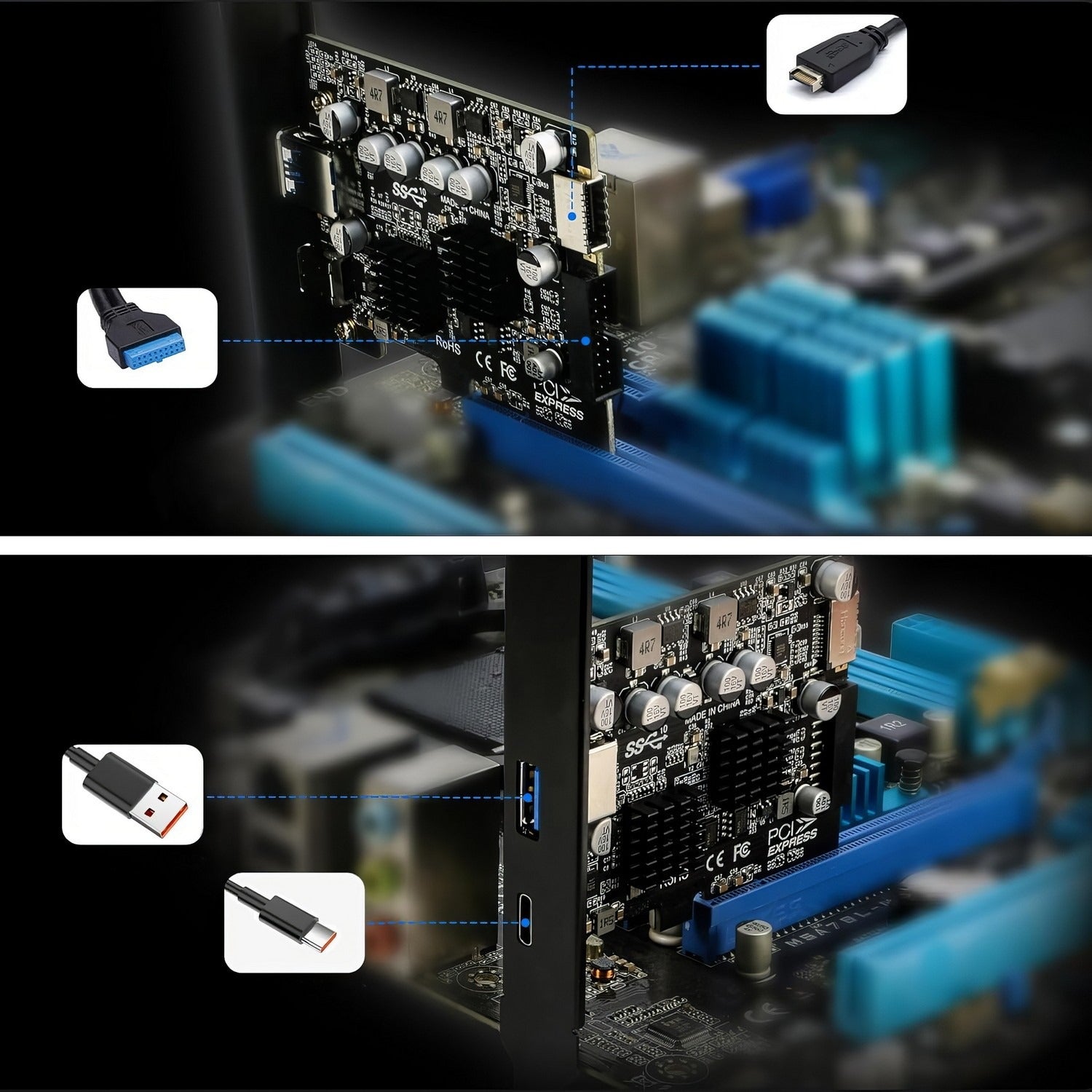

Integrates a PCIe to USB 3.2 Gen 2 controller and USB 3.2 Gen 2 hub controller, permitting simultaneous operation of rear and front panel ports. The rear features one USB-C and one USB-A port; internal connectors accommodate front panel devices via a 19/20-Pin connector and Key-A (Type-E) connector.

Draws power exclusively from PCIe, eliminating external power requirements, with integrated PCIe 12V to 5V modules. Plug-and-play on Windows systems.

Features

• PCIe x4 expansion card, also compatible with PCIe x8 or x16 slot
• USB 3.2 Gen 2 interface supports data transfer rates up to 10Gbps
• Integrated PCIe to USB 3.2 Gen 2 controller and USB 3.2 Gen 2 hub controller
• Rear and front panel USB ports can operate simultaneously
• Two rear panel connectors: 1x USB-C and 1x USB-A port
• Two internal connectors for front panel: USB 3.0 19/20-Pin and Key-A (Type-E)
• Backwards compatible with USB 2.0 and USB 1.1 devices
• Built-in over current protection on each USB port
• Powered by PCIe, no external power required
• Plug and play, automatic installation on Windows

Specifications

• PCIe Interface: PCIe 3.0 x4 (compatible with x8/x16 slot)
• USB Standard: USB 3.2 Gen 2 10Gbps
• Rear Panel Connectors: 1x USB-A, 1x USB-C
• Internal Front Panel Connectors: 1x USB 3.0 19/20-Pin, 1x Key-A (Type-E)
• USB Speed Support: SuperSpeed+ 10Gbps, SuperSpeed 5Gbps, HiSpeed 480Mbps, Full Speed 12Mbps
• Power Source: Integrated PCIe 12V to 5V module
• OS Support: Windows 7 and above
