Features

• Add extra NVMe M.2 slot to your PC

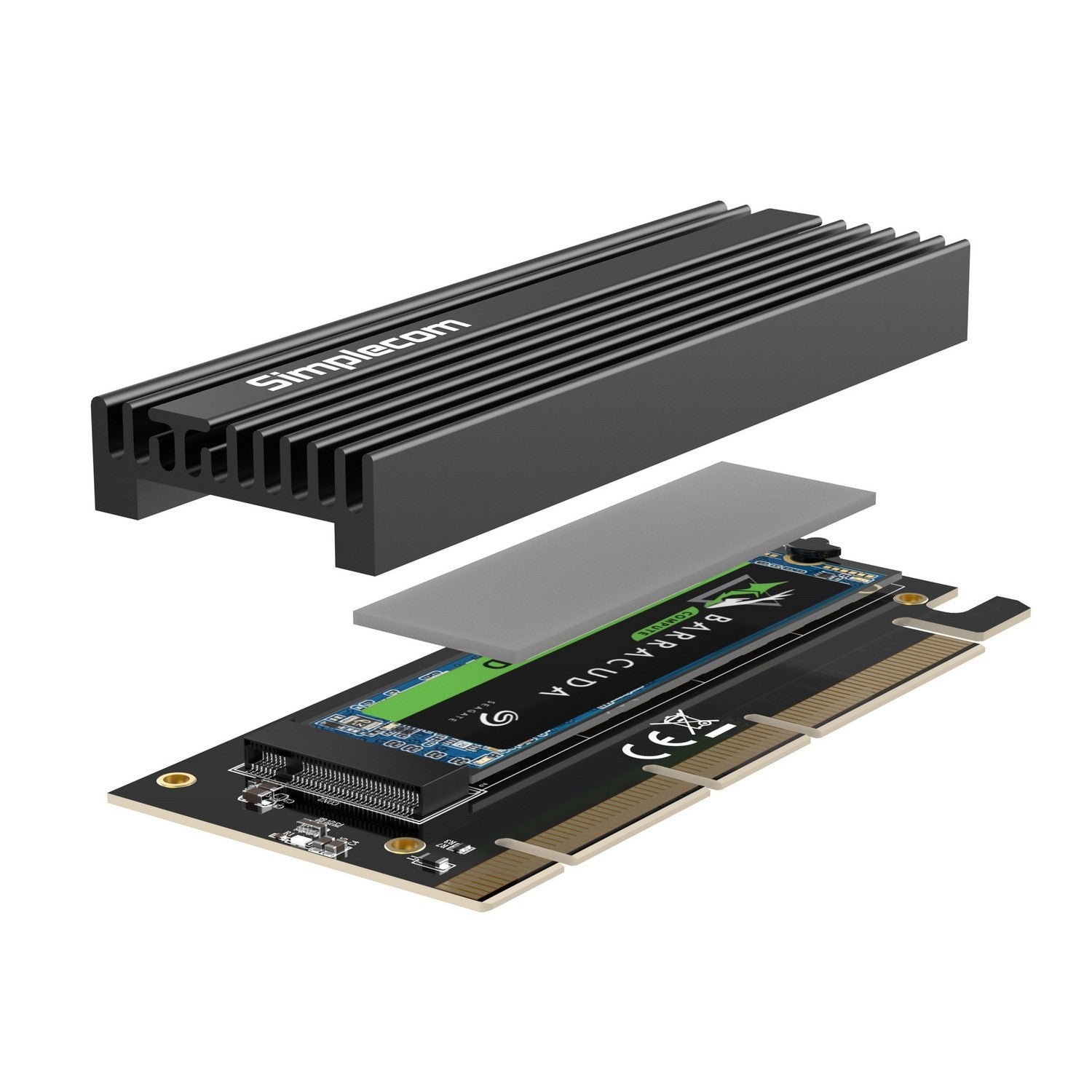

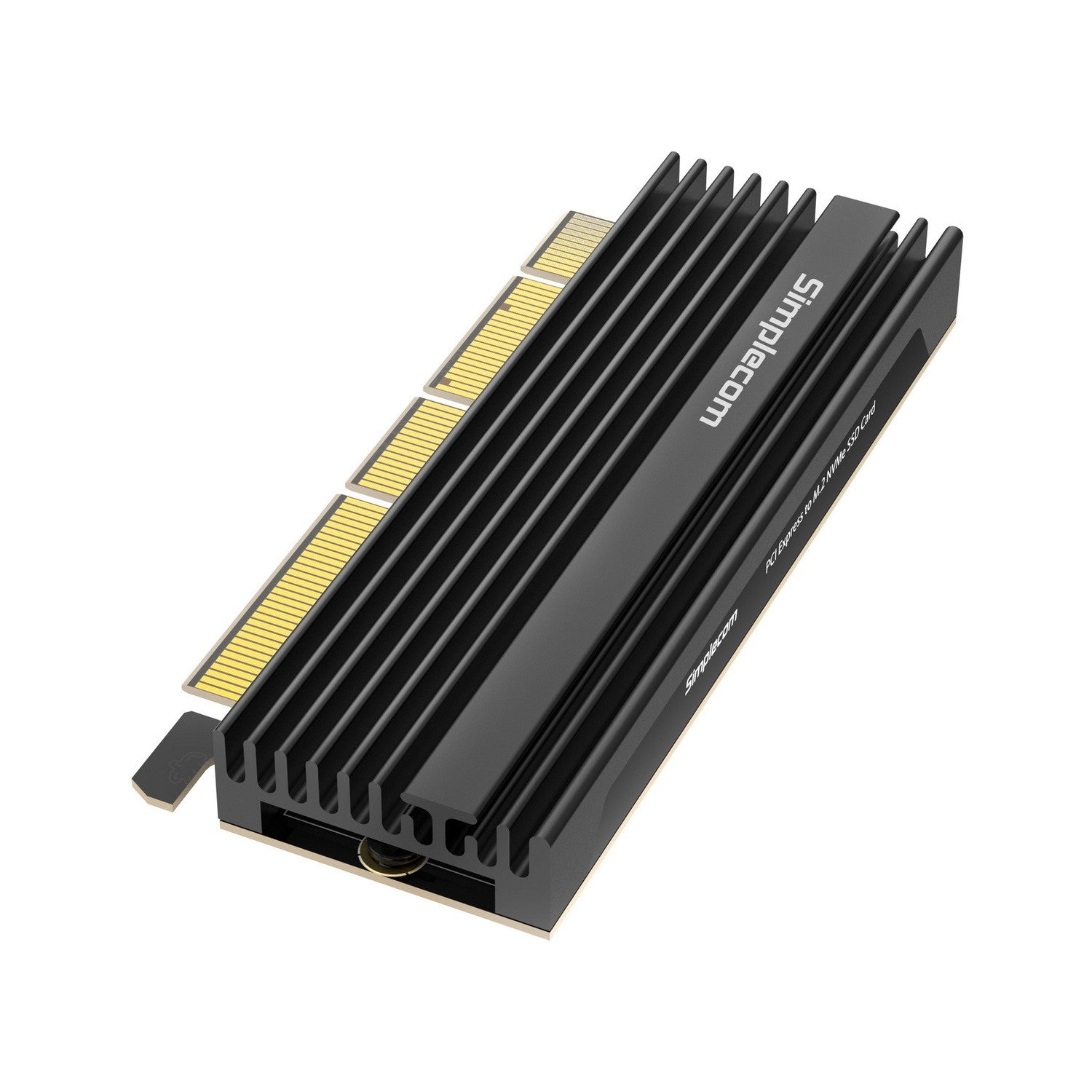

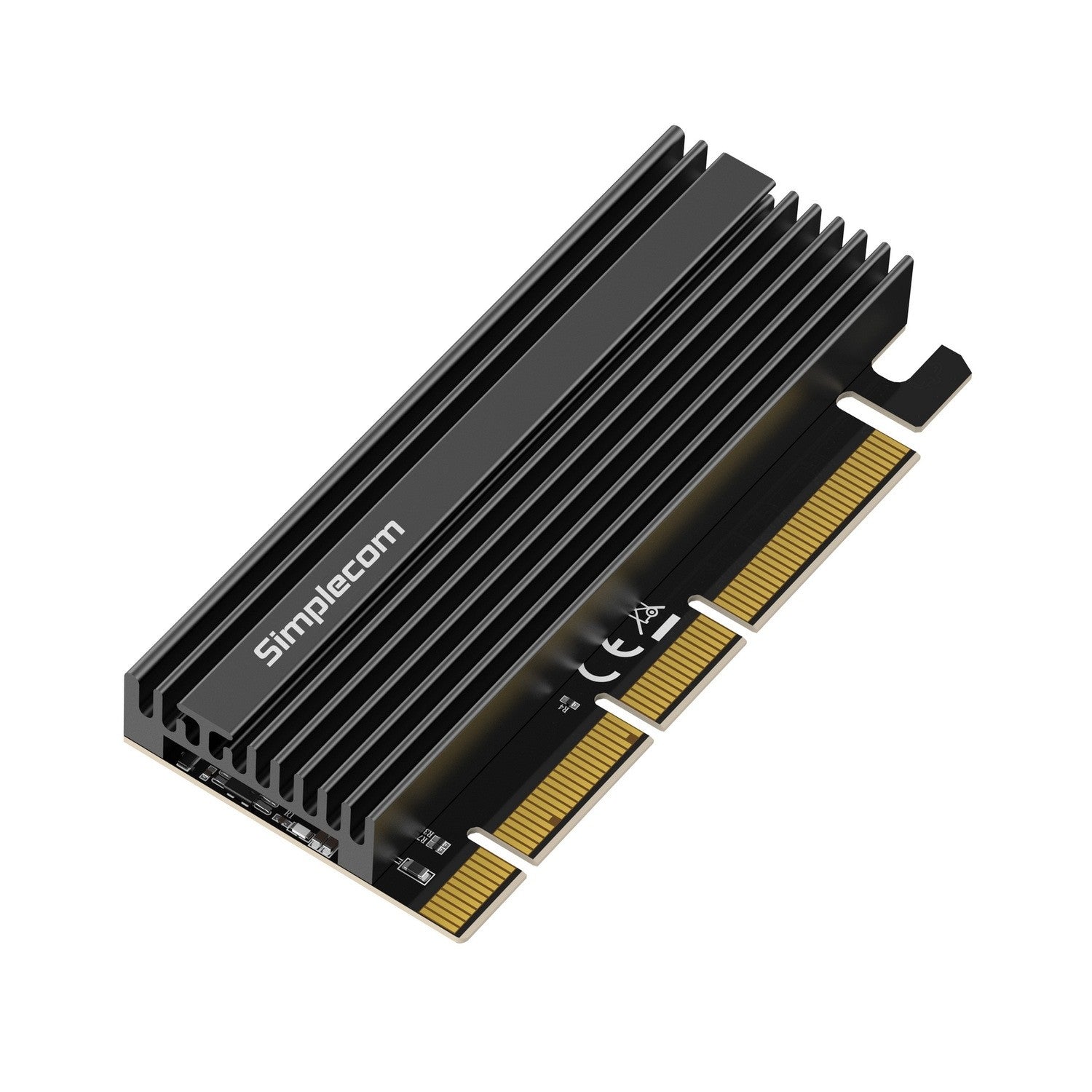

• Aluminium heat sink for effective heat dissipation
• Silicone thermal pad for improved thermal conductivity
• Supports physical PCIe x4 x8 x16 slot
• Supports logical/throughput interface up to PCIe x4
• Powered by PCIe slot, no additional power required
• Compatible with Windows 8 and above

Specifications

• Model: EC415B
• Color: Black
• Physical Interface: PCI Express x4 / x8 / x16
• Logical Interface: PCI Express x4
• Bandwidth: up to 7.8 Gbps (PCIe x4 on PCIe 4.0)
• Module Key: M key (for NVMe M.2 only)
• Number of Supported Drive: 1
• Supported Type M.2 SSD: 2230, 2242, 2260, 2280
• Dimension: 99 x 45 x 13mm

Package Contents

• 1x NVMe M.2 to PCIe Expansion Card
• Heatsink with thermal pad
• Standoff and screw set

Important Note

• This model is for use with NVMe SSD only, SATA M.2 SSD is Not supported
• It supports physical PCIe x4 x8 x16 slot only, PCIe x1 slot is Not supported
• It supports logical/throughput interface up to PCIe x4
• NVMe M.2 SSD requires the use of Intel 9 series (Z97 H97 Z170 X99) or higher version chipset based motherboard with Windows 8 or higher operating system
• If there is a yellow exclamation mark under the Device Manager after installation, you may need to check if additional driver required from SSD manufacturer
• Legacy motherboard without built-in NVMe M.2 slot can’t support booting operating system from PCI Express
