Features

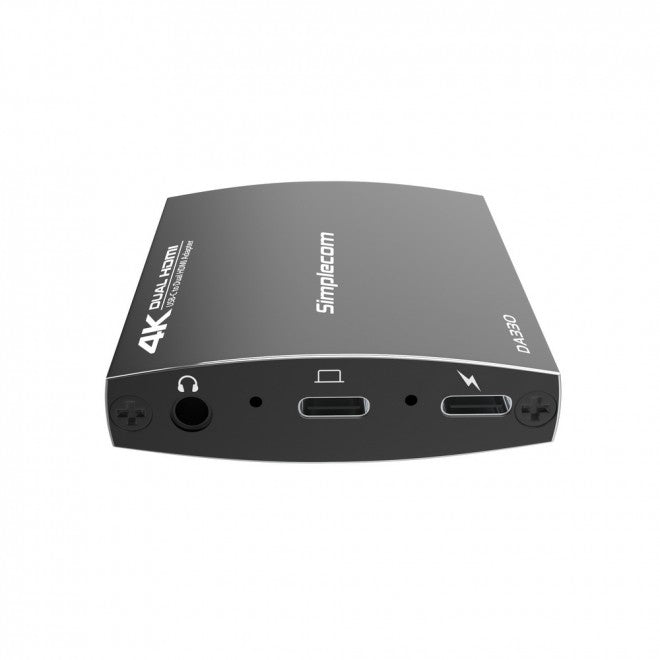

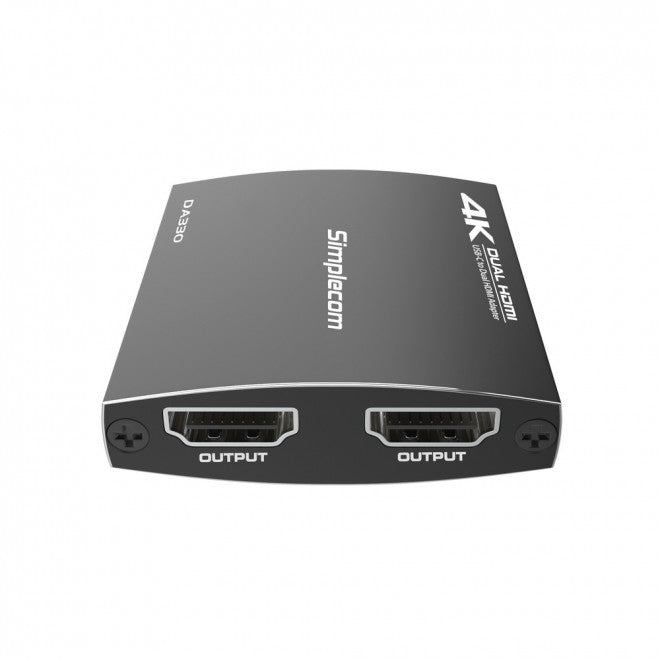

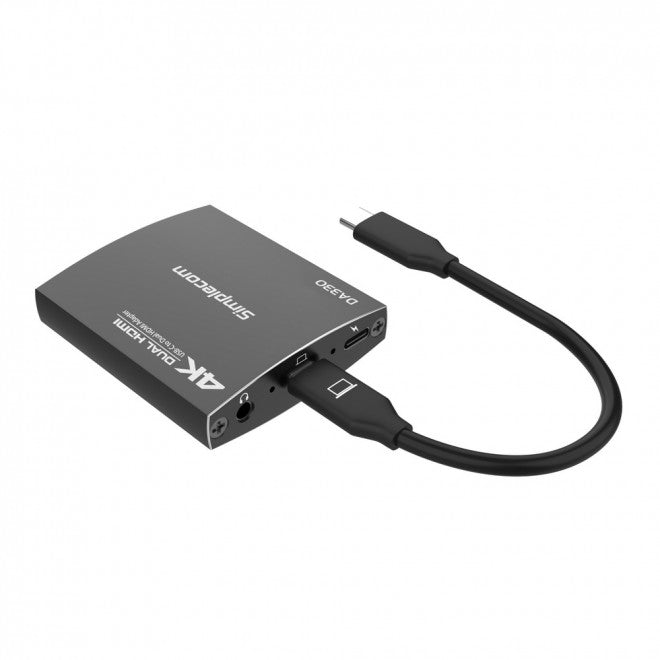

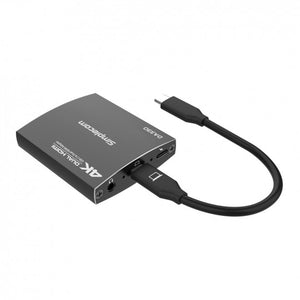

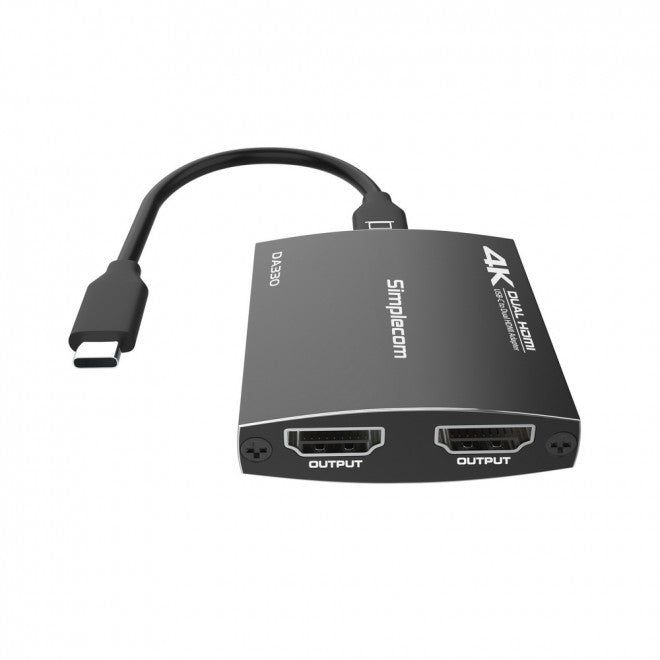

DA330 is a USB-C multiport MST (Multi Stream Transport) adapter offers dual HDMI outputs, USB-C Power Delivery, and 3.5mm audio output. It allows you to connect 2 screens simultaneously and supports both extend and mirror modes for Windows system.

DA330 supports display resolutions up to 4K@60Hz when single display is connected, and up to 4K@30Hz when two displays are connected. It also supports Power Delivery up to 100W charging via the USB-C port and one 3.5mm headphone jack for audio output.

• Support MST (Multi Stream Transport) for mirror or extended screen mode

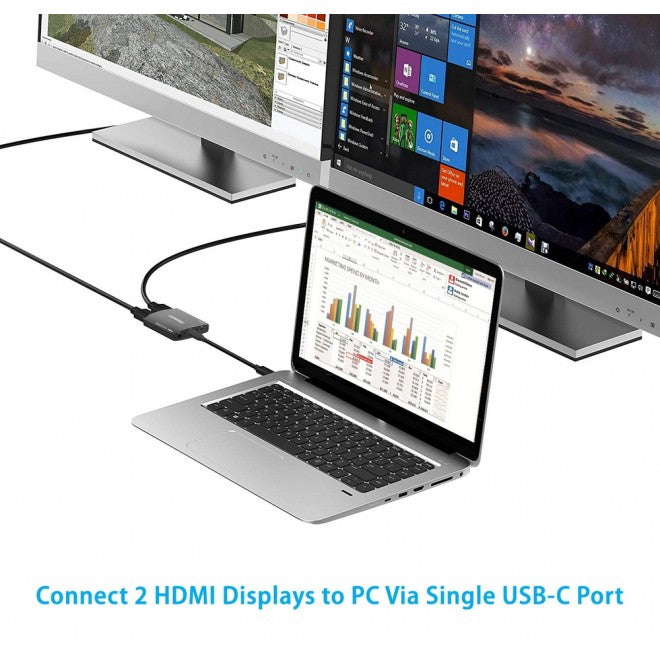

• Connect 2 HDMI displays to your computer through a single USB-C port
• Support 2 mirrored screens or 2 extended screens
• Significantly increase productivity by adding multiple screens
• Support resolutions up to 4K@60Hz when single display is connected
• Support resolutions up to 4K@30Hz when two displays are connected
• Power Delivery supports up to 100W charging via the USB-C port
• 3.5mm headphone jack for audio output
• Plug and Play, no driver or software required
• Aluminum casing, durable and better heat dissipation
• MST supports Windows only, MacOS supports one extended screen only

Specifications

• Material: Aluminum
• Connection Ports: 2xHDMI, 3.5mm Audio, USB-C, USB-C PD
• HDMI Resolution (1 Display): Support up to 3840x2160 at 60Hz (4K@60Hz)
• HDMI Resolution (2 Displays): Support up to 3840x2160 at 30Hz (4K@30Hz)
• PD Charging: 1x USB-C Female (for charging only), up to 100W
• Operation Temperature: 0 - 50°C
• Cable Length: 10cm approx.
• Dimension: 6.2cm x 5.2cm x 1.5cm

System Requirements

• Available USB-C port with DP Alt Mode (DisplayPort Alternate Mode) support
• Windows 8 or above is required for MST and 2 Extended Screen support
• MacOS does not support MST technology and will only support one extended output

Important Note

• Before purchasing, please confirm the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports only work for charging or data transfer, no video output function
• 4K@60Hz resolution only can be supported when single display is connected
• The USB-C Female port is for PD Charging only, not for data transfer
• Please connect power delivery adapter when power is not enough
