Description
Features
- i24 is a gigabit dual-band ceiling access point that compliant with IEEE 802.11ac Wave 2, and offers a concurrent data rate up to 1167 Mbps.
- Powered by MU-MIMO technology, letting you enjoy better experience. And the built-in omni-directional antennas broaden the wireless coverage of a single AP. In addition, you are allowed to adjust its transmit power as required using the web UI, and use an IEEE 802.3at-compliant PoE
- Up to 1317 Mbps dual-band data rate, and the 1000 Mbps Ethernet port let you enjoy ultra-fast internet connections
- Allows clients that support either 2.4 GHz or 5 GHz band , or both to connect to it at the same time, tripling the quantity of connected clients of traditional single-band AP
- Featuring air interface scheduling, it could evenly allocate air interface resources, thus improving your wireless network speed as a whole by preventing clients with low data rate from consuming too much network resources
- You are allowed to set multiple SSIDs, and enabled to add VLAN tags for SSIDs with the IEEE 802.11q VLAN-compliant feature so as to protect the security of your network
- You can use an IEEE 802.3at-compliant PoE sourcing equipment, or a DC power adapter to power on it
Hardware
| Dimension | 178 × 178 × 38mm |
| Ethernet Interface | 1x 10/100/1000 Base TX |
| Antenna |
2.4GHz: 2 x 4dBi 5GHz: 2 x 4dBi |
| Button | 1x Reset |
| LED Indicator | 1x SYS |
| Max Power Consumption | <11.5W |
| Power Supply Standard |
802.3af/at and DC: 12V 1A
|
Wireless
| Frequency Band | 2.4GHz |
| Data Rate |
2.4GHz: 300Mbps 5GHz: 867Mbps |
| Wireless Standard | 802.11a/b/g/n/ac(wave2) |
| Channel Width | - |
| Max Transmit Power |
2.4GHz: 23dBm 5GHz: 23dBm |
| Sensitivity |
802.11b :-93 dBm 2.4 GHz 802.11n (MCS7):-73dBm 5 GHz 802.11a :-93 dBm 5 GHz 802.11n (MCS7) :-74 dBm |
Software
| MU-MIMO | Support |
| Operating Mode | AP/Client AP |
| Hide SSID | Support |
| Max No of SSID |
2.4GHz: 8 5GHz: 4 |
| Max Connected Clients | 256 |
| WEB | Support |
| 802.11 k/v | |
| TWT | |
| Beamforming | |
| OFDMA | |
| WPA-PSK | Support |
| WPA2-PSK | Support |
| WP3-ASE | |
| WPA | Support |
| WPA2 | Support |
| Access Control | Support |
| Adjustable Power Transmit | Support |
| AF Isolation | Support |
| Frequency Analysis | |
| Connected Clients Control | Support |
| RSSI Threshold | Support |
| WMM | Support |
| VLAN Tagging for SSID | Support |
| LED Control | Support |
| Diagnostics | Support |
| Schedule Reboot | Support |
| Reboot at specified interval | Support |
| Centralized Management | Support |
| System Logs | Support |
| Firmware upgrade | Support |
| Reboot | Support |
| Reset Button | Support |
| Backup configuration | Support |
| Restore configuration | Support |
Others
| Default login IP | 192.168.0.254 |
| Default Login Username | admin |
| Default Login Password | admin |
| Operation Temperature | -10℃ ~ 40℃ |
| Operating humidity | 10%~90% non-condensing |
| Storage temperature | -30℃ ~ 70℃ |
| Storage humidity | 10%~90% non-condensing |
Description
Features
- i24 is a gigabit dual-band ceiling access point that compliant with IEEE 802.11ac Wave 2, and offers a concurrent data rate up to 1167 Mbps.
- Powered by MU-MIMO technology, letting you enjoy better experience. And the built-in omni-directional antennas broaden the wireless coverage of a single AP. In addition, you are allowed to adjust its transmit power as required using the web UI, and use an IEEE 802.3at-compliant PoE
- Up to 1317 Mbps dual-band data rate, and the 1000 Mbps Ethernet port let you enjoy ultra-fast internet connections
- Allows clients that support either 2.4 GHz or 5 GHz band , or both to connect to it at the same time, tripling the quantity of connected clients of traditional single-band AP
- Featuring air interface scheduling, it could evenly allocate air interface resources, thus improving your wireless network speed as a whole by preventing clients with low data rate from consuming too much network resources
- You are allowed to set multiple SSIDs, and enabled to add VLAN tags for SSIDs with the IEEE 802.11q VLAN-compliant feature so as to protect the security of your network
- You can use an IEEE 802.3at-compliant PoE sourcing equipment, or a DC power adapter to power on it
Hardware
| Dimension | 178 × 178 × 38mm |
| Ethernet Interface | 1x 10/100/1000 Base TX |
| Antenna |
2.4GHz: 2 x 4dBi 5GHz: 2 x 4dBi |
| Button | 1x Reset |
| LED Indicator | 1x SYS |
| Max Power Consumption | <11.5W |
| Power Supply Standard |
802.3af/at and DC: 12V 1A
|
Wireless
| Frequency Band | 2.4GHz |
| Data Rate |
2.4GHz: 300Mbps 5GHz: 867Mbps |
| Wireless Standard | 802.11a/b/g/n/ac(wave2) |
| Channel Width | - |
| Max Transmit Power |
2.4GHz: 23dBm 5GHz: 23dBm |
| Sensitivity |
802.11b :-93 dBm 2.4 GHz 802.11n (MCS7):-73dBm 5 GHz 802.11a :-93 dBm 5 GHz 802.11n (MCS7) :-74 dBm |
Software
| MU-MIMO | Support |
| Operating Mode | AP/Client AP |
| Hide SSID | Support |
| Max No of SSID |
2.4GHz: 8 5GHz: 4 |
| Max Connected Clients | 256 |
| WEB | Support |
| 802.11 k/v | |
| TWT | |
| Beamforming | |
| OFDMA | |
| WPA-PSK | Support |
| WPA2-PSK | Support |
| WP3-ASE | |
| WPA | Support |
| WPA2 | Support |
| Access Control | Support |
| Adjustable Power Transmit | Support |
| AF Isolation | Support |
| Frequency Analysis | |
| Connected Clients Control | Support |
| RSSI Threshold | Support |
| WMM | Support |
| VLAN Tagging for SSID | Support |
| LED Control | Support |
| Diagnostics | Support |
| Schedule Reboot | Support |
| Reboot at specified interval | Support |
| Centralized Management | Support |
| System Logs | Support |
| Firmware upgrade | Support |
| Reboot | Support |
| Reset Button | Support |
| Backup configuration | Support |
| Restore configuration | Support |
Others
| Default login IP | 192.168.0.254 |
| Default Login Username | admin |
| Default Login Password | admin |
| Operation Temperature | -10℃ ~ 40℃ |
| Operating humidity | 10%~90% non-condensing |
| Storage temperature | -30℃ ~ 70℃ |
| Storage humidity | 10%~90% non-condensing |

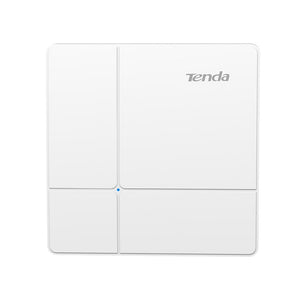

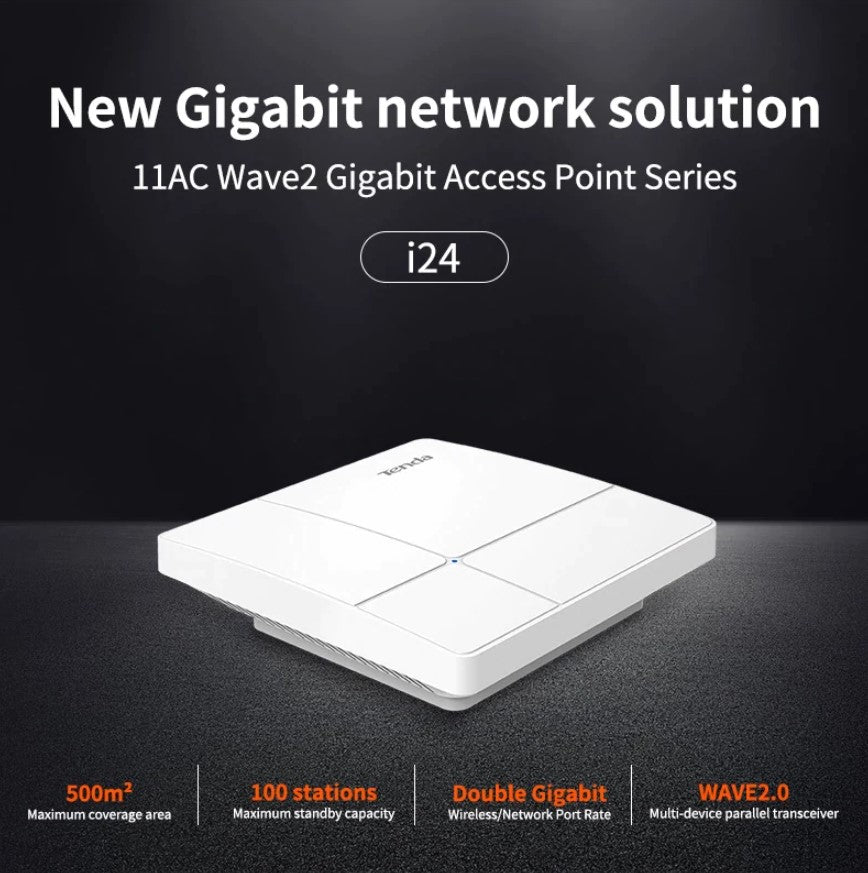

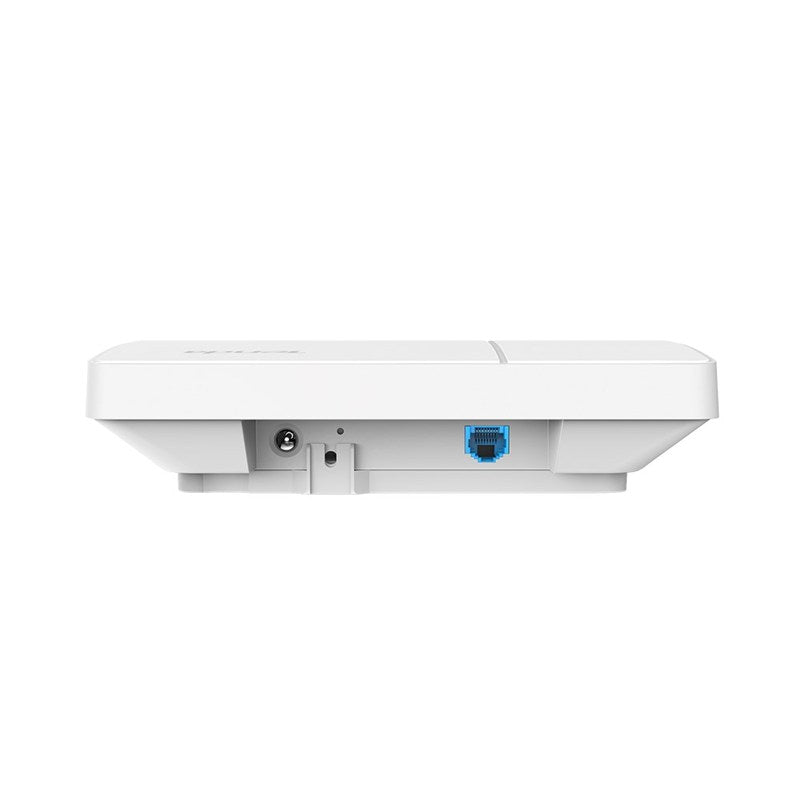

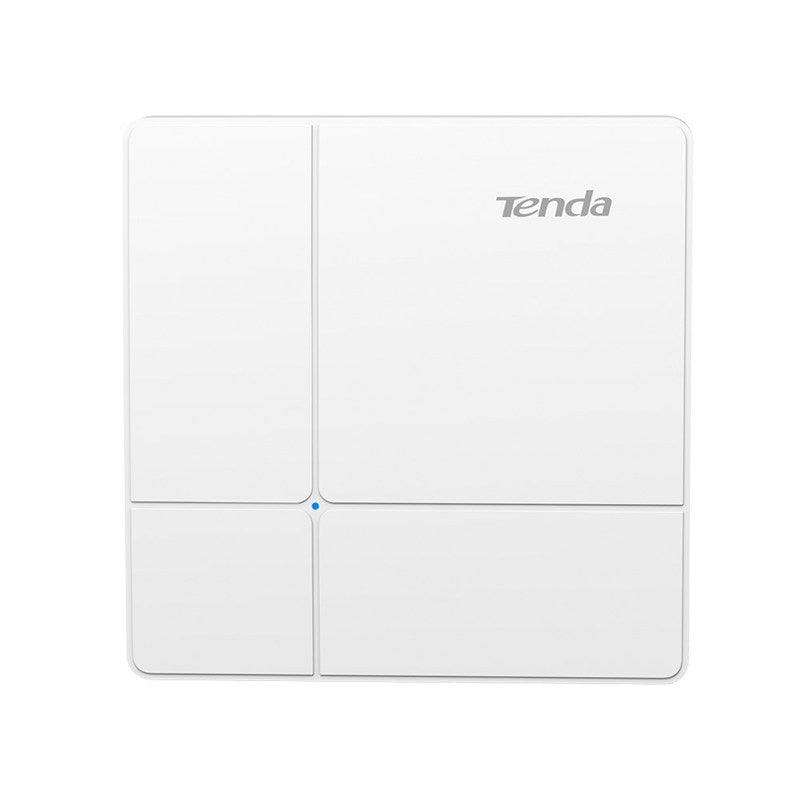

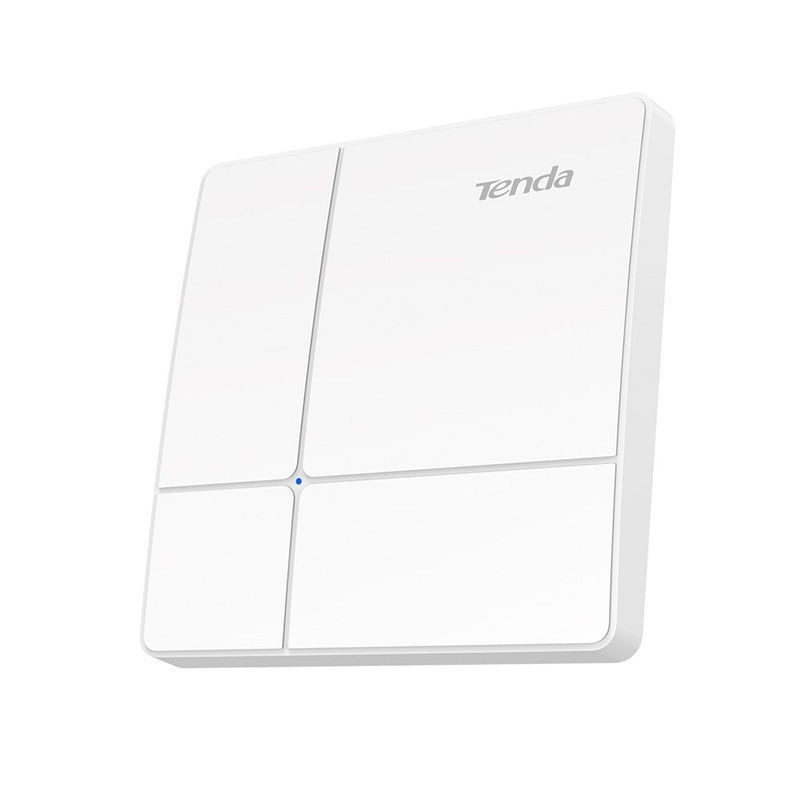

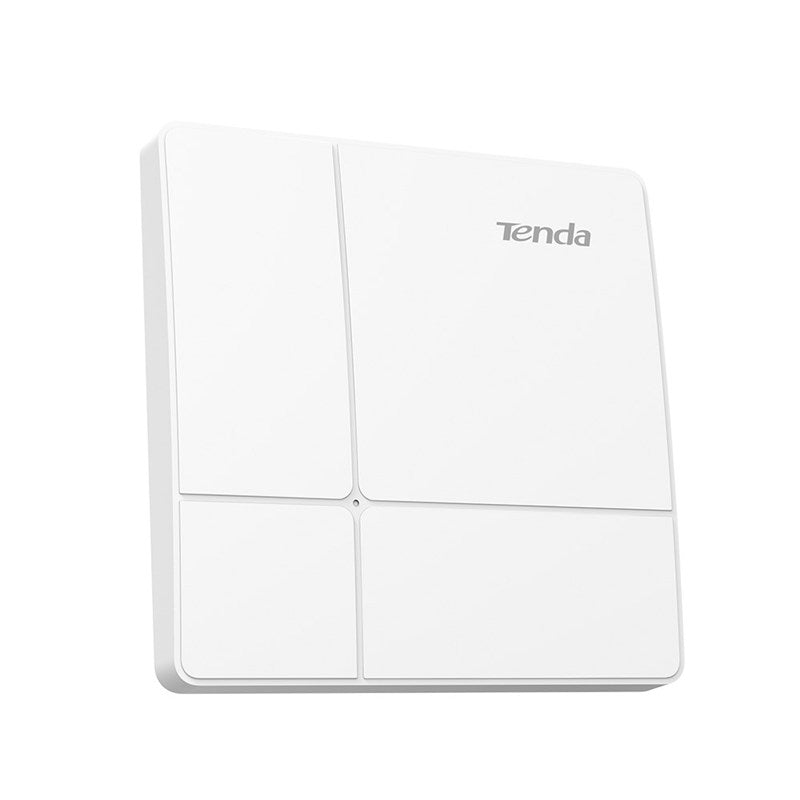

Tenda i24 AC1200 Dual Band Gigabit Access Point
- Regular price
- $114.95
- Sale price
- $114.95
- Regular price
-
Tax included.
Shipping calculated at checkout.
FREE Shipping from NSW
Shipped from Sydney, NSW
