Description

Features

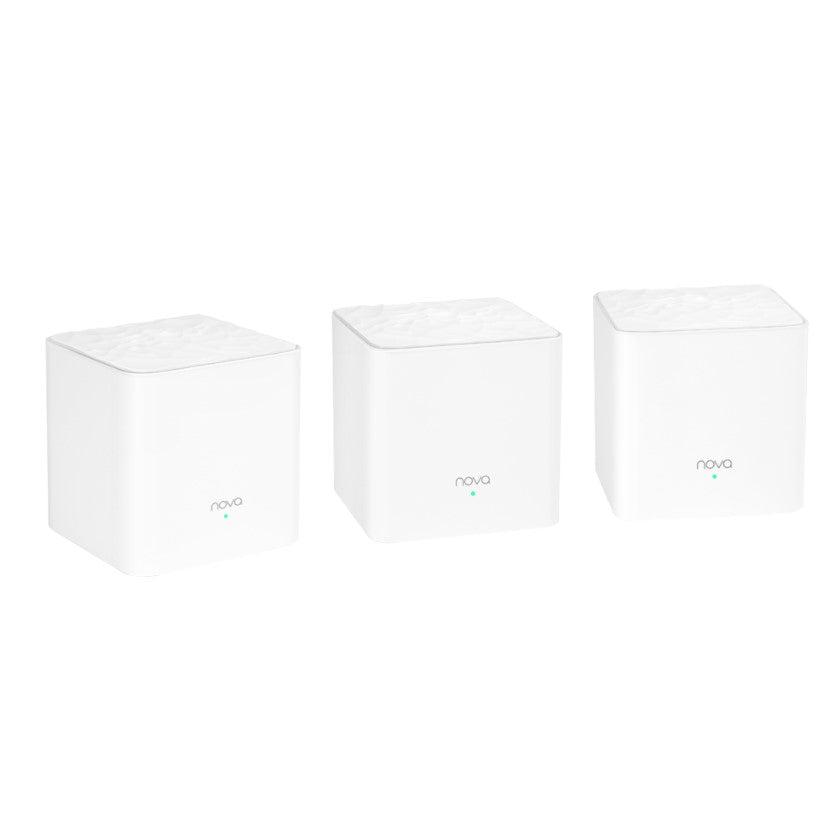

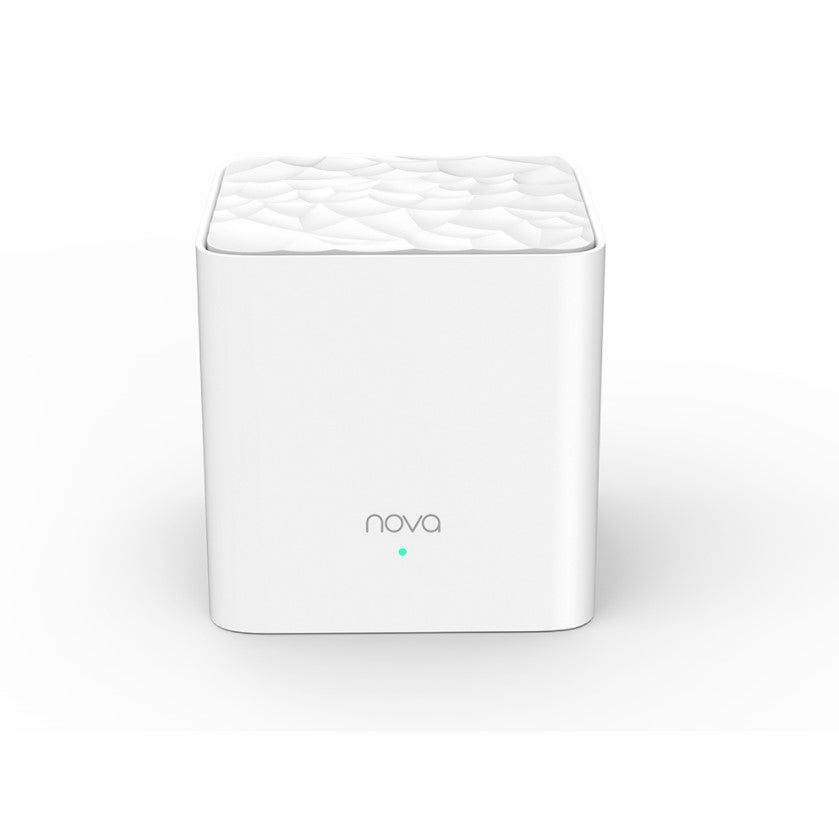

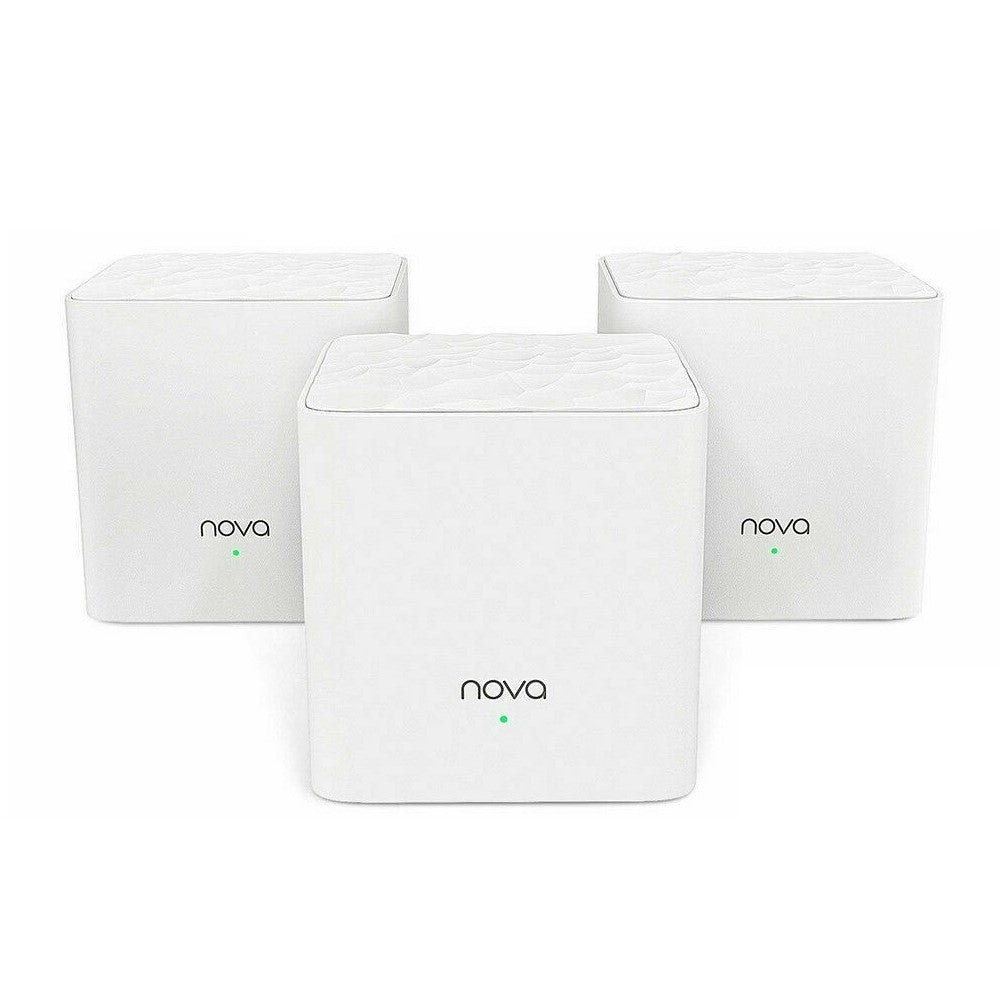

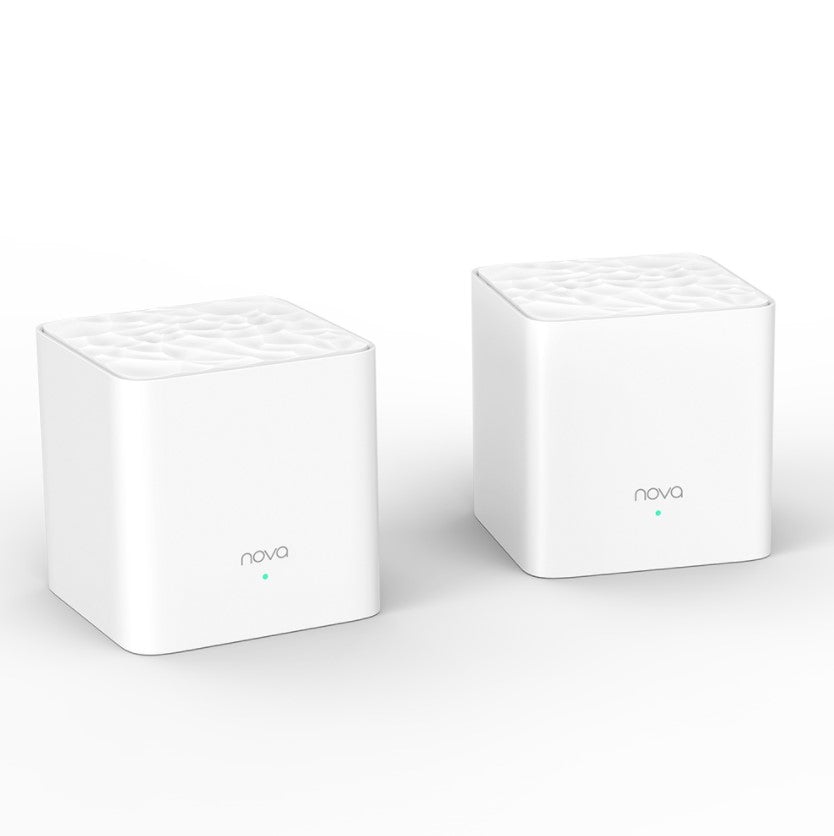

MW3 is a 1200Mbps dual band distribution mesh WiFi system designed for 100-300㎡ houses, bringing you with whole home WiFi coverage, as well as fast and stable internet connection.
Compliant with IEEE 802.11v and IEEE 802.11r seamless roaming protocols, MW3 supports automatic network optimization and automatic routing selection, allowing you to enjoy more stable and flexible wireless network
With mesh technology, MW3 creates a distributed WiFi network that covers up to 200㎡, eliminating WiFi dead zones at your home
MU-MIMO technology, MW3 supports more WiFi-enabled devices. And the smart QoS intelligently allocates bandwidth to ensure smooth streaming, gaming, downloading and uninterrupted video chat at the same time
With one single SSID and password, MW3 automatically performs handover without interrupting services to ensure that the devices are always connected to the WiFi network with stronger signals
MW3 offers a data rate up to 1200Mbps and prioritizes 5 GHz network access, allowing you to enjoy lag-free 4K HD videos
Pre-paired from factory settings makes setup of MW3 a breeze, letting you go from burden of cabling connections
Easily manage your Tenda ecosystem through the Tenda app

Specifications

Hardware Features

Standards: IEEE802.3, IEEE802.3u

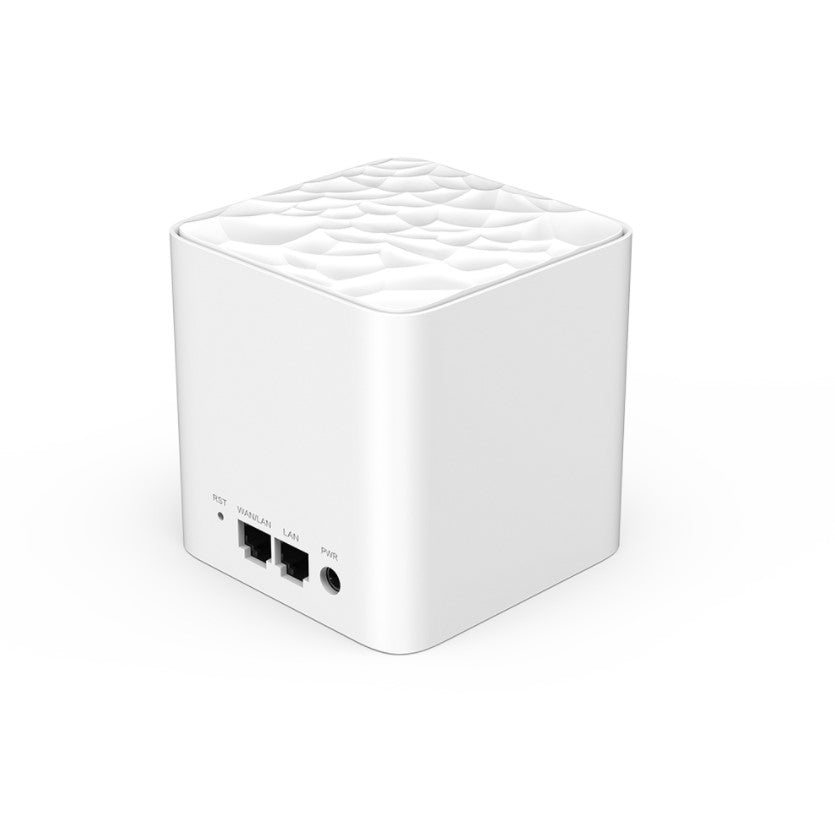

Interface: 2 Fast Ethernet ports per mesh node; WAN and LAN on primary mesh node; Both act as LAN ports on additional mesh nodes

Antenna: 2 × 3dBi internal dual band antennas

Button: 1 reset button

Power Input: 100-240V-50/60Hz 0.3A

Dimensions: 90 x 90 x 90mm

Wireless Features

Wireless Standards: IEEE 802.11ac/a/n 5GHz, IEEE 802.11b/g/n 2.4GHz

Wireless Frequency: 2.4G: 2400MHz-2483MHz; 5G: 5150MHz-5250MHz or 5725MHz-5825MHz

Data Rate: 5GHz: Up to 867Mbps; 2.4GHz: Up to 300Mbps

Frequency: Simultaneous dual band 2.4GHz & 5GHz

Basic Features: SSID Broadcast / Beamforming

wireless Security: Mixed WPA/WPA2-PSK(default)

Wireless roaming: Comply with IEEE802.11v/r

Software Features

Internet Connection Type: PPPoE, Dynamic IP, Static IP, Bridge Mode

DHCP Server: DHCP Server / DHCP Client List

Virtual Server: Port Forwarding UPnP

QoS: Support Smart QoS

Firewall: Forbid UDP flood attack / Forbid TCP flood attack / Forbid ICMP flood attack

DNS: Support manually setting DNS server

VPN: IPsec pass through / PPTP pass through / L2TP pass through

Others: Parental Control / Guest Network / Firmware upgrade online / Reset to factory settings

Setup Requirements: A mobile device running Android 4.0+ or iOS 8+

Others

Operating Temperature: 0°C ~ 40°C

Storage Temperature: -40°C ~ 70°C

Operating Humidity: 10% ~ 90% RH non-condensing

Storage Humidity: 5% ~ 90%RH non-condensing

Certificates: FCC, CE, RoHS, EAC, IC
