Product Features

Features

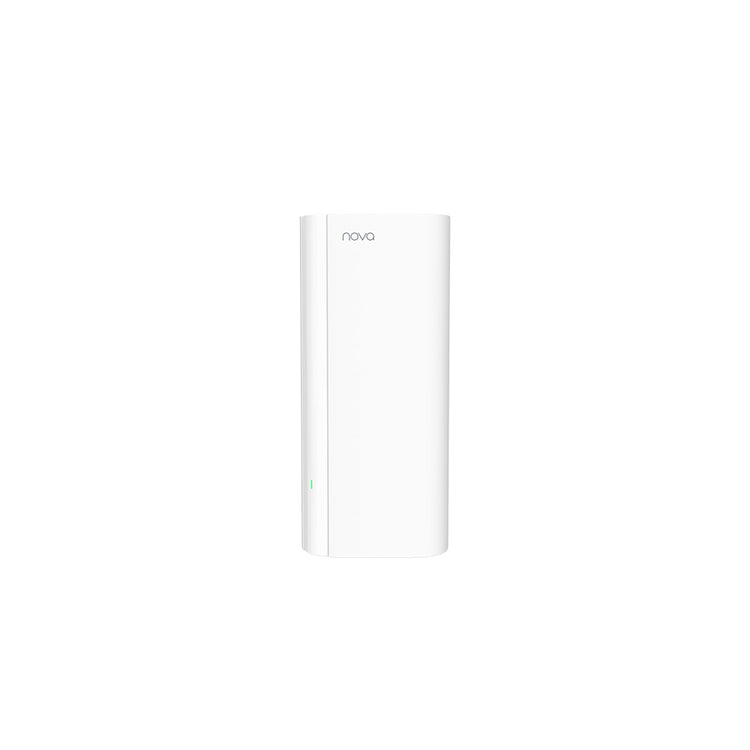

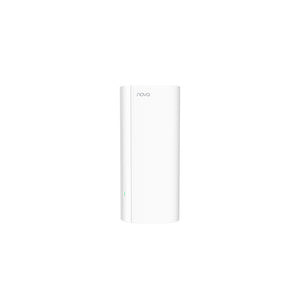

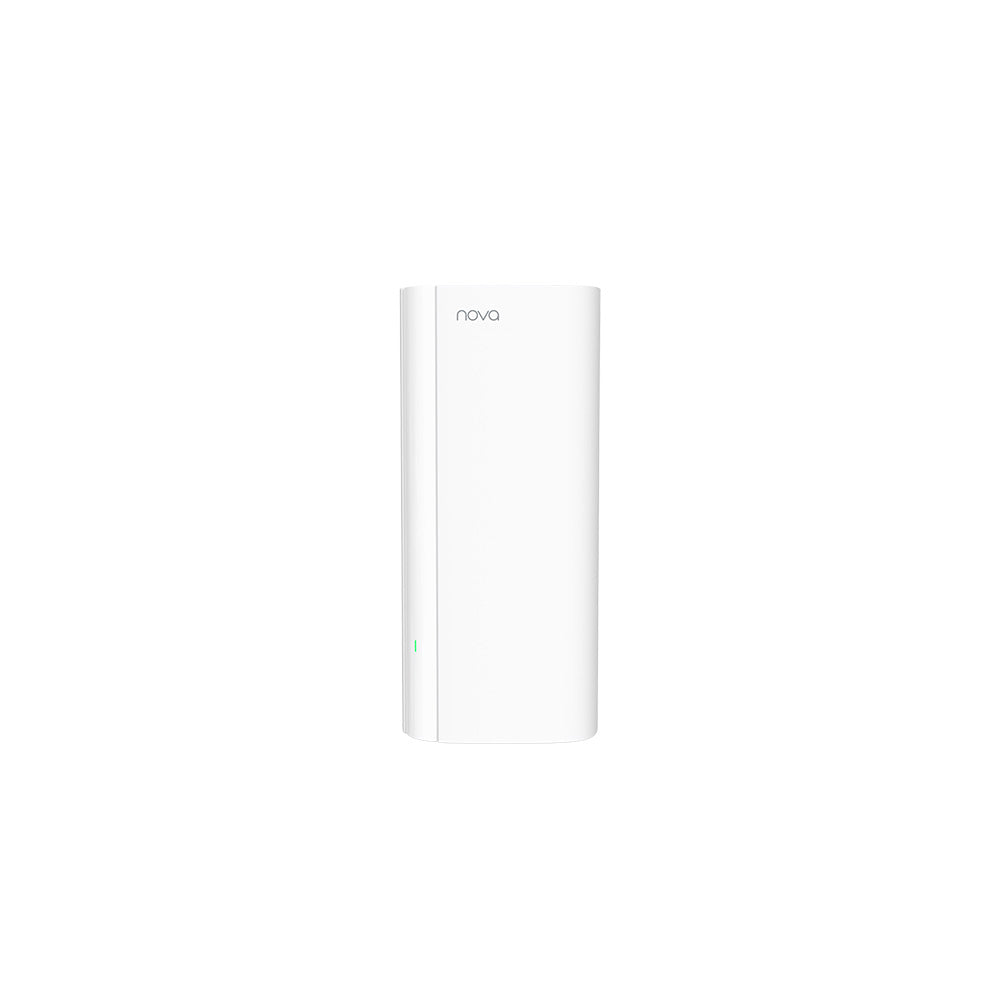

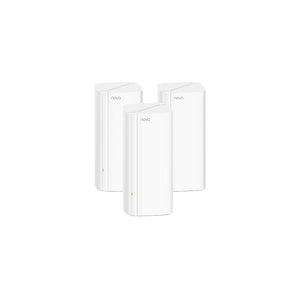

The Nova MX12 is an AX3000 Whole Home Mesh Wi-Fi 6 System. MX12 delivers solid Wi-Fi coverage for up to 7,000 ft² with four independent wireless amplifiers and beamforming technology
Powerful 1.7GHz 4-core CPU and 256 MB large memory, which can handle more terminal device access. All terminals can simultaneously enjoy high-speed Wi-Fi, low latency for online games, and smooth 4K video and VR HD applications
Support 160MHz ultra-large bandwidth, and use with mobile phones that support 160MHz bandwidth, allowing signals to come and go freely on a wider track, 5G signal frequency band speed is up to 2402Mbps, and the Internet experience is more fun

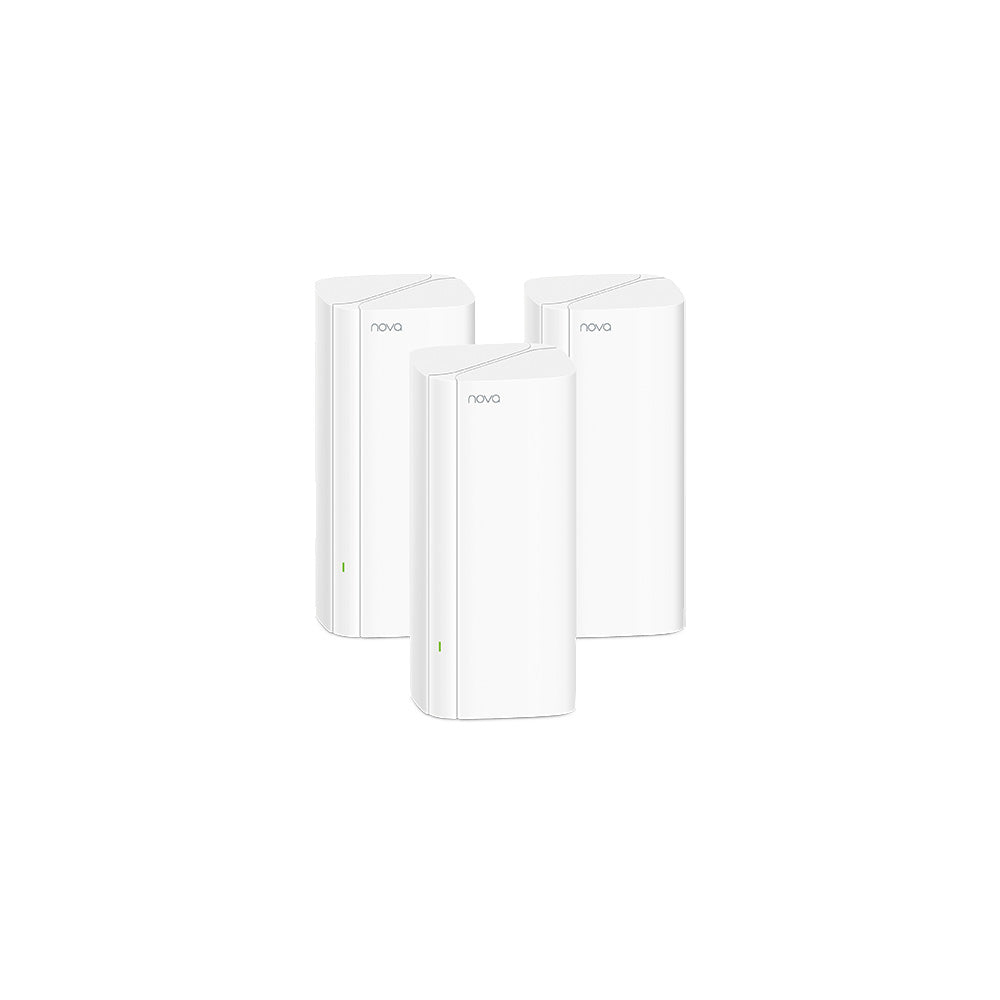

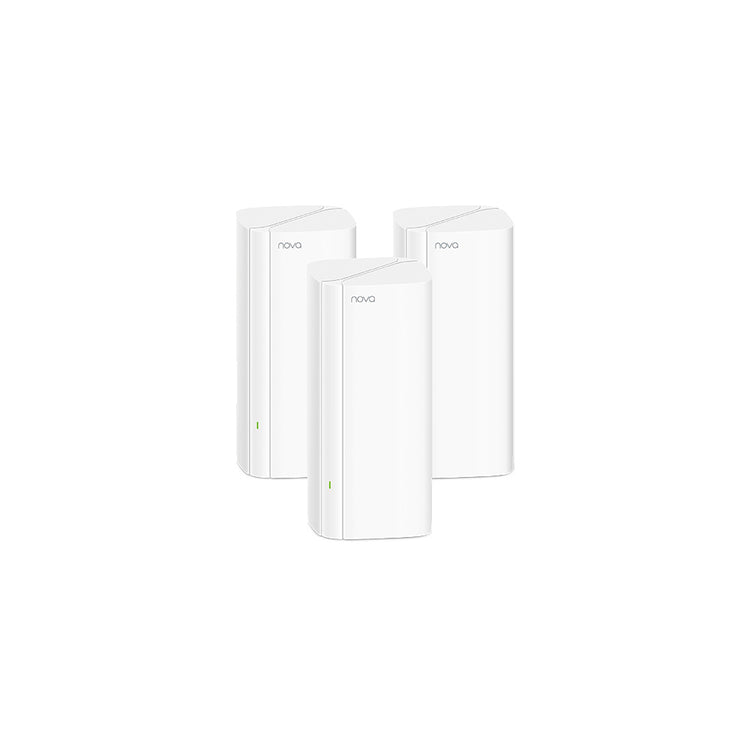

With 4 independent wireless amplifiers and beamforming technology, MX12 provides stronger, stabler signal penetration. This is capable of blasting through three walls with one node and expanding whole home Wi-Fi coverage to up to 7,000 ft² from the front door to the backyard with three nodes
MX12 units work together under one unified network supported by 802.11k/v protocol and AP steering technology, creating seamless roaming experiences. Your devices will automatically connect to the best node as you move around in your house
Just plug an additional MX12 and it will automatically connect with each other to form a Mesh network. No wiring to enjoy more coverage
Through Tenda WiFi App, you can easily control your whole house network and equipments, and remotely manage it anytime, anywhere. MX12 also supports in-depth management of web pages, making the functions you want simple
With MU-MIMO and OFDMA technology, efficient Wi-Fi performance and reduction of latency are enabled, making simultaneous connection with over 160 devices simple and easy

Specification

Hardware Features

Standard and Protocol	IEEE802.11a/b/g/n/ac/ax IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

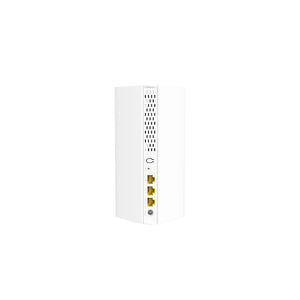

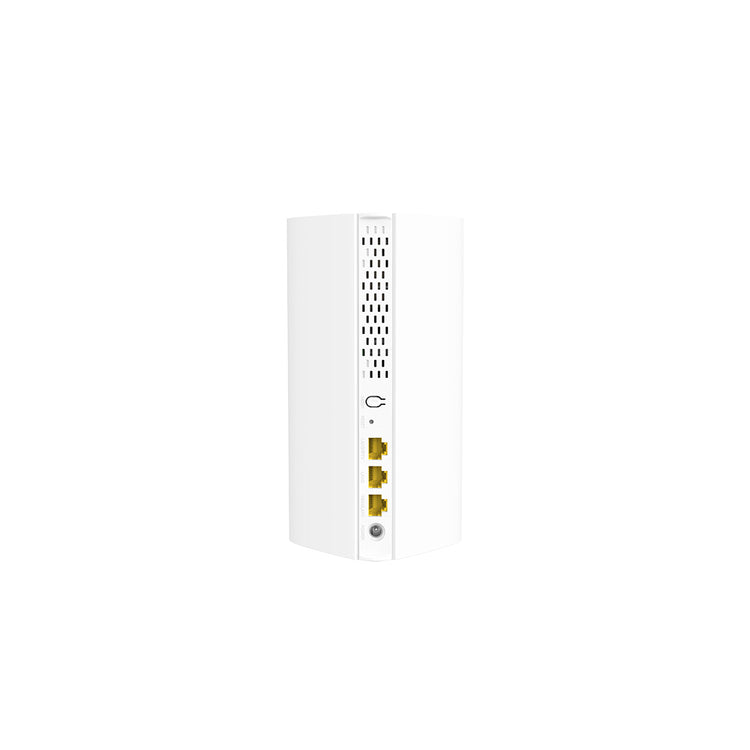

Ethernet Interface	3 x 10/100/1000Mbps RJ45 ports per node
Antenna	4 x 3dBi Internal antenna
Button	1 x Reset Button 1 x MESH Button
Power	Input: AC 100-240V, 50/60Hz Output: DC 12 V ⎓ 1.5 A
Dimension	86x86x190mm (3.39 x3.39 x 7.48 in)
LED Indicator	1 x Tri-color LED Indicator(Green,Yellow,Red)

Wireless Features

Wireless Standard	IEEE802.11a/b/g/n/ac/ax
Wireless Roaming	Comply with IEEE802.11k/v
Mesh Network	Wi-Fi EasyMesh
Rate	2.4GHz: 574Mbps (802.11ax) 5GHz: 2402Mbps (802.11ax)
Frequency	CE: 2.4G: 2412-2472MHz(CH1-CH13) 5G: 5150-5350MHz(CH36-CH64) FCC: 2.4G: 2412-2462MHz(CH1-CH11) 5G: 5150-5350MHz(CH36-CH64) 5725-5850MHz(CH149-CH165)
Transmission Power	CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz)
Basic Features	Beam Forming MU-MIMO AP Steering Band Steering OFDMA 1024-QAM
Wireless Security	WPA3-SAE/WPA2-PSK

Software Features

Operating Mode	Router Mode,AP Mode
Internet Connection Type	PPPoE, Dynamic IP, Static IP PPPoE(Russia), PPTP(Russia), L2TP(Russia)
DHCP Server	DHCP Server, DHCP Client List
Virtual Server	Port Forwarding, UPnP
Parental Control	Client Filter
Firewall	Forbid TCP/UDP flood attack
VPN	PPTP/L2TP/IPsec pass through
DNS	Support manually setting DNS server
Special Features	Ethernet Backhaul IPv6 IPTV
Others	Support App and web management Guest Network Firmware upgrade online

Others

Operating Temperature	0 ~ 40 ℃
Storage Temperature	-40 ~ 70 ℃
Operating Humidity	10%~90% RH non-condensing
Storage Humidity	5%~90% RH non-condensing
APP Installation	Available in iOS 8.0 or later, Android 4.0 or later
Certification	CE, FCC, RoHS,EAC,IC
Package Contents	Power adapter x 2, QIG x 1, RJ45 Gigabit Ethernet cable x 1
