Description

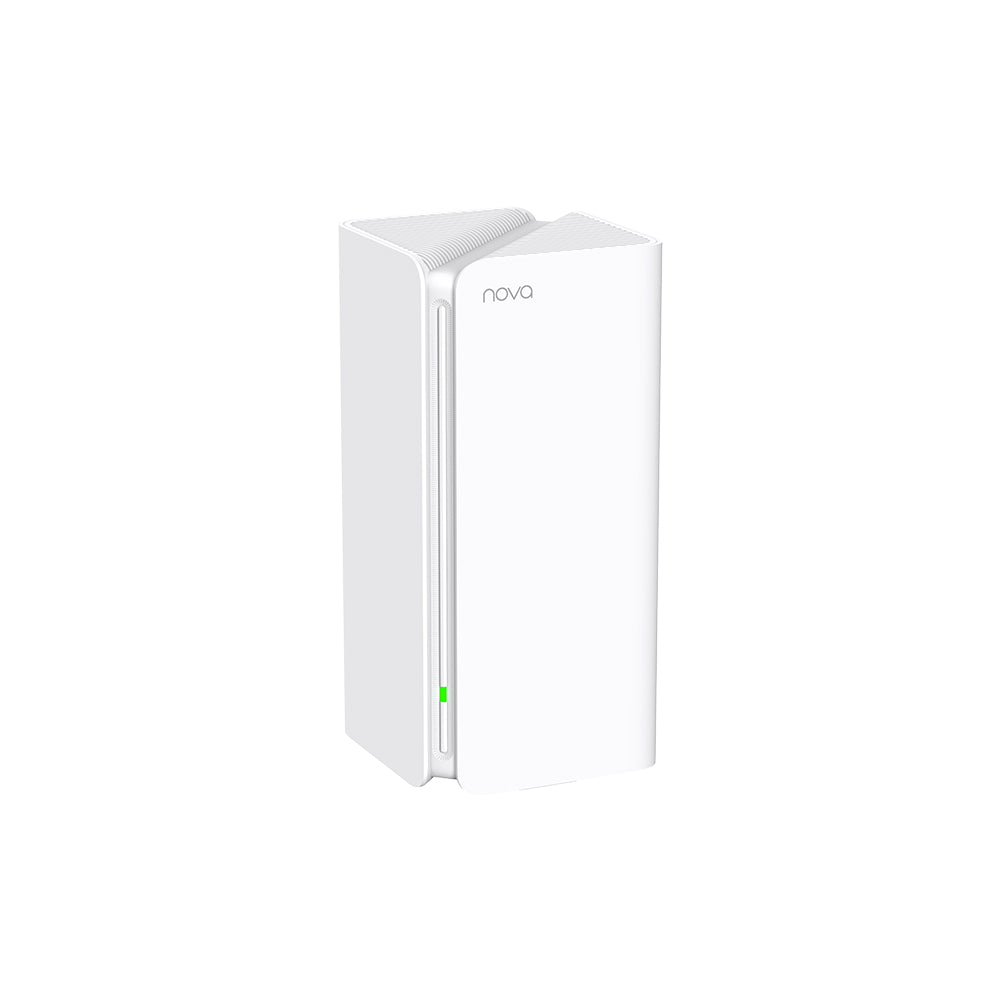

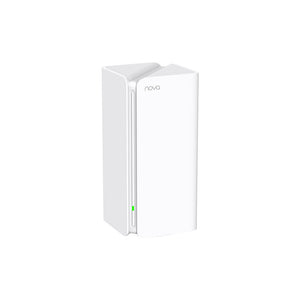

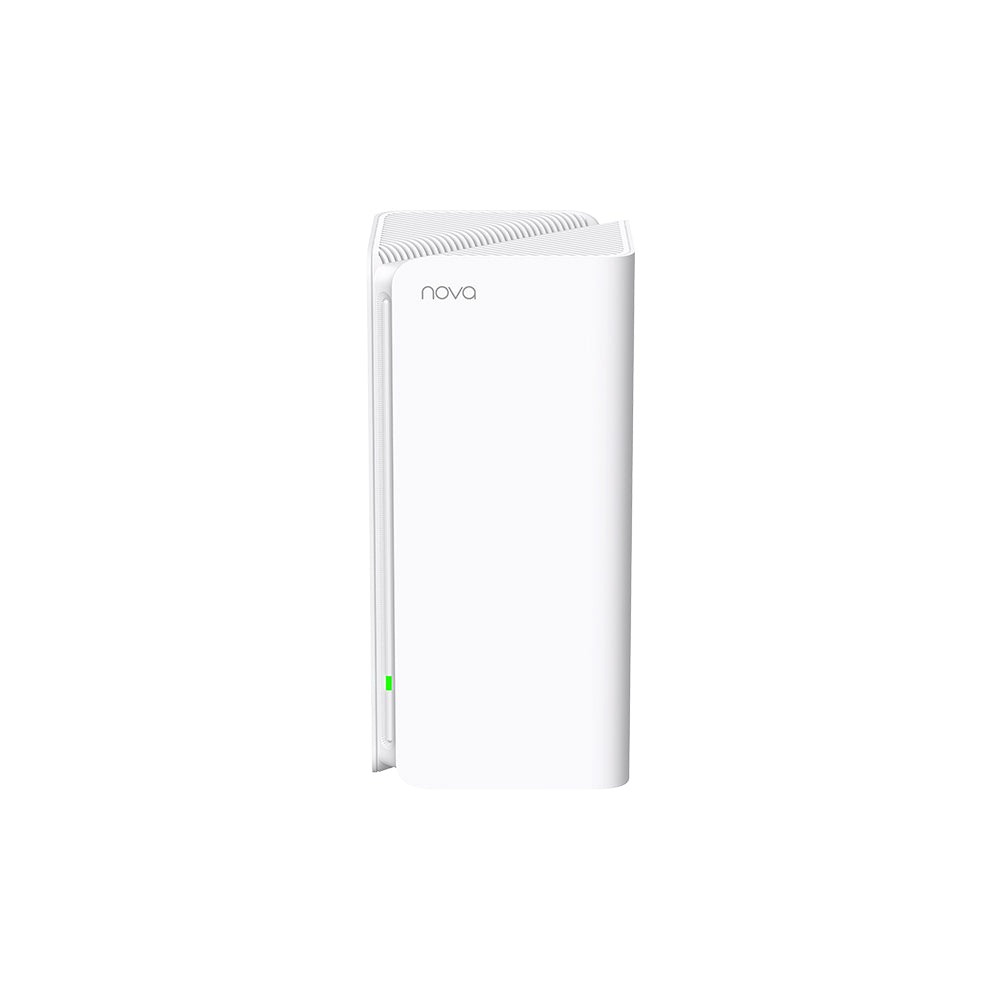

MX15 Pro is a mesh Wi-Fi system designed to provide high-speed internet service for medium to large homes. It creates a distributed network with multiple nodes throughout your home by Tenda Mesh technology, the 3-pack MX15 Pro is capable of covering an area of 7,300 ft².
MX15 Pro supports the newest Wi-Fi 6 technology, 160MHz bandwidth and gigabit port, the dual-band speed is up to 5378Mbps, which makes full use of your high-speed broadband.
Equipped with powerful 3-core Broadcom chip and 256MB memory, MX15 Pro supports 4×4 MU-MIMO technology, more than 200 devices can be connected simultaneously, you can enjoy high-speed Wi-Fi6, ultra-low latency gaming, 8K video and VR HD applications.
MX15 Pro is easy to install, supporting automatic networking and one-click Mesh, Providing your home with a high-speed and intelligent Mesh wireless network system.
The intelligent array antennas after signal adjustment ensure that the signal cross-layer penetration is better than ordinary home routers.
OFDMA+MU-MIMO improves the efficiency of channel resources. Multiple user data can be transmitted in parallel simultaneously
Multiple user data can be transmitted in parallel simultaneously, solving the delay troubles of multiple people surfing the internet at the same time
MX15 Pro can automatically recognize the modem connection type to reduce setup steps. Installation can be done with just a few clicks. Built-in Pre-connection, You only need to set up one node, and the others will connect automatically

Specification

Hardware Features

Standard and Protocol	IEEE802.11a/b/g/n/ac/ax IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

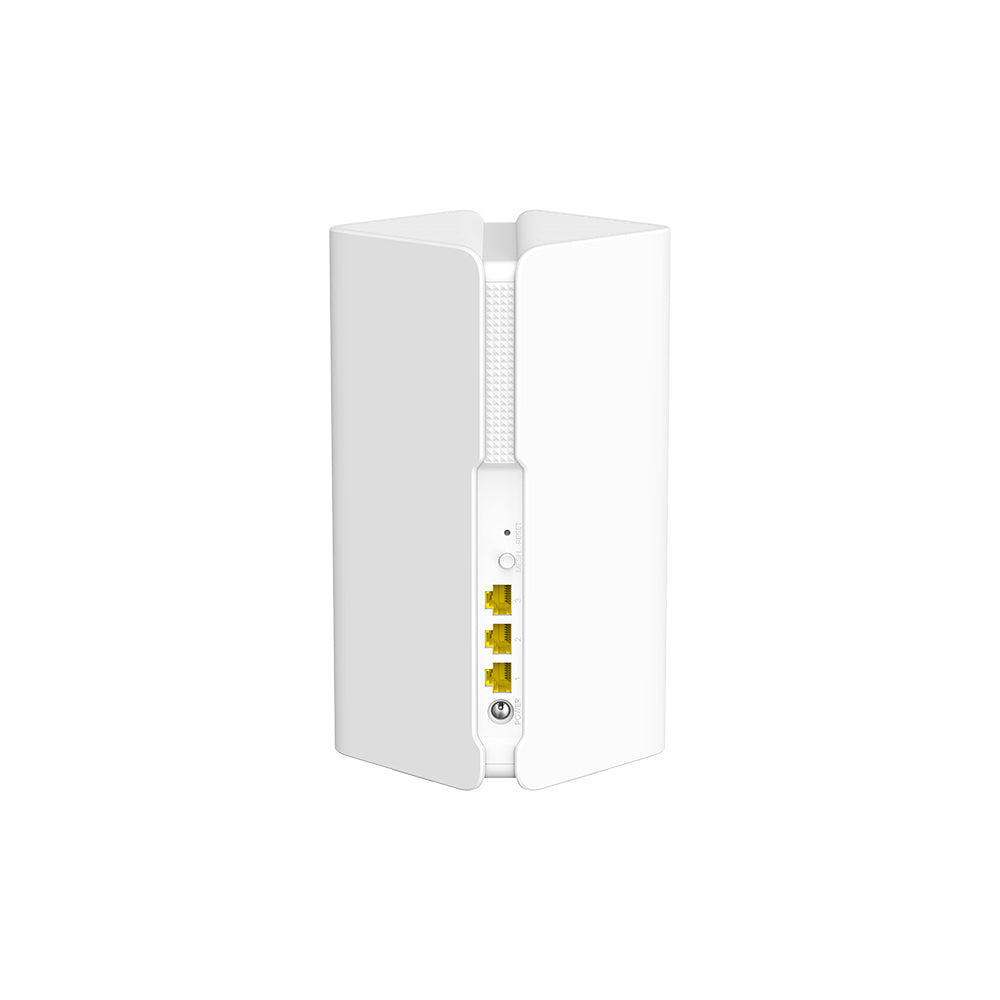

Ethernet Interface	3 x 10/100/1000Mbps RJ45 ports per node
Antenna	4 x 3dBi Internal antenna
Button	1 x Reset Button 1 x MESH Button
Power	Input: AC 100-240V, 50/60Hz Output: DC 12 V ⎓ 1.5 A
Dimension	105x105x200mm（4.13x4.13x7.87）
LED Indicator	1 x Tri-color LED Indicator(Green,Yellow,Red)

Wireless Features

Wireless Standard	IEEE802.11a/b/g/n/ac/ax
Wireless Roaming	Comply with IEEE802.11k/v
Mesh Network	Wi-Fi EasyMesh
Rate	2.4GHz: 574Mbps (802.11ax, HE160) 5GHz: 4804Mbps (802.11ax)
Frequency	CE: 2.4G: 2412-2472MHz(CH1-CH13) 5G: 5150-5350MHz(CH36-CH64) FCC: 2.4G: 2412-2462MHz(CH1-CH11) 5G: 5150-5350MHz(CH36-CH64) 5725-5850MHz(CH149-CH165)
Transmission Power	CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz)
Basic Features	Beam Forming MU-MIMO AP Steering Band Steering OFDMA 1024-QAM
Wireless Security	WPA2-PSK WPA3-SAE/WAP2-PSK

Software Features

Operating Mode	Router Mode,AP Mode
Internet Connection Type	PPPoE, Dynamic IP, Static IP PPPoE(Russia), PPTP(Russia), L2TP(Russia)
DHCP Server	DHCP Server, DHCP Client List
Virtual Server	Port Forwarding, UPnP
Parental Control	Client Filter URL Filter Time Limit
Firewall	Forbid TCP/UDP flood attack
VPN	PPTP/L2TP/IPsec pass through
DNS	Support manually setting DNS server
Special Features	Ethernet Backhaul IPv6 IPTV
Others	Support App and web management Guest Network Firmware upgrade online

Others

Operating Temperature	0 ~ 40 ℃
Storage Temperature	-40 ~ 70 ℃
Operating Humidity	10%~90% RH non-condensing
Storage Humidity	5%~90% RH non-condensing
APP Installation	Available in iOS 8.0 or later, Android 4.0 or later
Certification	CE, FCC, RoHS,EAC,IC
Package Contents	Mesh15X, Power adapter x 1, QIG x 1, RJ45 Gigabit Ethernet cable x 1
