Description

MX21 Pro is a mesh Wi-Fi system designed to provide high-speed internet service for medium to large homes. It creates a distributed network with multiple nodes throughout your home - the 3-pack MX21 Pro is capable of covering an area of 680㎡/7,300ft².
Supports the newest Wi-Fi 6E technology,160MHz bandwidth and gigabit port,the tri-band speed is up to 5665Mbps
Equipped with a powerful Quad-Core Broadcom chip and 256MB memory,more than 200 devices can be connected simultaneously,you can enjoy high-speed network, ultra-low latency gaming, 8K video and VR HD applications.
Easy to install, supporting automatic networking and one-click Mesh, providing your home with a high-speed and intelligent mesh wireless network system.
Supporting the Next-Gen Wi-Fi 6E technology and 160MHz ultra-large bandwidth, its tri-band concurrent speed is up to 5665 Mbps.
With the new 6G frequency band, which greatly reduces network congestion and signal interference, providing a wireless network with the fastest transmission and lowest-ever latency.
Armed with 7 independent wireless amplifers and Beamforming technology, its more stable and penetrable,which can blast through three walls with one node and expand whole-home Wi-Fi coverage to 520㎡ /5600ft² with two nodes, eliminating all the dead zone of your house.
Armed with a 1.7GHz Quad-Core Broadcom high-performance CPU, its computing power has increased by 174% compared with the regular dual-core chips, so you can enjoy a faster and more stable network.
It's easy to set up, multiple nodes will connect each other automatically and extend the wireless network for your whole home.
MX21 Pro units work together to form one unified network which provides you a seamless roaming experience, your terminal devices will choose the best node automatically as you move around in your house.

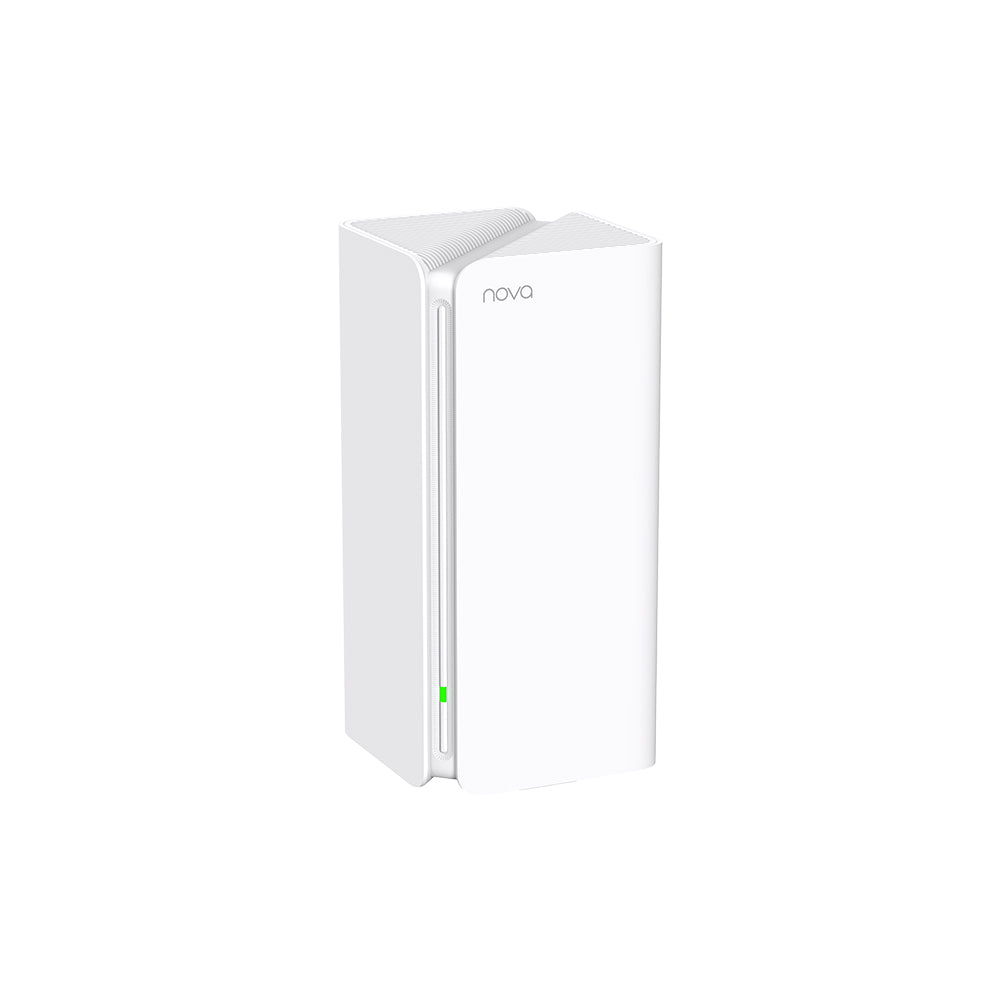

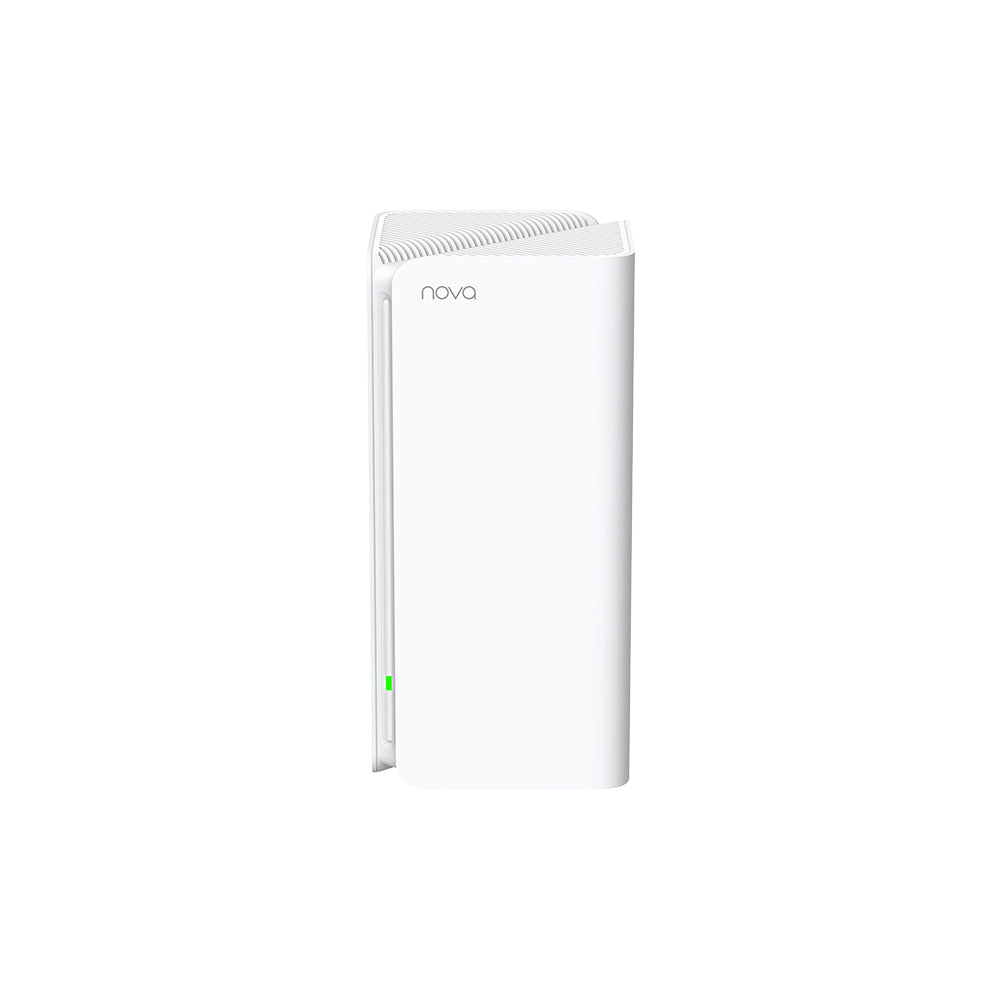

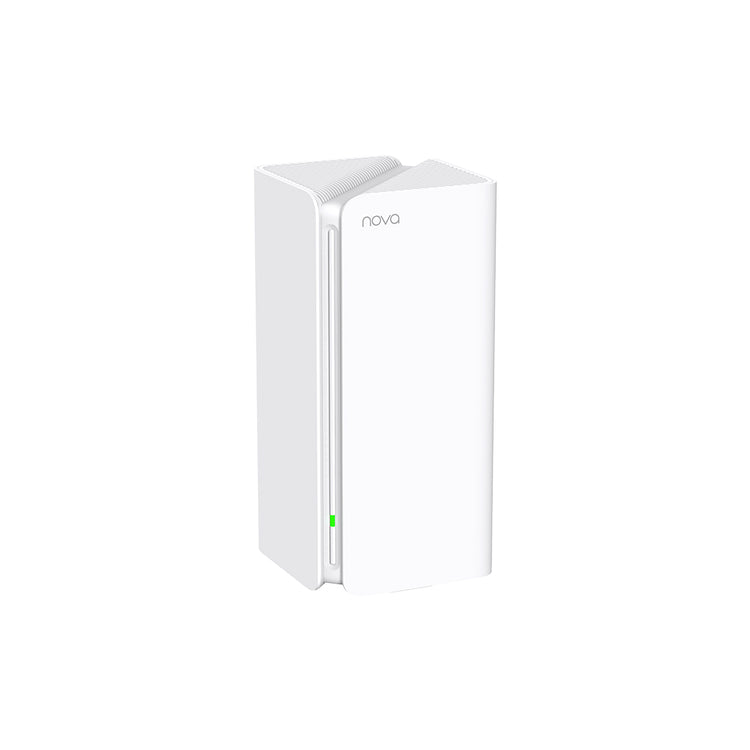

Ivory white design, simple household style. It is not only a router but also a work of art, decorate your house with the delicate case.

Specification

Hardware Features

Standard and Protocol	IEEE802.11a/b/g/n/ac/ax IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

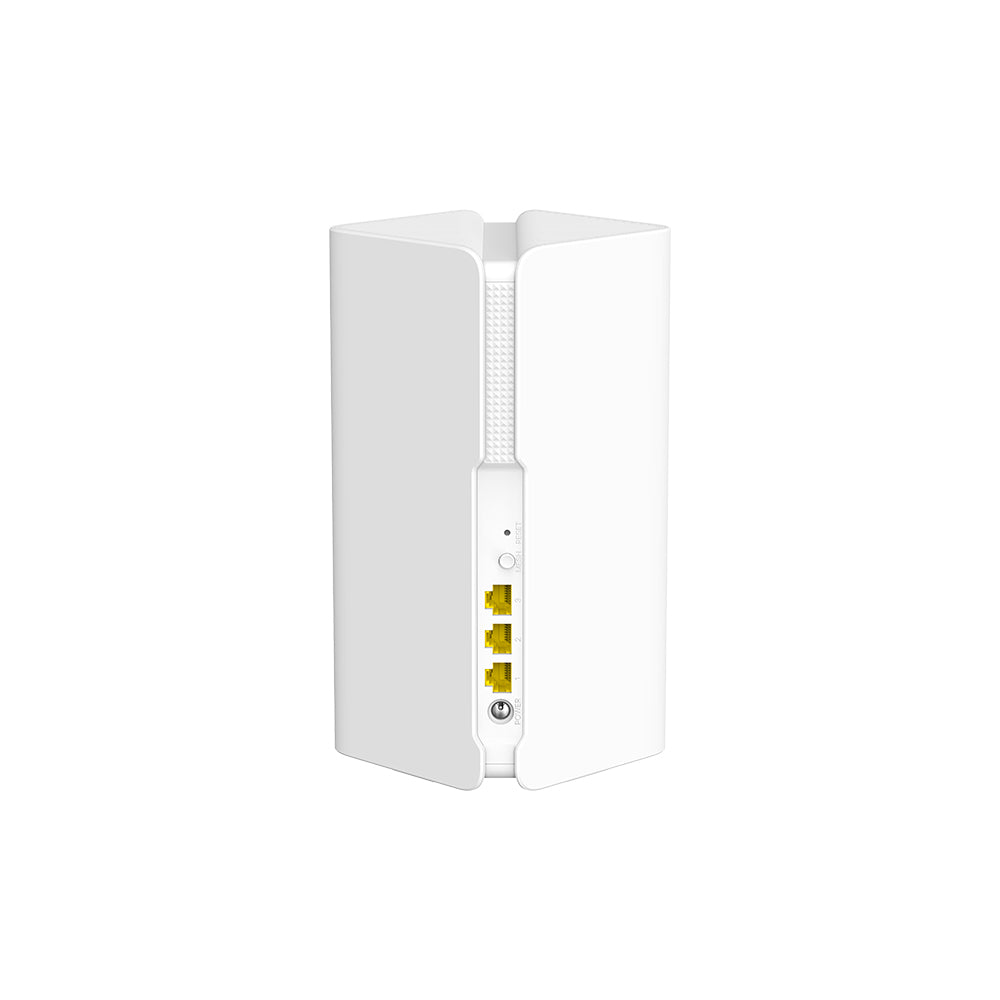

Ethernet Interface	3 x 10/100/1000Mbps RJ45 ports per node
Antenna	7 x Built-in Antennas
Button	1 x Reset Button 1 x MESH Button
Power	Input: AC 100-240V, 50/60Hz Output: DC 12 V ⎓ 1.5 A
Dimension	105x105x220mm (4.13 x4.13 x 8.66 in)
LED Indicator	1 x Tri-color LED Indicator(Green,Yellow,Red)

Wireless Features

Wireless Standard	6GHz: IEEE 802.11ax 5GHz: IEEE 802.11ax/ac/n/a 2.4GHz: IEEE 802.11ax/n/b/g
Wireless Roaming	Comply with IEEE802.11k/v/r
Mesh Network	Easymesh
Rate	6GHz: 2402Mbps (802.11ax, HE160) 5GHz: 2402Mbps (802.11ax, HE160) 2.4GHz: 861Mbps (802.11ax)
Frequency	2.4GHz & 5GHz & 6GHz
Transmission Power	CE: <20dBm(2.4G) <23dBm(5G) <23dBm(6G)
Basic Features	MU-MIMO OFDMA 1024-QAM Beamforming AP Steering Band Steering
Wireless Security	WPA2-PSK WPA3-SAE/WAP2-PSK

Software Features

Operating Mode	Wireless Router Mode AP Mode
Internet Connection Type	PPPoE, Dynamic IP, Static IP PPPoE(Russia), PPTP(Russia), L2TP(Russia)
DHCP Server	DHCP Server, DHCP Client List
Virtual Server	Port Forwarding, UPnP
Parental Control	Client Filter URL Filter Time Limit
Firewall	CMP Flood Attack Defense TCP Flood Attack Defense UDP Flood Attack Defense Ignore Ping Packet From WAN Port
VPN	PPTP/L2TP/IPsec pass through
DNS	Support manually setting DNS server
Special Features	Speed Test Monthly Report
Others	IPTV IPv6 Tri Frequency In One Bandwidth Control Guest Network Static Routing System Log Remote Web Management MAC Clone Backup & Restore Configurations Support Automatic Access Detection Firmware Upgrade Online

Others

Operating Temperature	0 ~ 40 ℃
Storage Temperature	-40 ~ 70 ℃
Operating Humidity	10%~90% RH non-condensing
Storage Humidity	5%~90% RH non-condensing
APP Installation	Available in iOS 8.0 or later, Android 4.0 or later
Certification	CE, FCC, RoHS,EAC,IC
Package Contents	Mesh21XEP, 12/2.5A Power adapter x 1, QIG x 1, RJ45 Gigabit Ethernet cable x 1
