Description
Features
- O1 2.4GHz Outdoor CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission.
- It features with 8dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network. Adopt of auto-bridging technology,two CPE can connect to each other automatically to make it easy to setup
- O1 integrates with a 8dBi directional antenna to provide an optimized transmission quality. It picks up and maintains a stable signal for a wireless network connection ranging up to 500 meters
- O1 adopts of auto-bridge technology,two cpe can connect to each other when you power on them face to face. It is very easy to setup
- Equipped with IP65 waterproof enclouse and high quality hardware design, O1 can work in various weather conditions, such as sunshine, rainfall or extremely low/high temperature environment
- Long-Distance Wireless Connection
One work as AP mode and another work as Station mode to create a long distance wrieless connecton for video surveillance and data transmission - WISP(Client+Router) Mode
Wirelessly connect to WISP station/hotspot to share Internet to local wireless and wired network - Three signal LED Lights represent the currently signal strength that O1 receives from peer device.It is helpful to find the right location to deploy the device and achieve a better performance
- O1 also comes with a centralized management software that helps users easily manage all the devices in their network from a single computer
Hardware
| Model | O1 |
| Dimension | 193.5*80*67.5mm |

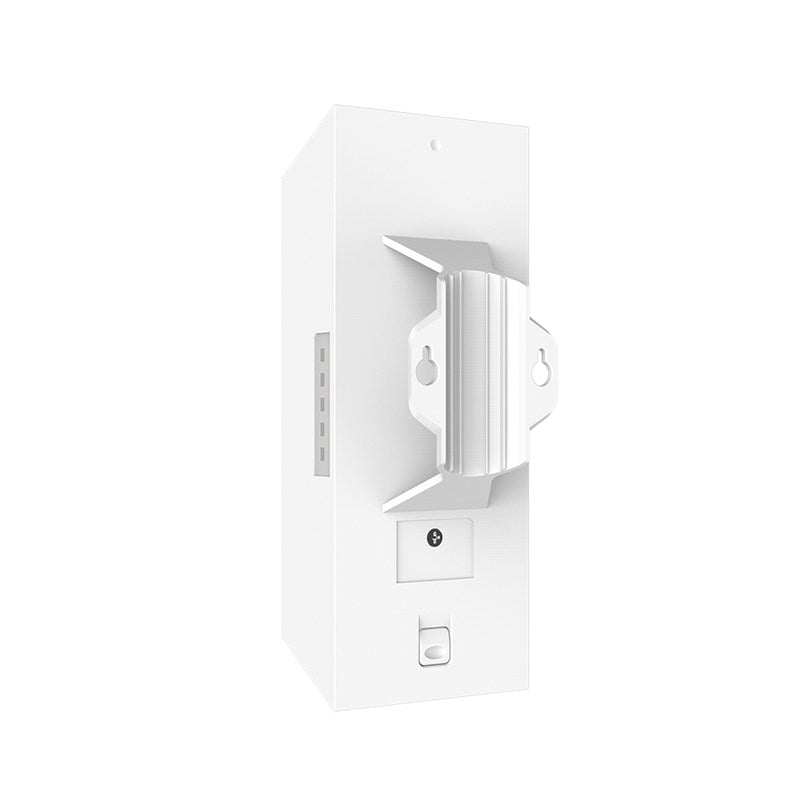

| Deployment | Pole Mount/Wall Mount |
| Application Scenarios | PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance |
Hardware
| Frequency Range | 2.4GHz |
| Compliant Standards | IEEE 802.11b/g/n |
| Maximum Wireless Rate | 300Mbps |

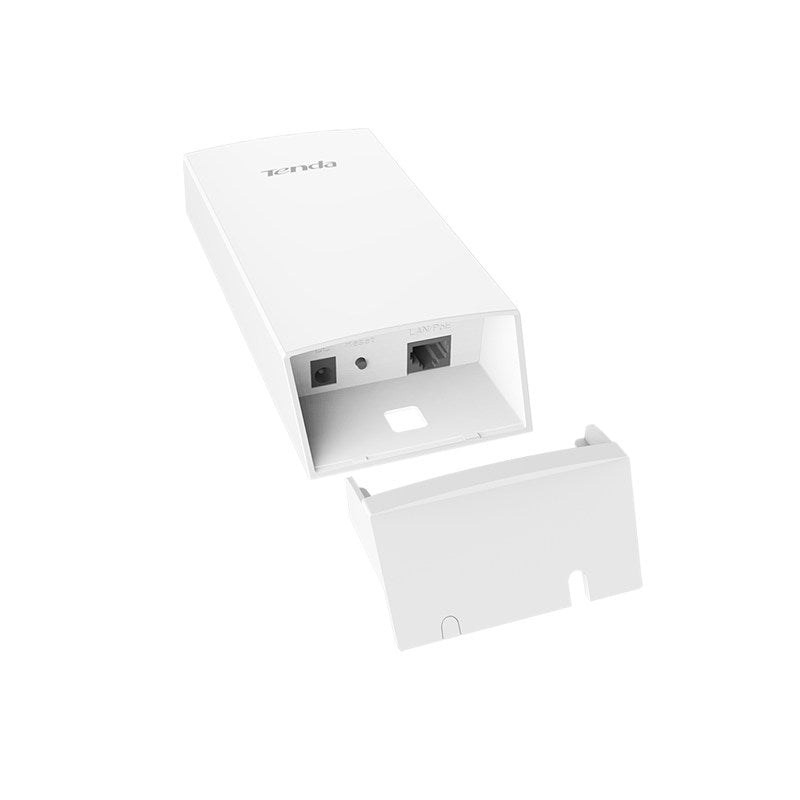

| Interfaces | 1*10/100Mbps Ethernet Port |
| Antenna | Dual Polarization |
| Antenna Gain |
8dbi |
| Antenna Beamwidth | Horizontal: 60° Vertical: 60° |
| GND | \ |
| Reset Button | 1*Reset Button |
| Power Consumption | 2.6W |
| Waterproof Level | IP65 |
| LED Indicator | PoE/LAN,WiFi, LED1,LED2,LED3 |
| Power Method |
9V0.6A Passive PoE 9V0.6A DC |
| Lightning Protection | \ |

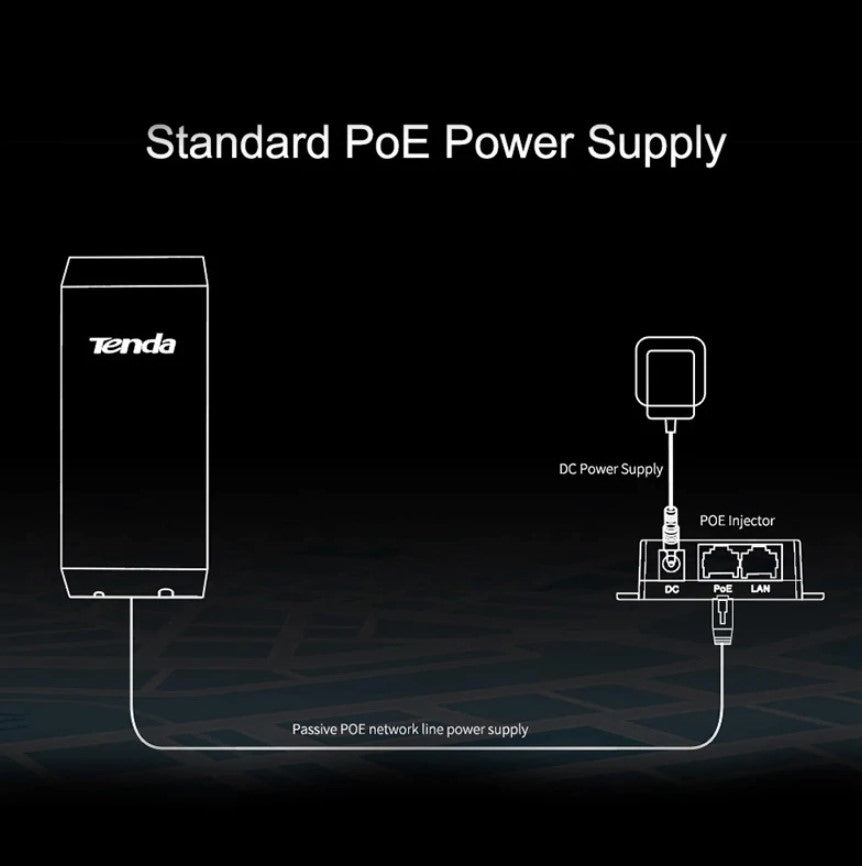

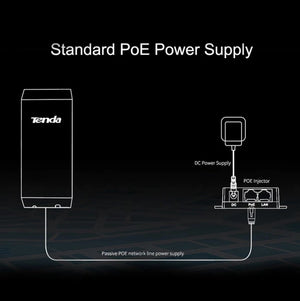

| Passive PoE |
Passive power over ethenet via PoE/LAN (+4,5pins -7,8pins) Voltage range: 9-13.8V DC |
| Reception Sensitivity |
11b 1Mbps -92dBm±1.5dBm 11n MCS0: -92±1.5dBm 11n MCS7: -72±1.5dBm |
Software
| TDMA | \ |
| Operating Mode | AP/Station/WISP |
| Enable/Disable Wireless Radio | Support |
| SSID Hidden | Support |
| Wireless Client isolation | Support |
| SSID Isolation | Support |
| Channel Bandwidth |
20/40Mhz |
| Channel Shift | \ |
| Wireless Access Control | Support |
| Weak Signal Client Limitation | Support |
| Transmission Power | Adjustable power by 1dBm |
| WMM Capable | Support |
| APSD Capable | Support |
| Wireless Security |
64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 |
| Transparent Bridge | Support |
| VLAN Tagging for SSID | Support |
| DHCP Server |
Support |
| VPN Pass-Through | PPTP,L2TP |
| Remote Web access | Support |
| Schedule Reboot | Support |
| Page Timeout | Support |
| Ping Watchdog | Support |
| Dyndns | noip, dyndns.org |
| Network Diagnoses | Ping, Traceroute, Signal Scan |
| Time and Date Setting | Support |
| Firmware upgrade | Support |
| Backup/Restore Configuration | Support |
| Username Managerment | Support |
| System Logs | Support |
| Managed By Controller | PC Software CPE Assistant |
Others
| Package Contents |
1*2.4GHz 11n 8dBi 300Mbps outdoor CPE O1 1*Power Adapter 1*PoE Injector 1*Quick Installation Guide |
| Operation Temperature | -30℃ ~55 ℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 10%~90% non-condensing |
| Default login IP | 192.168.2.1 |
| Default Login Username | admin |
| Default Login Password | admin |
| Certification | FCC/CE/RoHS |
