Description
- Purpose: Designed for outdoor wireless networking, video surveillance transmission, and broadband access in Point-to-Point (PtP) and Point-to-MultiPoint (P2MP) setups.
Key Features:
- Wireless Speed: Supports 11AC wireless technology with speeds up to 867Mbps.
- Antenna: Features a 12dBi directional antenna with an internal power amplifier for long-range signal transmission.
- Transmission Range: Supports up to 5+ km stable wireless network transmission.
Power Supply Options:
- PoE and DC Power: Supports PoE 802.3af/at, 12V 1A Passive PoE, and 12V 1A DC for flexible deployment.
Setup and Connectivity:
-
Auto-Bridge Technology:
- For single-pack, devices automatically connect after powering on.
- For kit-pack, pre-configured devices support plug-and-play without manual setup.
- Ideal for CCTV: Simplified setup for users unfamiliar with network configurations, especially for surveillance applications.
Performance Optimization:
- TD-MAX Protocol: Proprietary TDMA (Time Division Multiple Access) protocol enhances performance by coordinating data transmission, reducing latency, and increasing noise immunity for better capacity in outdoor networks.
Management:
- Centralized Management: CPE Assistant software allows easy management of all connected devices from a single PC.
Design and Protection:
- Weather-Resistant: IP65 waterproof enclosure ensures durability in various weather conditions.
- Lightning Protection: Equipped with 6000V lightning protection for added safety.
Additional Features:
- Transparent Bridge: Supports transparent bridge mode for seamless network integration.
Hardware
| Model | O4 |
| Dimension | 193*109*61mm |

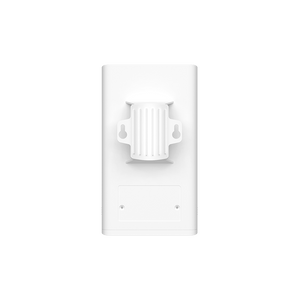

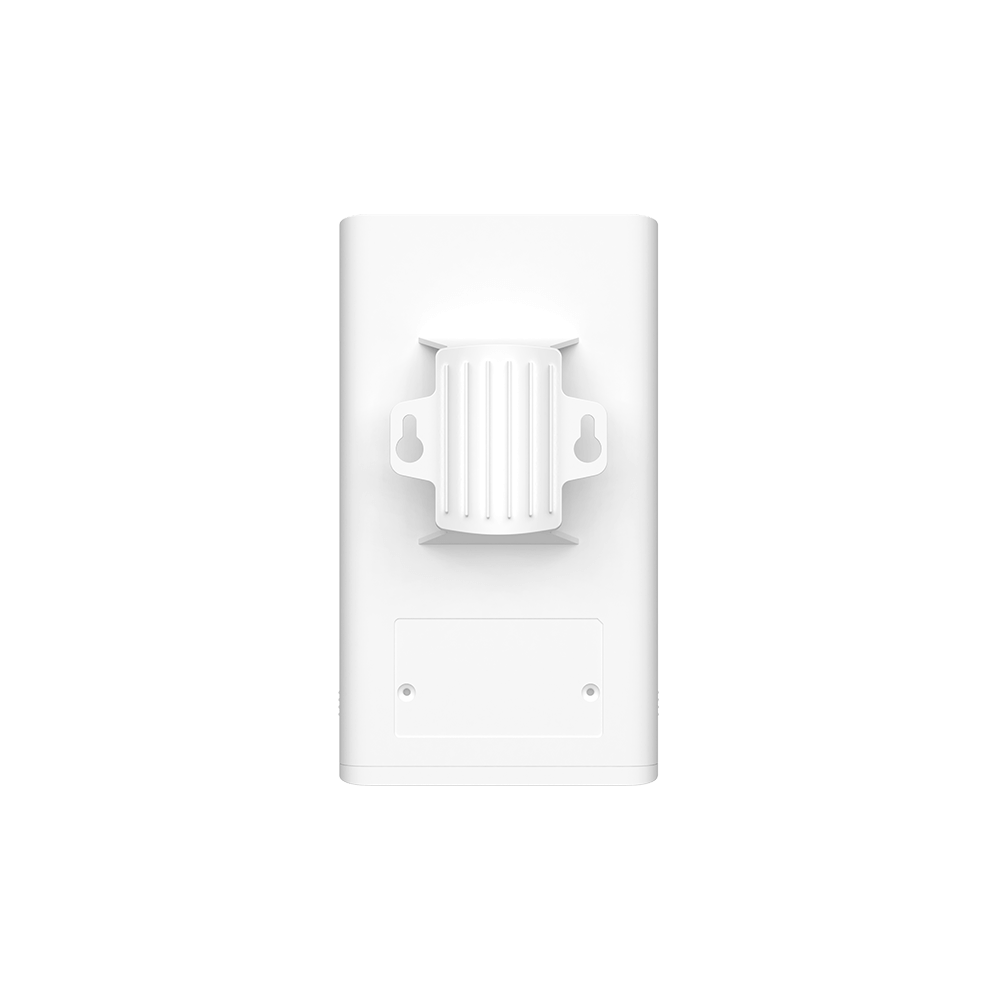

| Deployment | Pole/Wall Mount |
| Application Scenarios | PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance |
Hardware
| Frequency Range | 5GHz |
| Compliant Standards | IEEE 802.11a/n/ac |
| Maximum Wireless Rate | 867Mbps |

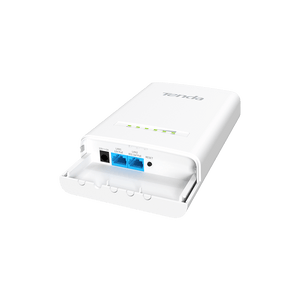

| Interfaces | 2*10/100/1000Mbps Ethernet Port |
| Antenna | Dual Polarization |
| Antenna Gain |
12dBi |
| Antenna Beamwidth | Horizontal: 30° Vertical: 30° Elevation: 30° |
| GND | 1x GND |
| Reset Button | 1*Reset Button |
| Power Consumption | 6.5W |
| Waterproof Level | IP65 |

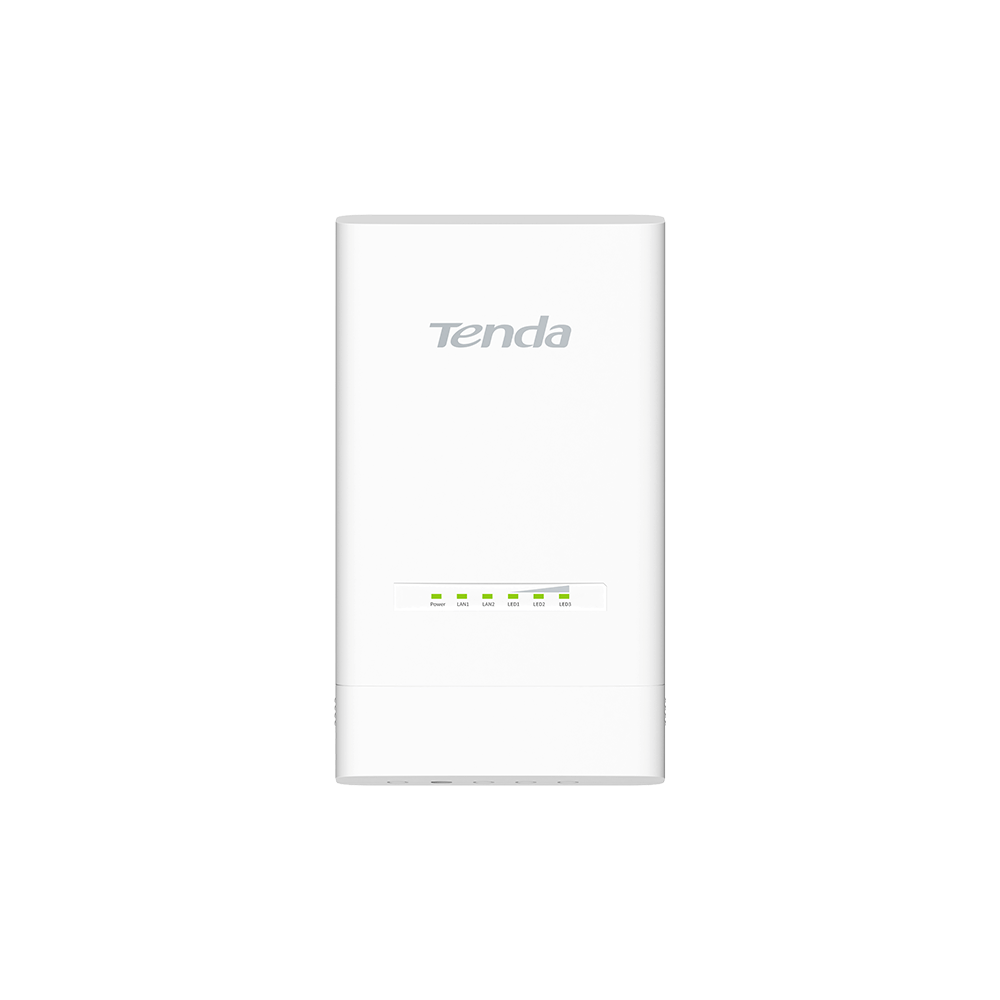

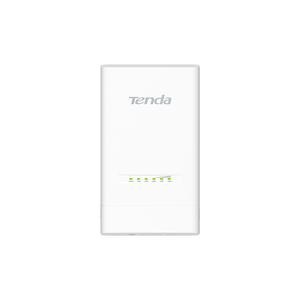

| LED Indicator | Power, LAN1, LAN2, LAN3, LED1, LED2 |
| Power Method |
PoE 802.3af/at 24V0.5A Passive PoE 12V 1A DC |
| Lightning Protection | 6000V |
| Passive PoE |
Passive power over ethernet via PoE/LAN ( 4,5pins -7,8pins ) up to 60 meters Voltage range: 21-25V DC |
| Reception Sensitivity |
11b 1Mbps -92dBm±1.5dBm 11n MCS0: -92±1.5dBm 11n MCS7: -72±1.5dBm |
Software
| TDMA | Support |
| Operating Mode | AP/Station/WISP/P2MP/WDS Repeater/Router |
| Enable/Disable Wireless Radio | Support |
| SSID Hidden | Support |
| Wireless Client isolation | Support |
| SSID Isolation | Support |
| Channel Bandwidth |
20/40/80MHz |
| Channel Shift | \ |
| Wireless Access Control | Support |
| Weak Signal Client Limitation | Support |
| Transmission Power | Adjustable power by 1dBm |
| WMM Capable | Support |
| APSD Capable | Support |
| Wireless Security |
64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 |
| Transparent Bridge | Support |
| VLAN Tagging for SSID | Support |
| DHCP Server |
Support |
| VPN Pass-Through | PPTP,L2TP |
| Remote Web access | Support |
| Schedule Reboot | Support |
| Page Timeout | Support |
| Ping Watchdog | Support |
| Dyndns | noip, dyndns.org |
| Network Diagnoses | Ping, Traceroute, Signal Scan |
| Time and Date Setting | Support |
| Firmware upgrade | Support |
| Backup/Restore Configuration | Support |
| Username Managerment | Support |
| System Logs | Support |
| Managed By Controller | PC Software CPE Assistant |
Others
| Package Contents |
1*5GHz 16dBi 11AC Gigabit Outdoor CPE 1*PoE Power Adapter 1*Quick Installation Guide |
| Operation Temperature | -30℃ ~55 ℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 10%~90% non-condensing |
| Default login IP | 192.168.2.1 |
| Default Login Username | admin |
| Default Login Password | admin |
| Certification | FCC/CE/RoHS |
Description
- Purpose: Designed for outdoor wireless networking, video surveillance transmission, and broadband access in Point-to-Point (PtP) and Point-to-MultiPoint (P2MP) setups.
Key Features:
- Wireless Speed: Supports 11AC wireless technology with speeds up to 867Mbps.
- Antenna: Features a 12dBi directional antenna with an internal power amplifier for long-range signal transmission.
- Transmission Range: Supports up to 5+ km stable wireless network transmission.
Power Supply Options:
- PoE and DC Power: Supports PoE 802.3af/at, 12V 1A Passive PoE, and 12V 1A DC for flexible deployment.
Setup and Connectivity:
-
Auto-Bridge Technology:
- For single-pack, devices automatically connect after powering on.
- For kit-pack, pre-configured devices support plug-and-play without manual setup.
- Ideal for CCTV: Simplified setup for users unfamiliar with network configurations, especially for surveillance applications.
Performance Optimization:
- TD-MAX Protocol: Proprietary TDMA (Time Division Multiple Access) protocol enhances performance by coordinating data transmission, reducing latency, and increasing noise immunity for better capacity in outdoor networks.
Management:
- Centralized Management: CPE Assistant software allows easy management of all connected devices from a single PC.
Design and Protection:
- Weather-Resistant: IP65 waterproof enclosure ensures durability in various weather conditions.
- Lightning Protection: Equipped with 6000V lightning protection for added safety.
Additional Features:
- Transparent Bridge: Supports transparent bridge mode for seamless network integration.
Hardware
| Model | O4 |
| Dimension | 193*109*61mm |
| Deployment | Pole/Wall Mount |
| Application Scenarios | PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance |
Hardware
| Frequency Range | 5GHz |
| Compliant Standards | IEEE 802.11a/n/ac |
| Maximum Wireless Rate | 867Mbps |
| Interfaces | 2*10/100/1000Mbps Ethernet Port |
| Antenna | Dual Polarization |
| Antenna Gain |
12dBi |
| Antenna Beamwidth | Horizontal: 30° Vertical: 30° Elevation: 30° |
| GND | 1x GND |
| Reset Button | 1*Reset Button |
| Power Consumption | 6.5W |
| Waterproof Level | IP65 |
| LED Indicator | Power, LAN1, LAN2, LAN3, LED1, LED2 |
| Power Method |
PoE 802.3af/at 24V0.5A Passive PoE 12V 1A DC |
| Lightning Protection | 6000V |
| Passive PoE |
Passive power over ethernet via PoE/LAN ( 4,5pins -7,8pins ) up to 60 meters Voltage range: 21-25V DC |
| Reception Sensitivity |
11b 1Mbps -92dBm±1.5dBm 11n MCS0: -92±1.5dBm 11n MCS7: -72±1.5dBm |
Software
| TDMA | Support |
| Operating Mode | AP/Station/WISP/P2MP/WDS Repeater/Router |
| Enable/Disable Wireless Radio | Support |
| SSID Hidden | Support |
| Wireless Client isolation | Support |
| SSID Isolation | Support |
| Channel Bandwidth |
20/40/80MHz |
| Channel Shift | \ |
| Wireless Access Control | Support |
| Weak Signal Client Limitation | Support |
| Transmission Power | Adjustable power by 1dBm |
| WMM Capable | Support |
| APSD Capable | Support |
| Wireless Security |
64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 |
| Transparent Bridge | Support |
| VLAN Tagging for SSID | Support |
| DHCP Server |
Support |
| VPN Pass-Through | PPTP,L2TP |
| Remote Web access | Support |
| Schedule Reboot | Support |
| Page Timeout | Support |
| Ping Watchdog | Support |
| Dyndns | noip, dyndns.org |
| Network Diagnoses | Ping, Traceroute, Signal Scan |
| Time and Date Setting | Support |
| Firmware upgrade | Support |
| Backup/Restore Configuration | Support |
| Username Managerment | Support |
| System Logs | Support |
| Managed By Controller | PC Software CPE Assistant |
Others
| Package Contents |
1*5GHz 16dBi 11AC Gigabit Outdoor CPE 1*PoE Power Adapter 1*Quick Installation Guide |
| Operation Temperature | -30℃ ~55 ℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 10%~90% non-condensing |
| Default login IP | 192.168.2.1 |
| Default Login Username | admin |
| Default Login Password | admin |
| Certification | FCC/CE/RoHS |

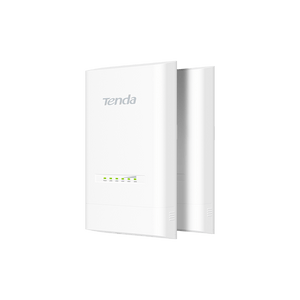

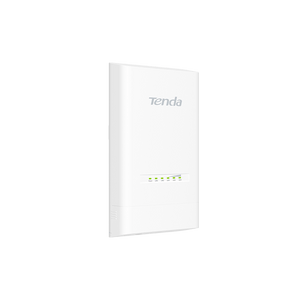

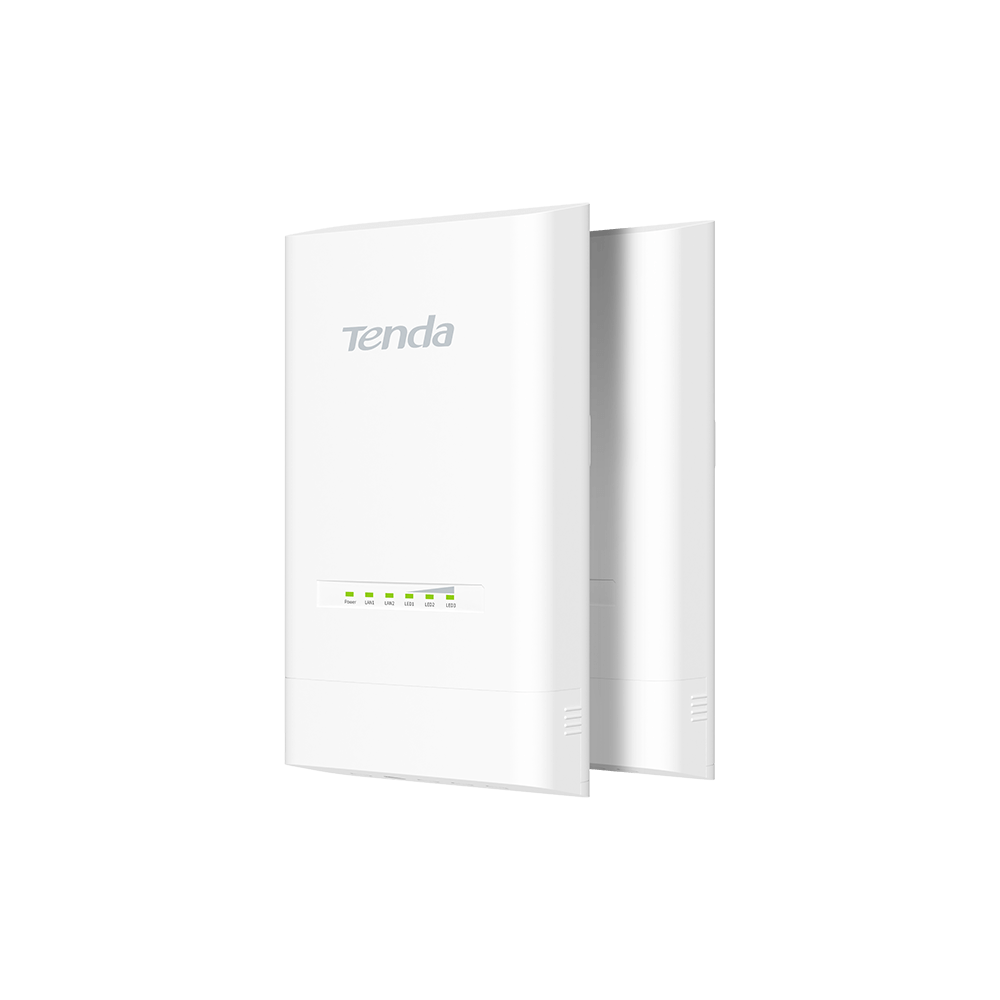

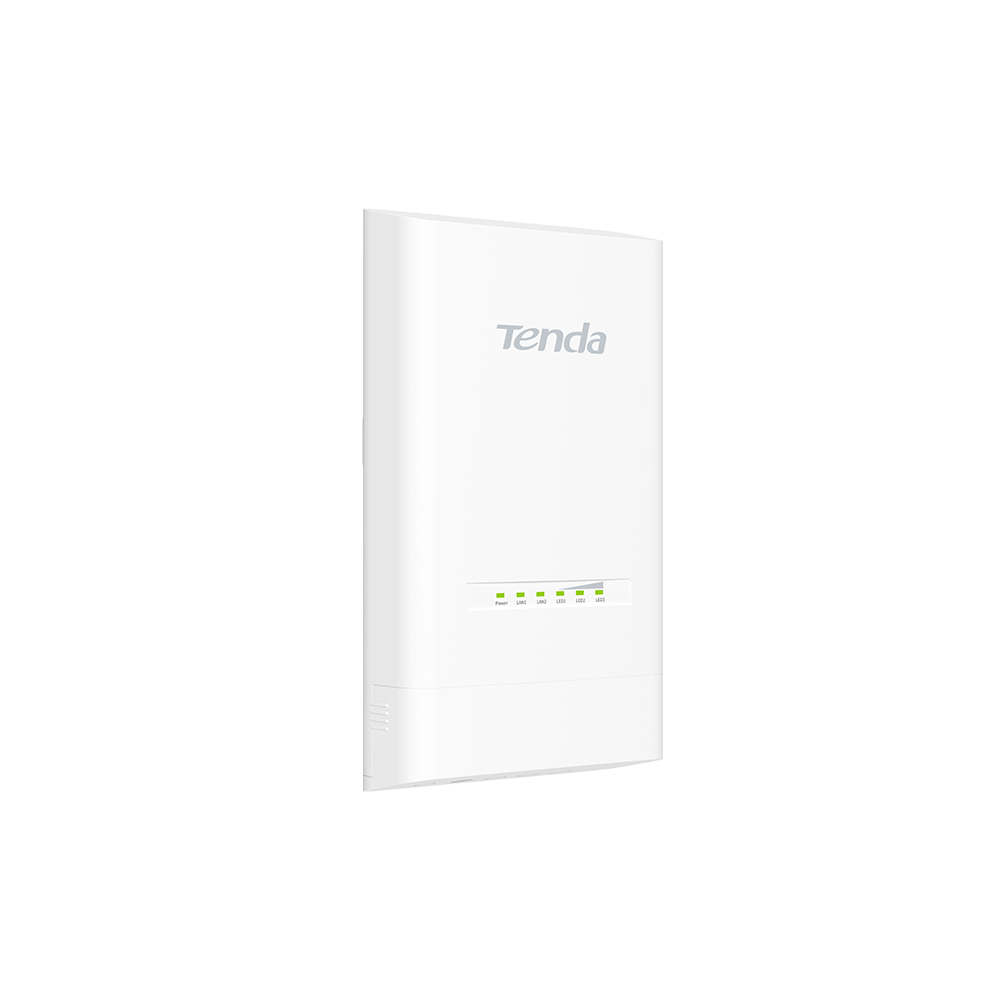

Tenda O4 Kit 5Ghz 867Mbps Gigabit Outdoor Point to Point CPE - 2 Pieces
