Description
Features
- O6V2.0 5GHz Outdoor CPE is designed to PtP&P2MP solutions for video surveillance transmission and wireless broadband access. Adopts of 11ac wireless technology and gigabit ethernet Port design, the maximum throughput for ptp connection can be up to 450Mbps. It features with 16dBi dual polarization directional antenna to provide an efficient way to pick up and maintain a stable long range connection
- O6 adopts of independent external power amplifier and 16dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 10km
- O6 adopt of 11AC wave2 technology, it delivers 867Mbps speed rate at 5GHz radio. Come with Gigabit ethernet LAN port design , the maximum throughput test for PtP connection can be up to 450Mbps
- O6 support PoE 802.3af/at, 24V 0.5A Passive PoE and 12V 1A DC power supply optional. It helps the engineer to deployment the device flexiblely
- TD-MAX is Tenda TDMA (Time Division Multiple Access) proprietary protocol to improve performance and capacity for wireless P2MP outdoor application scenarios. In outdoor enviroment, the CPE use highly directional antennas to connect to the Basestation from distances that can span several kilometers
- Equipped with IP65 waterproof enclouse and high quality hardware design, O6 can work in various weather conditions, such as sunshine, rainfall or extremely low/high temperature environment
- O6 comes with a centralized management software that helps users easily to manage all the devices in the network from a single PC-CPE Assistant
- WISP Mode
- Long distance wireless connection Mode
Hardware
| Model | O6V2.0 |
| Dimension | 270*94.86*67.5mm |
| Deployment | Pole Mount/Wall Mount |
| Application Scenarios | PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance |
Hardware
| Frequency Range | 5GHz |
| Compliant Standards | IEEE 802.11a/n/ac |
| Maximum Wireless Rate | 867Mbps |
| Interfaces | 1*10/100/1000Mbps Ethernet Port |
| Antenna | Dual Polarization Directional Antenna |
| Antenna Gain |
16dBi |
| Antenna Beamwidth | Horizontal: 30° Vertical: 30° |

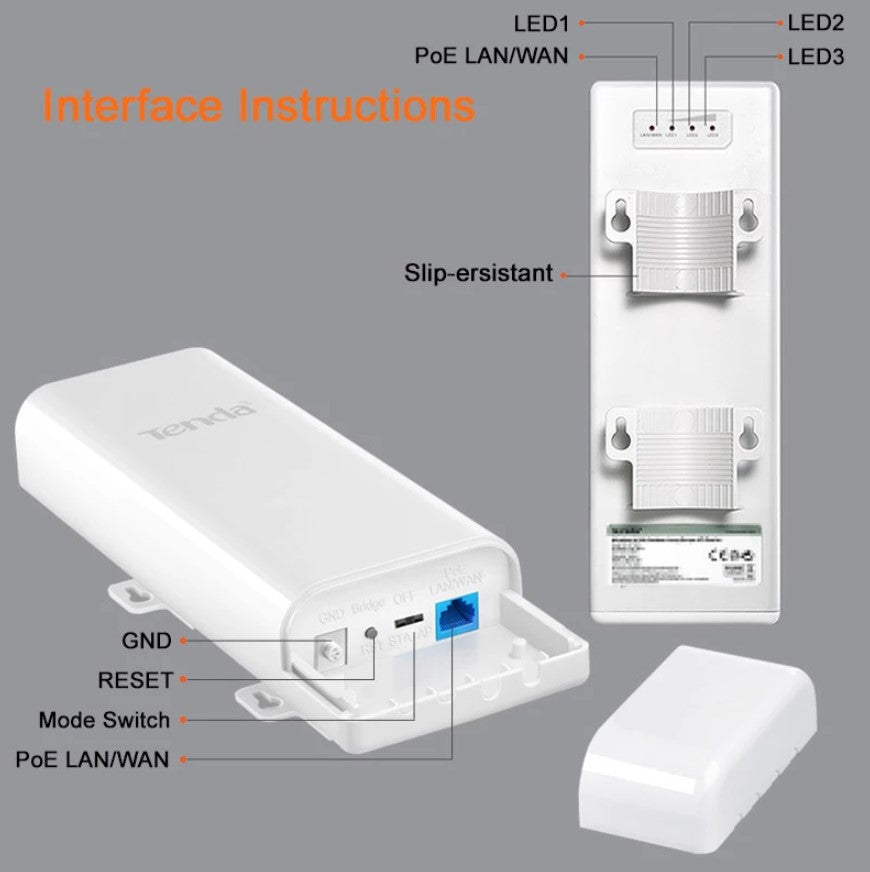

| GND | 1x GND |
| Reset Button | 1*Reset Button |
| Power Consumption | 6.5W |
| Waterproof Level | IP65 |
| LED Indicator | Power,PoE/LAN1,LAN2,LAN3,LAN4LED1,LED2,LED3 |
| Power Method |
PoE 802.3af/at 24V0.5A Passive PoE 12V 1A DC |
| Lightning Protection | 6000V |
| Passive PoE |
Passive power over ethernet via PoE/LAN ( 4,5pins -7,8pins ) up to 60 meters Voltage range: 21-25V DC |
| Reception Sensitivity |
11b 1Mbps -92dBm±1.5dBm 11n MCS0: -92±1.5dBm 11n MCS7: -72±1.5dBm |
Software
| TDMA | Support |
| Operating Mode | AP/Station/WISP/P2MP/WDS Repeater/Router |
| Enable/Disable Wireless Radio | Support |
| SSID Hidden | Support |
| Wireless Client isolation | Support |
| SSID Isolation | Support |
| Channel Bandwidth |
20/40/80MHz |
| Channel Shift | \ |
| Wireless Access Control | Support |
| Weak Signal Client Limitation | Support |
| Transmission Power | Adjustable power by 1dBm |
| WMM Capable | Support |
| APSD Capable | Support |
| Wireless Security |
64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 |
| Transparent Bridge | Support |
| VLAN Tagging for SSID | Support |
| DHCP Server |
Support |
| VPN Pass-Through | PPTP,L2TP |
| Remote Web access | Support |
| Schedule Reboot | Support |
| Page Timeout | Support |
| Ping Watchdog | Support |
| Dyndns | noip, dyndns.org |
| Network Diagnoses | Ping, Traceroute, Signal Scan |
| Time and Date Setting | Support |
| Firmware upgrade | Support |
| Backup/Restore Configuration | Support |
| Username Managerment | Support |
| System Logs | Support |
| Managed By Controller | PC Software CPE Assistant |
Others
| Package Contents |
1*5GHz 16dBi 11AC Gigabit Outdoor CPE 1*PoE Power Adapter 1*Quick Installation Guide |
| Operation Temperature | -30℃ ~55 ℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 10%~90% non-condensing |
| Default login IP | 192.168.2.1 |
| Default Login Username | admin |
| Default Login Password | admin |
| Certification | FCC/CE/RoHS |
