Description
Features
- OS3 5GHz Outdoor CPE is designed to PtP&P2MP solution for video surveillance transmission and wireless broadband access. Adopts of 11ac wireless technology, the maximum wireless rate can be up to 867Mbps. It features with 12dBi dual polarization directional antenna to provide an efficient way to pick up and maintain a stable long range connection
- OS3 adopts of internal power amplifier and 12dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 5km
- OS3 supports 12V 1A Passive PoE and 12V 1A DC power supply option. It helps the engineer to deploy the device flexiblely
- TD-MAX is Tenda TDMA (Time Division Multiple Access) proprietary protocol to improve performance and capacity for wireless P2MP outdoor application scenarios. In outdoor environment, the CPE use highly directional antennas to connect to the Basestation from distances that can span several kilometers
- OS3 supports auto-bridge technology, It enables the CPE or basestation in factory default settings to connect to each other automaticaly after the device is powered on
- OS3 comes with a centralized management software that helps users easily to manage all the devices in the network from a single PC-CPE Assistant
- Equipped with IP65 waterproof enclouse and high quality hardware design, OS3 can work in various weather conditions, such as sunshine, rainfall or extremely low/high temperature environment
- PtP Connection For CCTV Transmission
- PtP Connection For internet sharings
- Wireless Internet Access for Private ISP
Hardware
| Model | O5 |
| Dimension | 193*109*61mm |

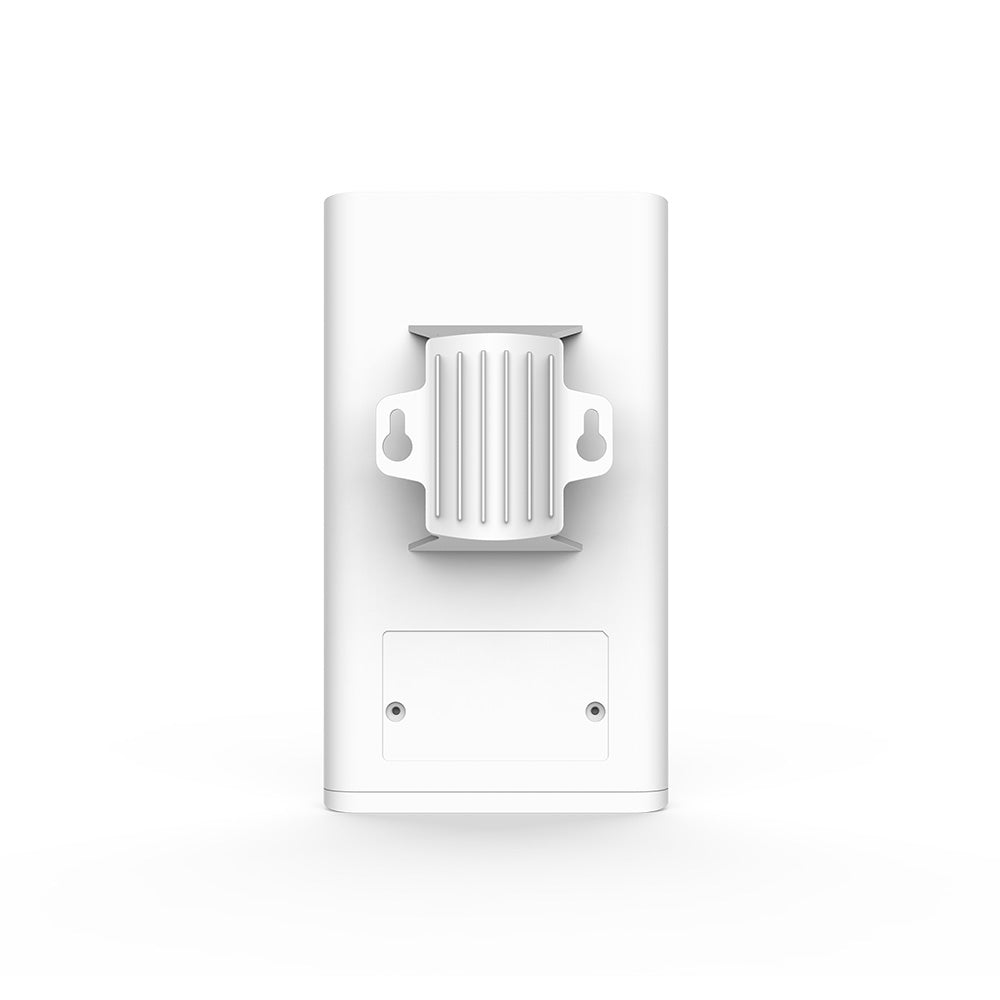

| Deployment | Pole Mount/Wall Mount |
| Application Scenarios | PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance |
Hardware
| Frequency Range | 5GHz |
| Compliant Standards | IEEE 802.11a/n/ac |
| Maximum Wireless Rate | 867Mbps |

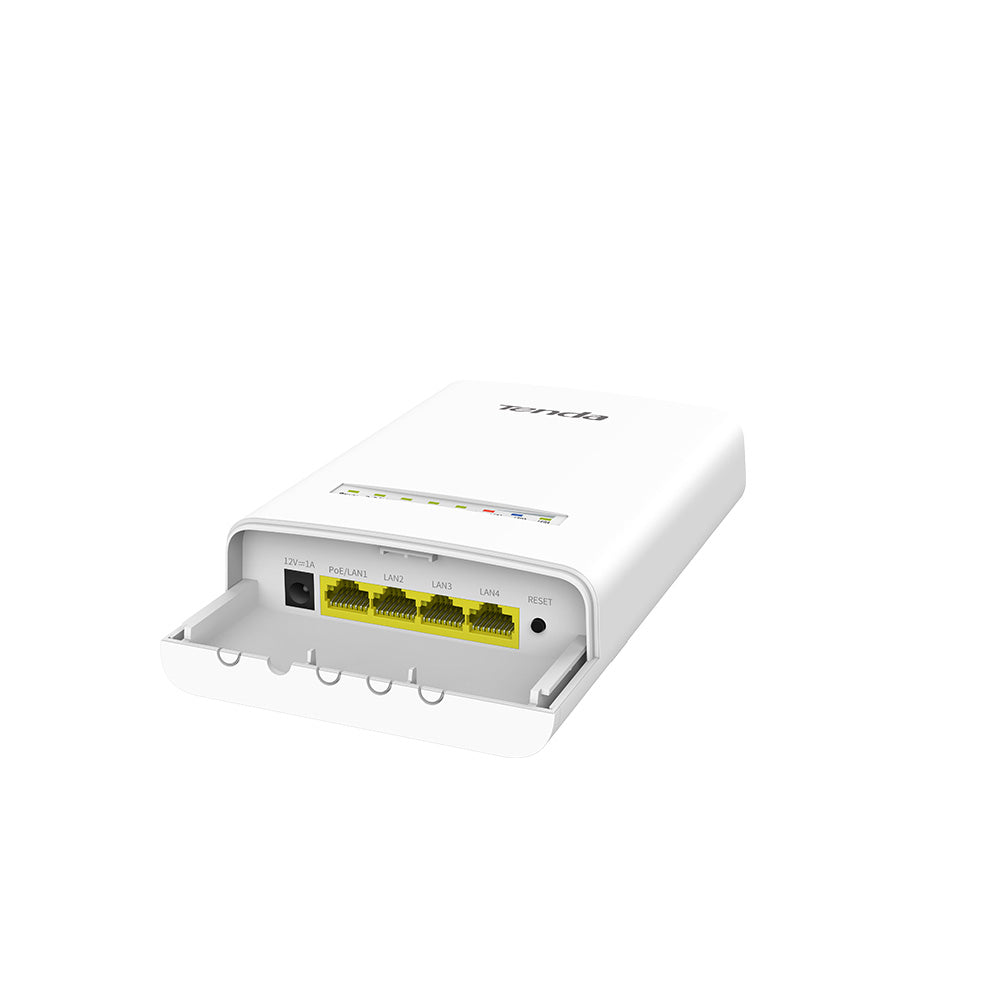

| Interfaces | 4*10/100 LAN Port |
| Antenna | - |
| Antenna Gain |
12dbi |
| Antenna Beamwidth | Horizontal: 30° Vertical: 30° Elevation: 30° |
| GND | \ |
| Reset Button | 1*Reset Button |
| Power Consumption | 4.7W |
| Waterproof Level | IP65 |
| LED Indicator | Power,PoE/LAN1,LAN2,LAN3,LAN4LED1,LED2,LED3 |
| Power Method |
12V 1A Passive PoE 12V 1A DC |
| Lightning Protection | 6000V |
| Passive PoE |
Passive power over ethenet via PoE/LAN (+4,5pins -7,8pins) Voltage range: 9-13.8V DC |
| Reception Sensitivity |
11b 1Mbps -92dBm±1.5dBm 11n MCS0: -92±1.5dBm 11n MCS7: -72±1.5dBm |
Software
| TDMA | \ |
| Operating Mode | AP/Station/WISP/P2MP/WDS Repeater/Router |
| Enable/Disable Wireless Radio | Support |
| SSID Hidden | Support |
| Wireless Client isolation | Support |
| SSID Isolation | Support |
| Channel Bandwidth |
20/40/80MHz |
| Channel Shift | \ |
| Wireless Access Control | Support |
| Weak Signal Client Limitation | Support |
| Transmission Power | Adjustable power by 1dBm |
| WMM Capable | Support |
| APSD Capable | Support |
| Wireless Security |
64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 |
| Transparent Bridge | Support |
| VLAN Tagging for SSID | Support |
| DHCP Server |
Support |
| VPN Pass-Through | PPTP,L2TP |
| Remote Web access | Support |
| Schedule Reboot | Support |
| Page Timeout | Support |
| Ping Watchdog | Support |
| Dyndns | noip, dyndns.org |
| Network Diagnoses | Ping, Traceroute, Signal Scan |
| Time and Date Setting | Support |
| Firmware upgrade | Support |
| Backup/Restore Configuration | Support |
| Username Managerment | Support |
| System Logs | Support |
| Managed By Controller | PC Software CPE Assistant |
Others
| Package Contents |
1*5GHz 12dBi 11AC 867Mbps Outdoor CPE 1*Power Adapter 1*PoE Injector 1*Quick Installation Guide |
| Operation Temperature | -30℃ ~55 ℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 10%~90% non-condensing |
| Default login IP | 192.168.2.1 |
| Default Login Username | admin |
| Default Login Password | admin |
| Certification | FCC/CE/RoHS |
Description
Features
- OS3 5GHz Outdoor CPE is designed to PtP&P2MP solution for video surveillance transmission and wireless broadband access. Adopts of 11ac wireless technology, the maximum wireless rate can be up to 867Mbps. It features with 12dBi dual polarization directional antenna to provide an efficient way to pick up and maintain a stable long range connection
- OS3 adopts of internal power amplifier and 12dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 5km
- OS3 supports 12V 1A Passive PoE and 12V 1A DC power supply option. It helps the engineer to deploy the device flexiblely
- TD-MAX is Tenda TDMA (Time Division Multiple Access) proprietary protocol to improve performance and capacity for wireless P2MP outdoor application scenarios. In outdoor environment, the CPE use highly directional antennas to connect to the Basestation from distances that can span several kilometers
- OS3 supports auto-bridge technology, It enables the CPE or basestation in factory default settings to connect to each other automaticaly after the device is powered on
- OS3 comes with a centralized management software that helps users easily to manage all the devices in the network from a single PC-CPE Assistant
- Equipped with IP65 waterproof enclouse and high quality hardware design, OS3 can work in various weather conditions, such as sunshine, rainfall or extremely low/high temperature environment
- PtP Connection For CCTV Transmission
- PtP Connection For internet sharings
- Wireless Internet Access for Private ISP
Hardware
| Model | O5 |
| Dimension | 193*109*61mm |
| Deployment | Pole Mount/Wall Mount |
| Application Scenarios | PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance |
Hardware
| Frequency Range | 5GHz |
| Compliant Standards | IEEE 802.11a/n/ac |
| Maximum Wireless Rate | 867Mbps |
| Interfaces | 4*10/100 LAN Port |
| Antenna | - |
| Antenna Gain |
12dbi |
| Antenna Beamwidth | Horizontal: 30° Vertical: 30° Elevation: 30° |
| GND | \ |
| Reset Button | 1*Reset Button |
| Power Consumption | 4.7W |
| Waterproof Level | IP65 |
| LED Indicator | Power,PoE/LAN1,LAN2,LAN3,LAN4LED1,LED2,LED3 |
| Power Method |
12V 1A Passive PoE 12V 1A DC |
| Lightning Protection | 6000V |
| Passive PoE |
Passive power over ethenet via PoE/LAN (+4,5pins -7,8pins) Voltage range: 9-13.8V DC |
| Reception Sensitivity |
11b 1Mbps -92dBm±1.5dBm 11n MCS0: -92±1.5dBm 11n MCS7: -72±1.5dBm |
Software
| TDMA | \ |
| Operating Mode | AP/Station/WISP/P2MP/WDS Repeater/Router |
| Enable/Disable Wireless Radio | Support |
| SSID Hidden | Support |
| Wireless Client isolation | Support |
| SSID Isolation | Support |
| Channel Bandwidth |
20/40/80MHz |
| Channel Shift | \ |
| Wireless Access Control | Support |
| Weak Signal Client Limitation | Support |
| Transmission Power | Adjustable power by 1dBm |
| WMM Capable | Support |
| APSD Capable | Support |
| Wireless Security |
64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 |
| Transparent Bridge | Support |
| VLAN Tagging for SSID | Support |
| DHCP Server |
Support |
| VPN Pass-Through | PPTP,L2TP |
| Remote Web access | Support |
| Schedule Reboot | Support |
| Page Timeout | Support |
| Ping Watchdog | Support |
| Dyndns | noip, dyndns.org |
| Network Diagnoses | Ping, Traceroute, Signal Scan |
| Time and Date Setting | Support |
| Firmware upgrade | Support |
| Backup/Restore Configuration | Support |
| Username Managerment | Support |
| System Logs | Support |
| Managed By Controller | PC Software CPE Assistant |
Others
| Package Contents |
1*5GHz 12dBi 11AC 867Mbps Outdoor CPE 1*Power Adapter 1*PoE Injector 1*Quick Installation Guide |
| Operation Temperature | -30℃ ~55 ℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 10%~90% non-condensing |
| Default login IP | 192.168.2.1 |
| Default Login Username | admin |
| Default Login Password | admin |
| Certification | FCC/CE/RoHS |
Tenda OS3 5Ghz 12dBi 11AC Outdoor Point to Point CPE
- Regular price
- $99.95
- Sale price
- $99.95
- Regular price
-
Tax included.
