Description

Features

Gigabit speed: In full duplex mode, the transmission speed can be 2000Mbps, 10x speed of fast Ethernet , and data packets are forwarded at full wire speed.
With store and forwarding mode, MAC address auto learning and auto aging , SG105 can transfer data without loss to ensure stable and blazing fast Wired network performance.
Wired network is available after plug Ethernet cable in no time effortlessly. Whether you are a tech-savvy enthusiast or a first-time user, Tenda SOHO Gigabit Switches are super easy and intuitive to setup without time-consuming operations. It is easy for us to setup the Internet in order to make you enjoy it with Tenda SOHO Gigabit Switches.

Specifications

Network standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
LED Indicator	1* Power, 5* Link/Act

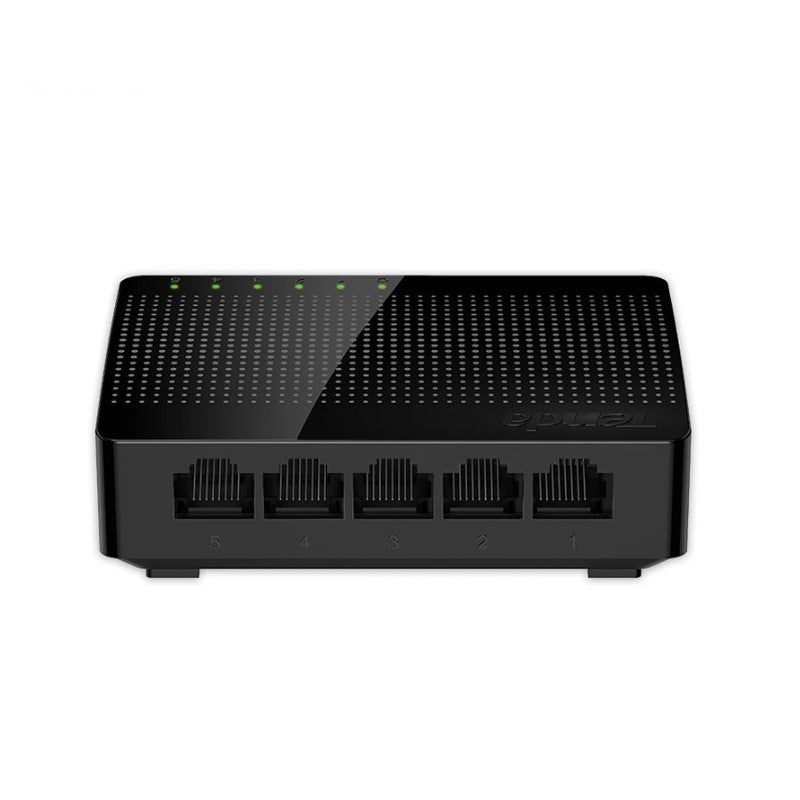

Interfaces	5*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)
Tranmission Media	Recommended: CAT5/5e UTP or better
Fan Quantity	N/A
Dimension	93.0mm×66.0mm×23.0mm
Material	Plastic
Protection	ESD: Air discharge: ±8kV Contact discharge: ±6kV
Forwarding Mode	Store-and-forward
Switch Capacity	10 Gbps
Packet Forwarding Rate	7.44Mpps
Buffer	1Mb
MAC Address	2K
Jombo Frame	N/A
Power	Input: 100-240V AC 50/60Hz Output: 5.0V 0.6A ( External Power Adapter )
Power Consumption	Max:<1.7W
Mounting	Desktop mounting: support Wall mounting: support Rack mounting:non-support
Environment	Operating temperature: 0°C - 45℃ Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%) RH, non-condensing Storage humidity: (5% - 90%) RH, non-condensing
Certification	CE, FCC, RoHS
Protocols	CDMA/CD
MAC Address Learning	Auto-Learning and Auto-Aging
Functions	Plug & Play
