Description
Features

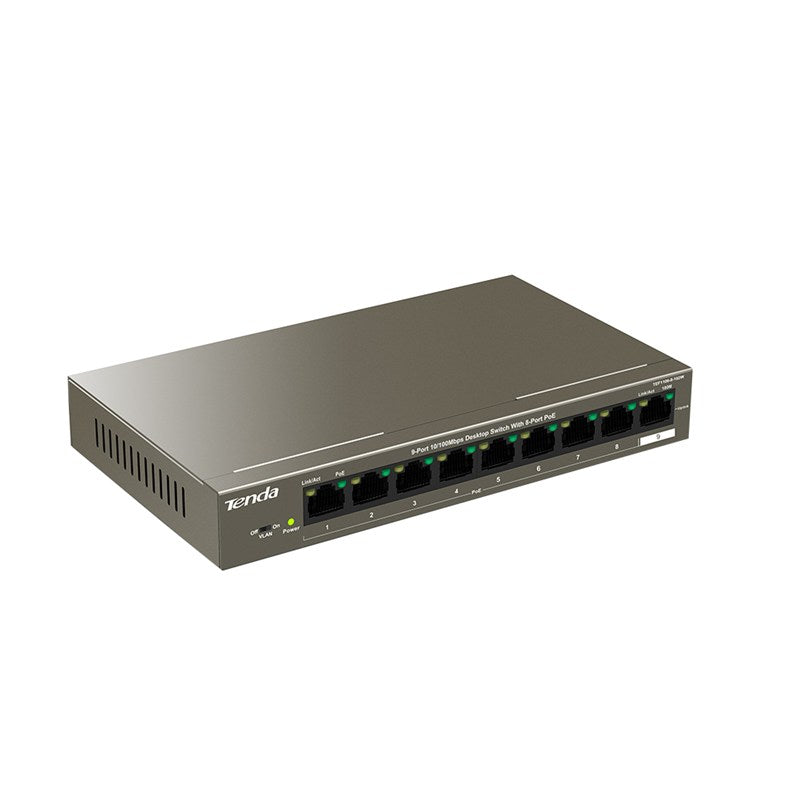

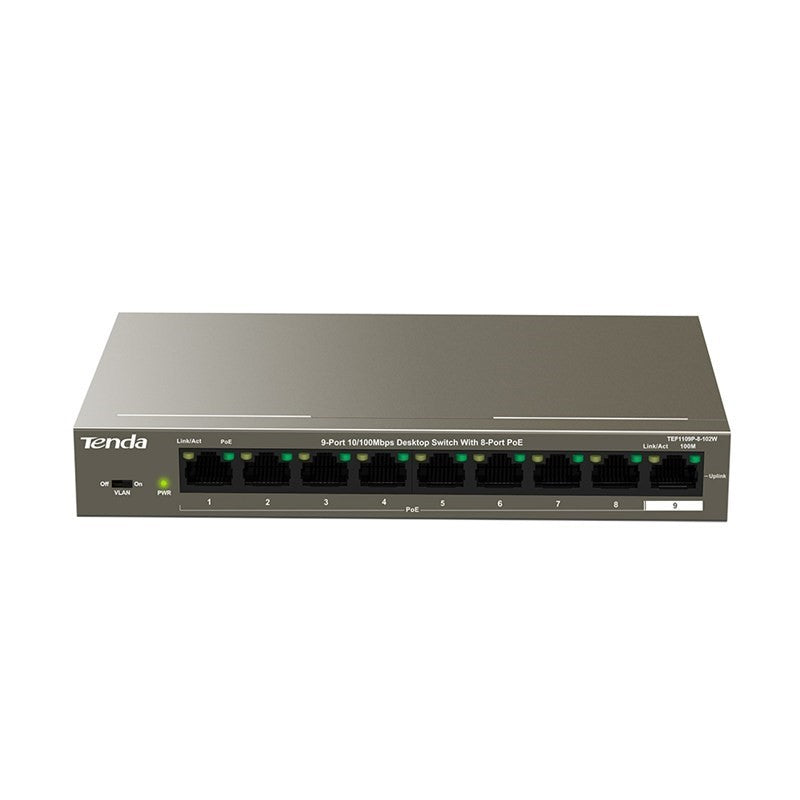

- TEF1109P-8-102W is a Tenda switch that offers 9 10/100M RJ45 ports. Ports 1-8 comply with the IEEE802.3af standard (maximum PoE power output : 15.4w) and 802.3at standard (maximum PoE power output: 30W). The switch offers a maximum PoE power output of 92W and can supply power to exchange data with APs, IP cameras, and IP phones through CAT5e cables
- DaTA can be transmitted through 250 meters cable
- Supports 6 kV lightning protection for uplink port, protecting the switch from thunderstorms and making it more stable
- With VLAN Mode on , ports 1 to 8 are isolated from each other, enabling the switch to isolate broadcast storm, improving LAN security and data transmission
- Equipped with 1024KB large packet buffer, it ensures smooth streaming even when eight HD IP cameras of 500W are working simultaneously
- Integrated with Smart Power Management Chip Makes the Switch Get Rid of Overload
| Network standards | IEEE 802.3/IEEE 802.3u/IEEE 802.3x IEEE 802.3af/IEEE 802.3at |
| LED Indicator |
9* Link/Ack LED indicators 1 * Power LED indicator |
| Interfaces |
8*10/100 Base-TX Ethernet ports (Data/Power) 1*10/100 Base-TX Ethernet ports (Data) |
| Tranmission Media | Recommended: CAT5/5e UTP or better |
| Fan Quantity | N/A |
| Dimension | 177.5mmx104.0mmx26mm |
| Protection |
Lightning protection for ports: 6kV Lightning protection for power: 6kV ESD: Air discharge: ±10kV Contact discharge: ±8kV |
| Forwarding Mode | Store-and-forward |
|
Switch Capacity |
1.6 Gbps |
| Packet Forwarding Rate | 1.34Mpps |
|
Buffer |
1Mb |
| MAC Address | 2K |
| Jombo Frame | N/A |
| PoE Budget |
Single port: AF: 15.4W, AT: 30W Whole device: 92W |
| Power Consumption | / |
| Input Voltage |
100－240V AC 50/60Hz 51V /2A DC（Power Adapter ） |
| Mounting |
Desktop mounting: support Wall mounting: support Rack mounting:non-support |
| Environment |
Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Certification | FCC、CE、RoHS |
| Functions |
Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. VLAN: ports 1 to 8 are isolated from each other, but can communicate with ports 9 (uplink port) respectively. |
