Description

Features

TEF1110P-8-102W has the network extension technology.
Supports up to 250 meters long distance transmission, breaking the hundred meters transfer limit.
6KV lightning protection, it is the real monitoring private switch.
Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides a maximum power supply of 30W to each port and 99W to the whole device
VLAN support

Network standards	IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at
LED Indicator	10* Link/Ack LED indicators 1 * Power LED indicator

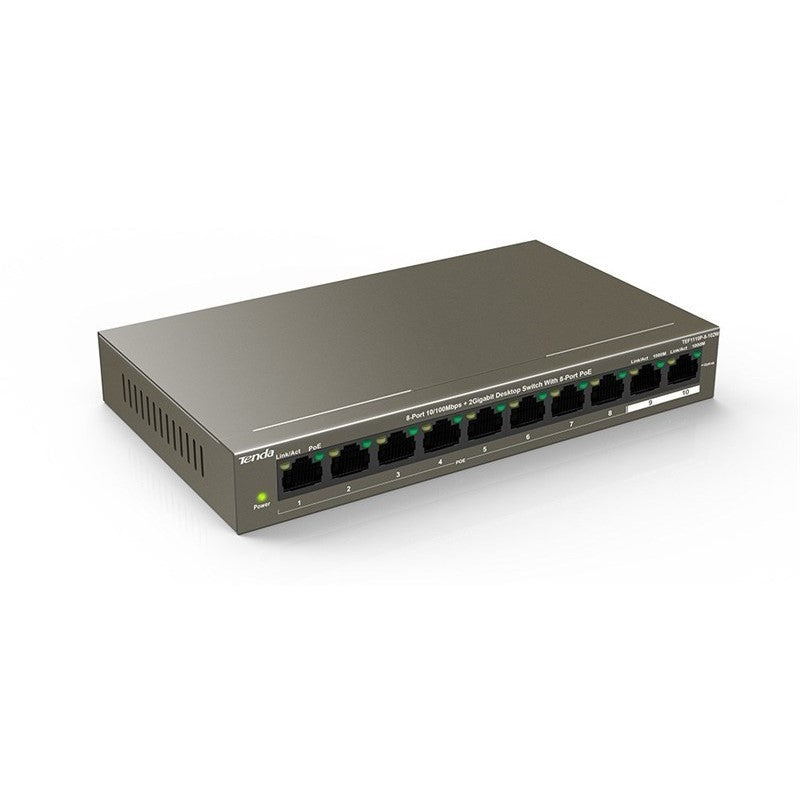

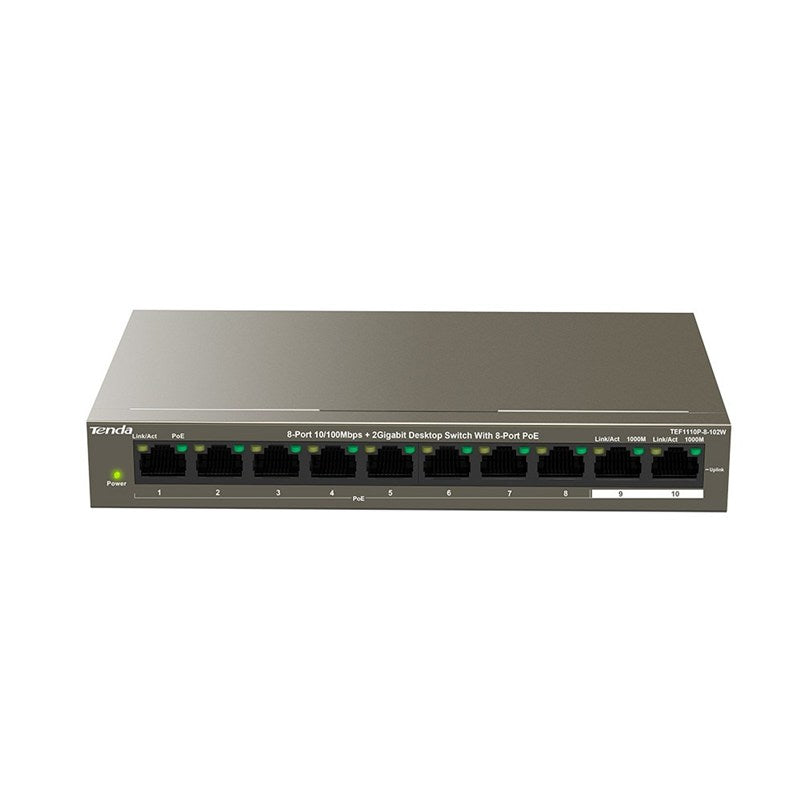

Interfaces	8 * 10/100 Base-TX Ethernet ports (Data/Power) 2 * 10/100/1000 Base-TX Ethernet ports (Data)
Tranmission Media	Recommended: CAT5/5e UTP or better
Fan Quantity	N/A
Dimension	177.5mmx104.0mmx26.0mm
Protection	Lightning protection for ports: 6kV Lightning protection for power: 6kV ESD: Air discharge: ±10kV Contact discharge: ±8kV
Forwarding Mode	Store-and-forward
Switch Capacity	5.6 Gbps
Packet Forwarding Rate	1.48Mpps
Buffer	448K
MAC Address	16K
Jombo Frame	N/A
PoE Budget	Single port: AF: 15.4W, AT: 30W Whole device: 99W
Power Consumption	/
Input Voltage	100－240V AC 50/60Hz 51V /2A DC（Power Adapter ）
Mounting	Desktop mounting: support Wall mounting: support Rack mounting:non-support
Environment	Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Certification	FCC、CE、RoHS

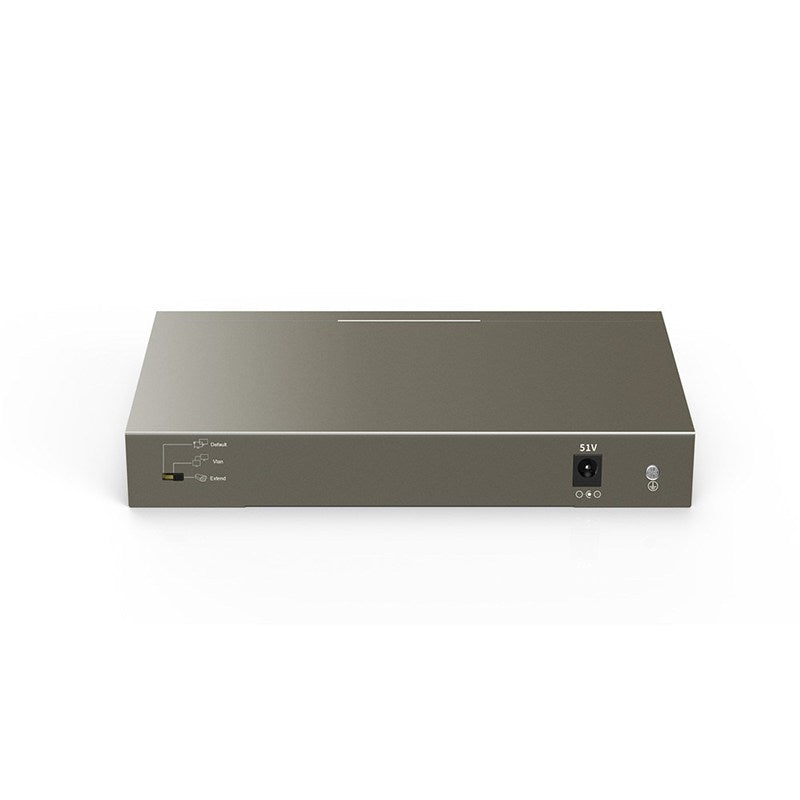

Functions	Default Mode: If Default mode is enabled, the device works as a general switch and all ports support 10/100Mbps auto-negotiation. VLAN Mode: 1-8 port can be isolated each other but 1-8 port can connect to 9/10 port after open VLAN to stop broadcast storm to increase forwarding rate of frame. Extend Mode: If Extend mode is enabled, the delivery distance of powering and network data is up to 250m (10Mbps).
