Features

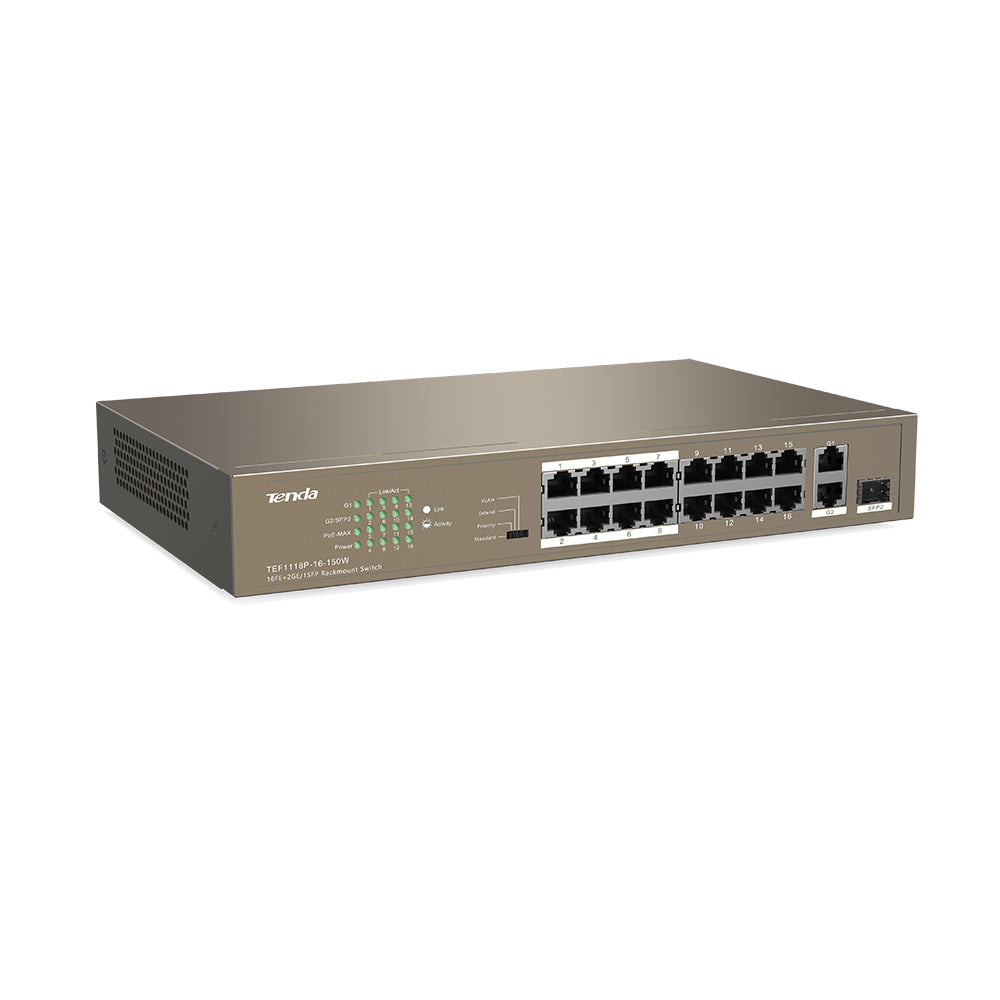

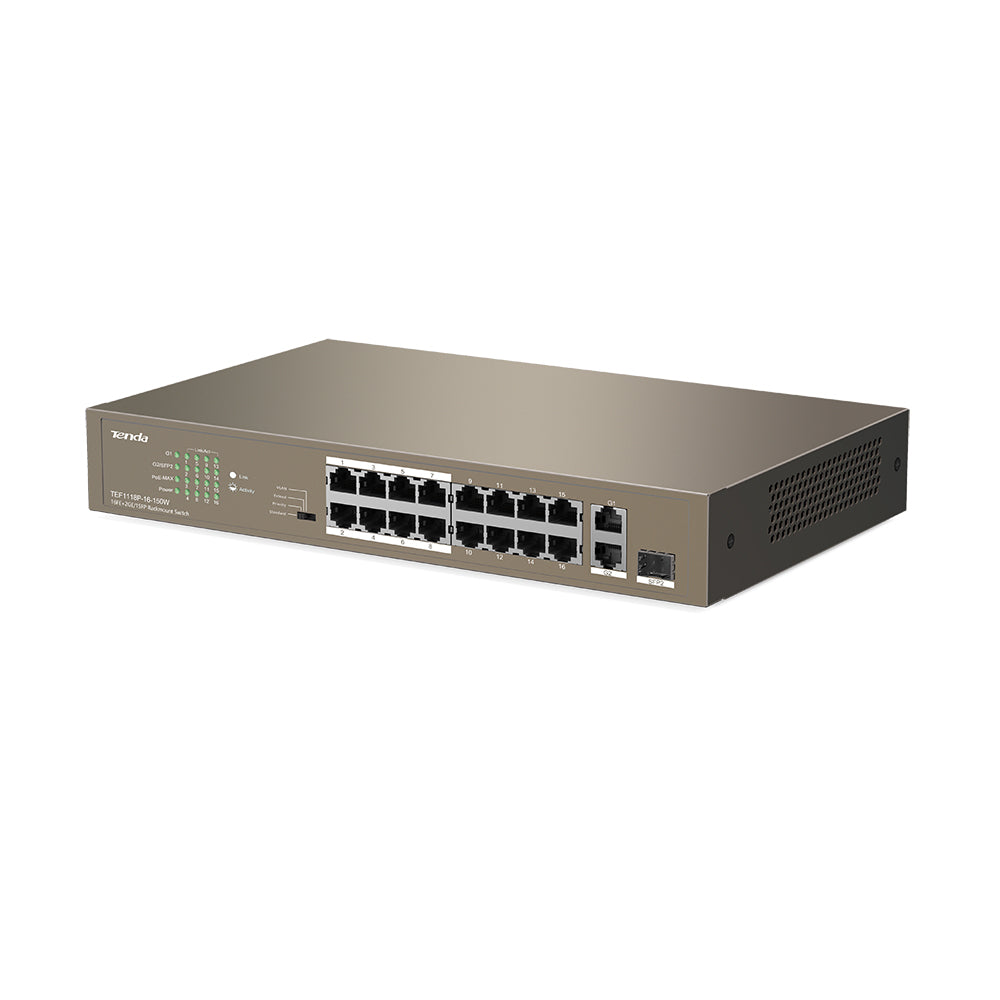

• TEF1118P-16-150W is a unmanaged PoE switch independently designed by Tenda. Compliant with IEEE 802.3af and IEEE 802.3at standards. With a maximum PoE power output of 150 W, and 30 W for a single port, it can supply power when transmitting data with APs, IP cameras, and IP phones. The switch supports 4 working modes, including standard, priority, extend and VLAN modes,
• With one 10/100/1000 Mbps combo SFP slot, the switch can meet the current demand for uplink bandwidth of Gigabit WLAN and HD digital surveillance. Working with Tenda optical fibermodule TEG311SM, the switch supports a maximum transmission distance up to 20km

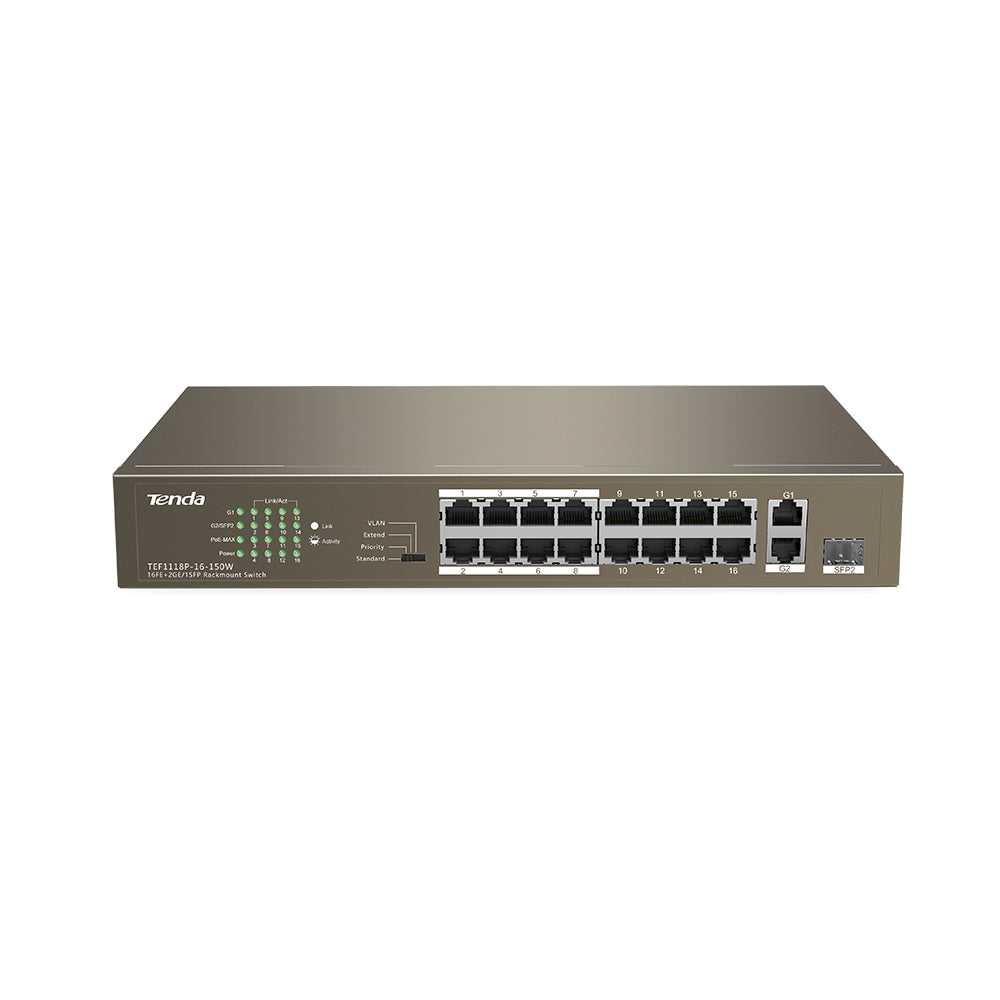

• Mode 1: Standard Mode
  This is the default working mode of TEF1118P-16-150W. In the mode, all ports can communicate with each other independently
• Mode 2： Port-based Priority Mode
  Ports 1 to 8 have higher priority than other ports, and all ports can communicate with each other. When the switch is connected to multiple IP cameras, you are recommended to use this mode for better smooth transmission with the key IP cameras connected to higher priority ports, and connect the 2 uplink ports (Ports G1 & G2/SFP2) to uplink devices (such as NVR or Router)
• Mode 3：Port-Based VLAN Mode
  In this mode, ports 1 to 16 can communicate with uplink ports (Ports G1 & G2/SFP2), but can not communicate with each other. You can use this mode to isolate broadcaststorm and prevent ARP virus and DHCP sproofing
• Mode 4: Extend Mode
  Due to the complex monitoring environment, the distance from each terminal to the monitoring center is different, some even more than hundred meters. TEF1118P-16-150W can support 250 meters data transmission in the Extend mode, which can save the cost of your project with less devices used
