Description

Features

Offers 6KV lightning protection to each port to effectively prevent lightning-induced current from damaging the ports or switch, so as to ensure the surveillance system stability.
A housing made of 0.8 mm galvanized industrial-grade steel plates for excellent durability has a good heat dissipation performance, which can ensure stable switch operation, a long service life, and more reliable outdoor security surveillance.

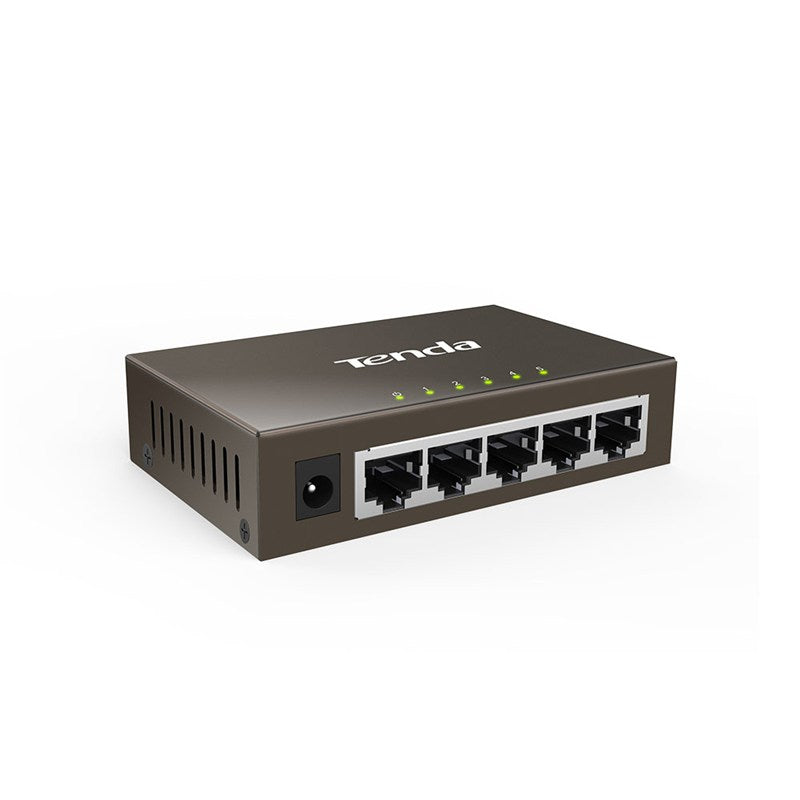

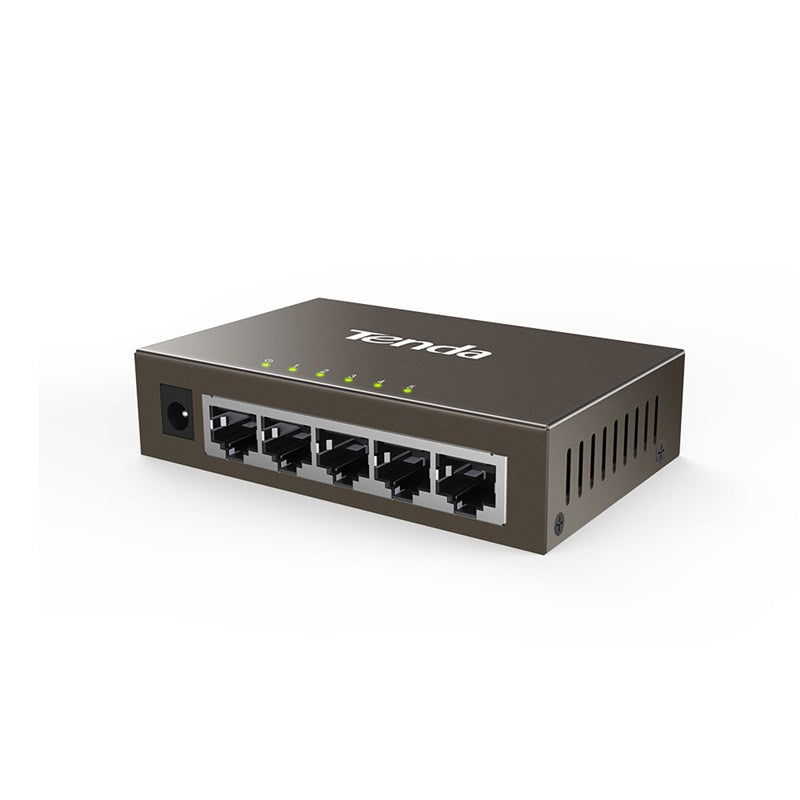

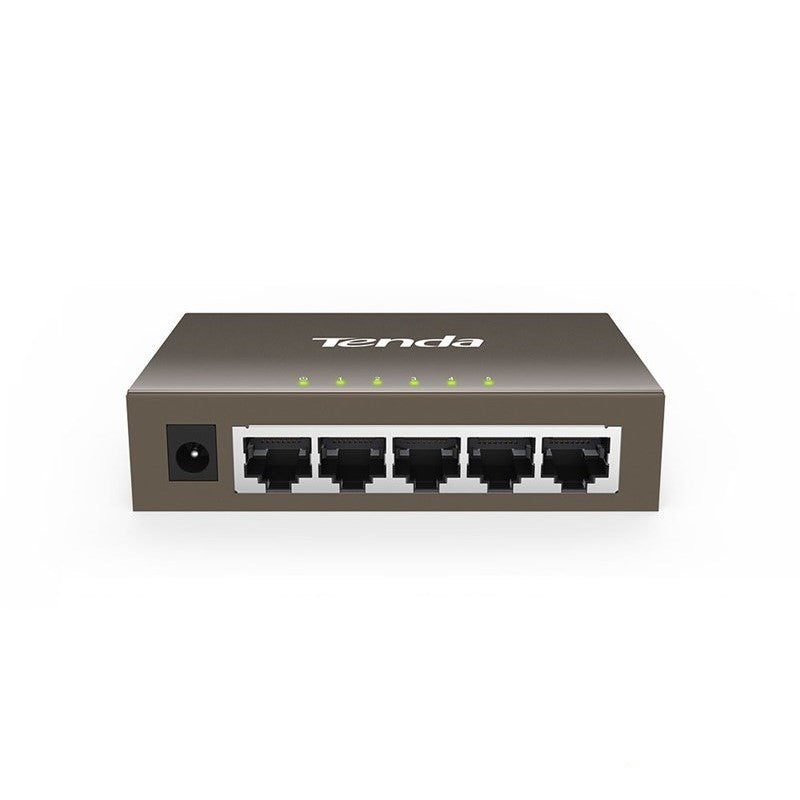

5 * 10/100/1000Mbps auto-negotiation RJ45 ports that support wire-speed forwarding and large-capacity cache, ensuring smooth surveillance video playback and stable data transmission for 7x24 hours.
Full duplex working mode, Auto MDI/MDIX, Wall Mounting

Specifications

Network standards	IEEE802.3、 IEEE802.3u、IEEE802.3x、 IEEE802.3ab
LED Indicator	1* Power,5* Link/Act
Interfaces	5*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)
Tranmission Media	Recommended: CAT5/5e UTP or better
Fan Quantity	N/A
Dimension	100.0mmx64.0mmx23.0mm
Material	Metal
Protection	ESD: Air discharge: ±8kV Contact discharge: ±6kV
Forwarding Mode	Store-and-forward
Switch Capacity	1.0 Gbps
Packet Forwarding Rate	7.44Mpps
Buffer	1Mb
MAC Address	2K
Jombo Frame	N/A
Power	Input: 100 - 240 V AC 50/60 Hz Output: DC 9 - 12 V
Power Consumption	Max:<2.5W
Mounting	Desktop mounting: support Wall mounting: support Rack mounting:non-support
Environment	Operating temperature: 0°C - 45℃ Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%) RH, non-condensing Storage humidity: (5% - 90%) RH, non-condensing
Certification	CE, FCC, RoHS
Protocols	CDMA/CD
MAC Address Learning	Auto-Learning and Auto-Aging
Functions	Plug and play
