Description
Features
- 16*10/100/1000 Mbps auto-negotiation RJ45 ports, up to 2000 Mbps of full duplex transmission rate, line-speed forwarding by all ports, and large cache capacity ensure the timely transfer of large files and stable streaming video. Stay connected for 7*24.
- Professional integrated lightning protection circuit enables all the 16 ports to provide IV-class (6 kV in common mode) lightning protection, effectively decreasing the damage rate to the ports by lightning surge.
- The built-in power supply module is designed with enhanced lightning protection, which can withstand 6 kV lightning surge, 3 times higher than other ordinary switches, effectively protecting the switch from being damaged by adverse thunderstorm.
- Full steel housing and plating through holes in three faces allow higher-efficient heat dissipation; fanless design ensures the noiselessness and dust free, harmoniously fitting into the offices; 13-inch size makes it mountable both on desktop and rack and plug and play function makes it easy for use.
Specifications
| Network standards | IEEE802.3、 IEEE802.3u、IEEE802.3x、 IEEE802.3ab |
| LED Indicator | 1* Power,16* Link/Act |
| Interfaces | 16*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX) |
| Tranmission Media | Recommended: CAT5/5e UTP or better |
| Fan Quantity | N/A |
| Dimension |
294.0mm x 179.0mm x 44.0mm |
| Material | Metal |
| Protection |
ESD: Air discharge: ±8kV Contact discharge: ±6kV |
| Forwarding Mode | Store-and-forward |
|
Switch Capacity |
32Gbps |
| Packet Forwarding Rate | 23.80Mpps |
|
Buffer |
2Mb |
| MAC Address | 8K |
| Jombo Frame | N/A |
| Power | Input: 100-240V AC 50/60Hz |
| Power Consumption | Max:<12W |
| Mounting |
Desktop mounting: support Wall mounting: support Rack mounting:non-support |
| Environment |
Operating temperature: 0°C - 45℃ Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%) RH, non-condensing Storage humidity: (5% - 90%) RH, non-condensing |
| Certification | CE, FCC, RoHS |
| Protocols | CDMA/CD |
| MAC Address Learning | Auto-Learning and Auto-Aging |
| Functions | Plug and play |
Description
Features
- 16*10/100/1000 Mbps auto-negotiation RJ45 ports, up to 2000 Mbps of full duplex transmission rate, line-speed forwarding by all ports, and large cache capacity ensure the timely transfer of large files and stable streaming video. Stay connected for 7*24.
- Professional integrated lightning protection circuit enables all the 16 ports to provide IV-class (6 kV in common mode) lightning protection, effectively decreasing the damage rate to the ports by lightning surge.
- The built-in power supply module is designed with enhanced lightning protection, which can withstand 6 kV lightning surge, 3 times higher than other ordinary switches, effectively protecting the switch from being damaged by adverse thunderstorm.
- Full steel housing and plating through holes in three faces allow higher-efficient heat dissipation; fanless design ensures the noiselessness and dust free, harmoniously fitting into the offices; 13-inch size makes it mountable both on desktop and rack and plug and play function makes it easy for use.
Specifications
| Network standards | IEEE802.3、 IEEE802.3u、IEEE802.3x、 IEEE802.3ab |
| LED Indicator | 1* Power,16* Link/Act |
| Interfaces | 16*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX) |
| Tranmission Media | Recommended: CAT5/5e UTP or better |
| Fan Quantity | N/A |
| Dimension |
294.0mm x 179.0mm x 44.0mm |
| Material | Metal |
| Protection |
ESD: Air discharge: ±8kV Contact discharge: ±6kV |
| Forwarding Mode | Store-and-forward |
|
Switch Capacity |
32Gbps |
| Packet Forwarding Rate | 23.80Mpps |
|
Buffer |
2Mb |
| MAC Address | 8K |
| Jombo Frame | N/A |
| Power | Input: 100-240V AC 50/60Hz |
| Power Consumption | Max:<12W |
| Mounting |
Desktop mounting: support Wall mounting: support Rack mounting:non-support |
| Environment |
Operating temperature: 0°C - 45℃ Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%) RH, non-condensing Storage humidity: (5% - 90%) RH, non-condensing |
| Certification | CE, FCC, RoHS |
| Protocols | CDMA/CD |
| MAC Address Learning | Auto-Learning and Auto-Aging |
| Functions | Plug and play |

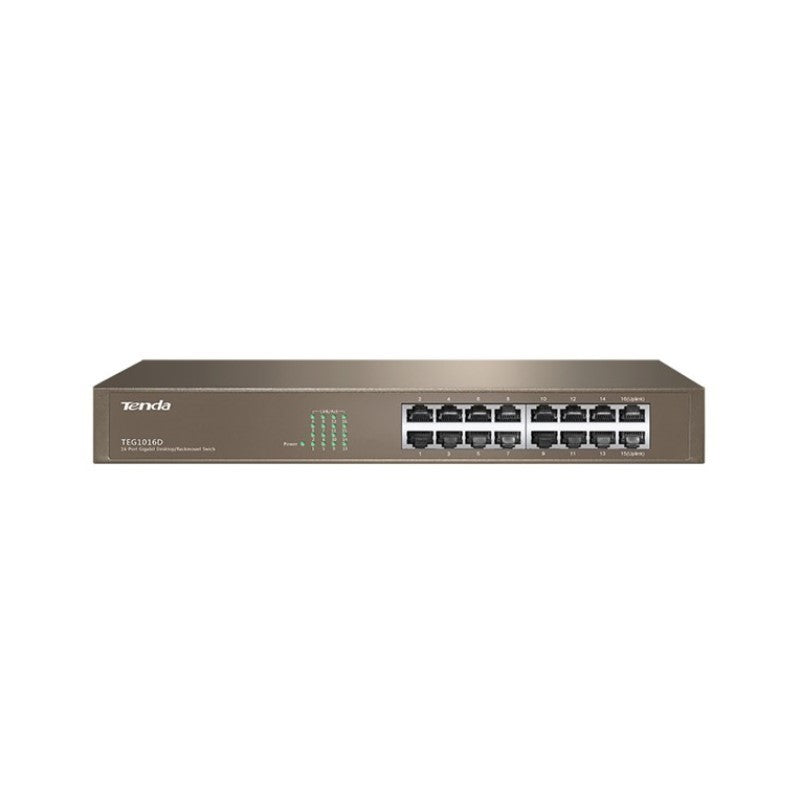

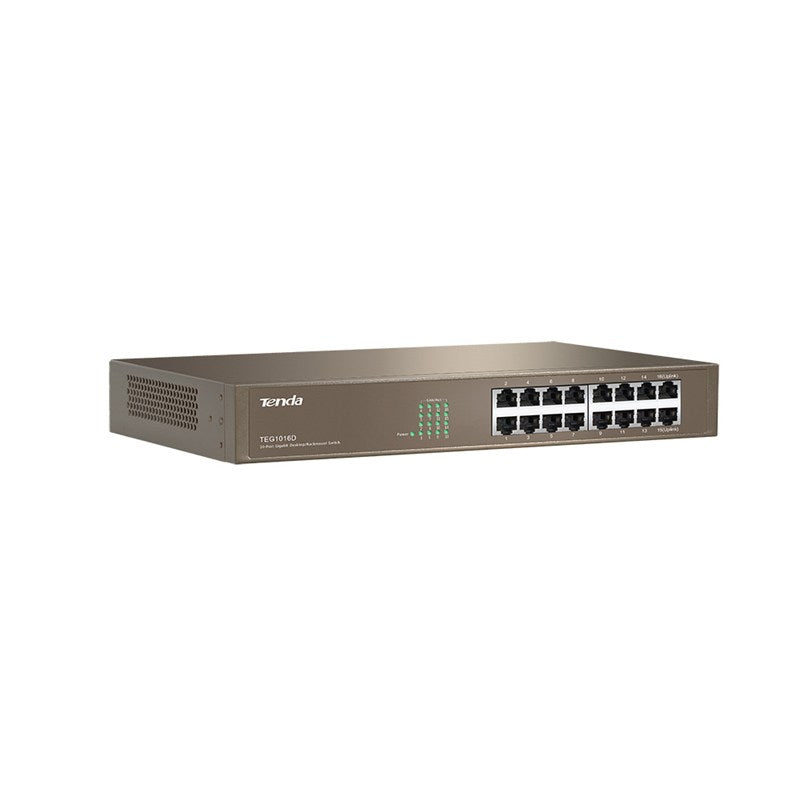

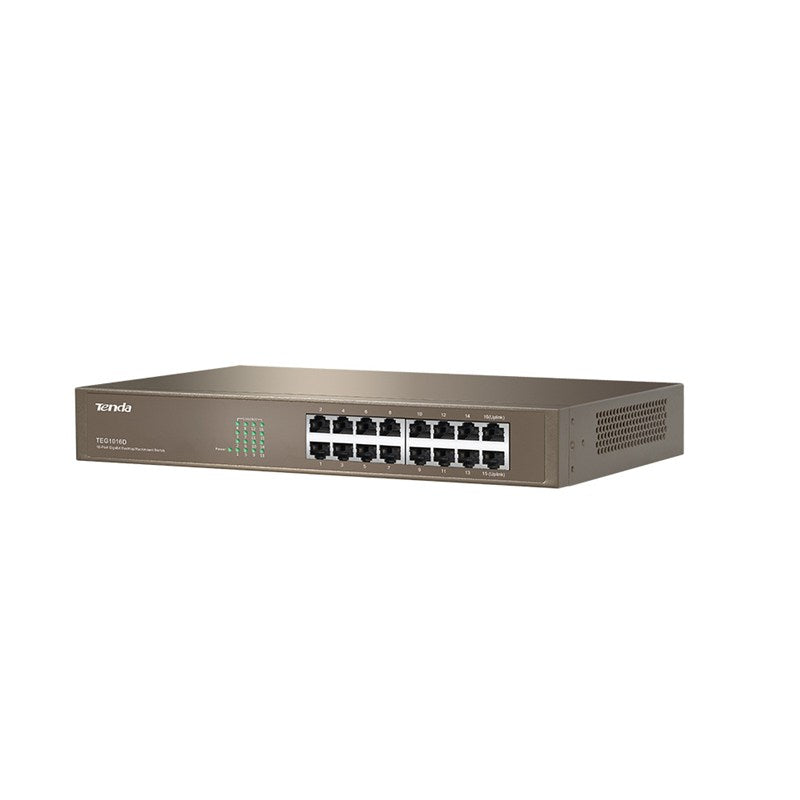

Tenda TEG1016D 16 Port RJ45 Desktop Switch
- Regular price
- $94.95
- Sale price
- $94.95
- Regular price
-
Tax included.
Shipping calculated at checkout.
FREE Shipping from NSW
Shipped from Sydney, NSW
All our stock is located & shipped from our warehouses in Mortdale or Silverwater NSW.
Free shipping sitewide from our Sydney warehouse
Shipped from Sydney, NSW
All our stock is located & shipped from our warehouses in Mortdale or Silverwater NSW.
Genuine & High Quality Product
Genuine & High Quality Product
At adapteroo, we're dedicated to providing you with genuine, high-quality products at unbeatable prices. We partner with reputable suppliers to ensure that only the best reaches our customers. Beyond the purchase, our responsive customer support ensures your satisfaction.
Why pay double the price anywhere else?
Genuine & High Quality Product
At adapteroo, we're dedicated to providing you with genuine, high-quality products at unbeatable prices. We partner with reputable suppliers to ensure that only the best reaches our customers. Beyond the purchase, our responsive customer support ensures your satisfaction.
Secure Payment
Pay with Paypal, Visa, Mastercard & more!
