Description
Features
- 24*10/100/1000 Mbps auto-negotiation RJ45 ports, up to 2000 Mbps of full duplex transmission rate, line-speed forwarding by all ports, and large cache capacity ensure the timely transfer of large files and stable streaming video. Stay connected for 7*24.
- Professional integrated lightning protection circuit enables all the 16 ports to provide IV-class (6 kV in common mode) lightning protection, effectively decreasing the damage rate to the ports by lightning surge.
- The built-in power supply module is designed with enhanced lightning protection, which can withstand 6 kV lightning surge, 3 times higher than other ordinary switches, effectively protecting the switch from being damaged by adverse thunderstorm.
- Full steel housing and plating through holes in three faces allow higher-efficient heat dissipation; fanless design ensures the noiselessness and dust free, harmoniously fitting into the offices; 13-inch size makes it mountable both on desktop and rack and plug and play function makes it easy for use.
Specifications
| Network standards | IEEE802.3、 IEEE802.3u、IEEE802.3x、 IEEE802.3ab |
| LED Indicator | 1* Power,24* Link/Act |
| Interfaces | 24*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX) |
| Tranmission Media | Recommended: CAT5/5e UTP or better |
| Fan Quantity | N/A |
| Dimension |
294.0mm x 178.0mm x 44.0mm |
| Material | Metal |
| Protection |
ESD: Air discharge: ±8kV Contact discharge: ±6kV |
| Forwarding Mode | Store-and-forward |
|
Switch Capacity |
48Gbps |
| Packet Forwarding Rate | 35.60Mpps |
|
Buffer |
2Mb |
| MAC Address | 8K |
| Jombo Frame | N/A |
| Power | Input: 100-240V AC 50/60Hz |
| Power Consumption | Max:<12W |
| Mounting |
Desktop mounting: support Wall mounting: support Rack mounting:non-support |
| Environment |
Operating temperature: 0°C - 45℃ Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%) RH, non-condensing Storage humidity: (5% - 90%) RH, non-condensing |
| Certification | CE, FCC, RoHS |
| Protocols | CDMA/CD |
| MAC Address Learning | Auto-Learning and Auto-Aging |
| Functions | Plug and play |
Description
Features
- 24*10/100/1000 Mbps auto-negotiation RJ45 ports, up to 2000 Mbps of full duplex transmission rate, line-speed forwarding by all ports, and large cache capacity ensure the timely transfer of large files and stable streaming video. Stay connected for 7*24.
- Professional integrated lightning protection circuit enables all the 16 ports to provide IV-class (6 kV in common mode) lightning protection, effectively decreasing the damage rate to the ports by lightning surge.
- The built-in power supply module is designed with enhanced lightning protection, which can withstand 6 kV lightning surge, 3 times higher than other ordinary switches, effectively protecting the switch from being damaged by adverse thunderstorm.
- Full steel housing and plating through holes in three faces allow higher-efficient heat dissipation; fanless design ensures the noiselessness and dust free, harmoniously fitting into the offices; 13-inch size makes it mountable both on desktop and rack and plug and play function makes it easy for use.
Specifications
| Network standards | IEEE802.3、 IEEE802.3u、IEEE802.3x、 IEEE802.3ab |
| LED Indicator | 1* Power,24* Link/Act |
| Interfaces | 24*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX) |
| Tranmission Media | Recommended: CAT5/5e UTP or better |
| Fan Quantity | N/A |
| Dimension |
294.0mm x 178.0mm x 44.0mm |
| Material | Metal |
| Protection |
ESD: Air discharge: ±8kV Contact discharge: ±6kV |
| Forwarding Mode | Store-and-forward |
|
Switch Capacity |
48Gbps |
| Packet Forwarding Rate | 35.60Mpps |
|
Buffer |
2Mb |
| MAC Address | 8K |
| Jombo Frame | N/A |
| Power | Input: 100-240V AC 50/60Hz |
| Power Consumption | Max:<12W |
| Mounting |
Desktop mounting: support Wall mounting: support Rack mounting:non-support |
| Environment |
Operating temperature: 0°C - 45℃ Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%) RH, non-condensing Storage humidity: (5% - 90%) RH, non-condensing |
| Certification | CE, FCC, RoHS |
| Protocols | CDMA/CD |
| MAC Address Learning | Auto-Learning and Auto-Aging |
| Functions | Plug and play |

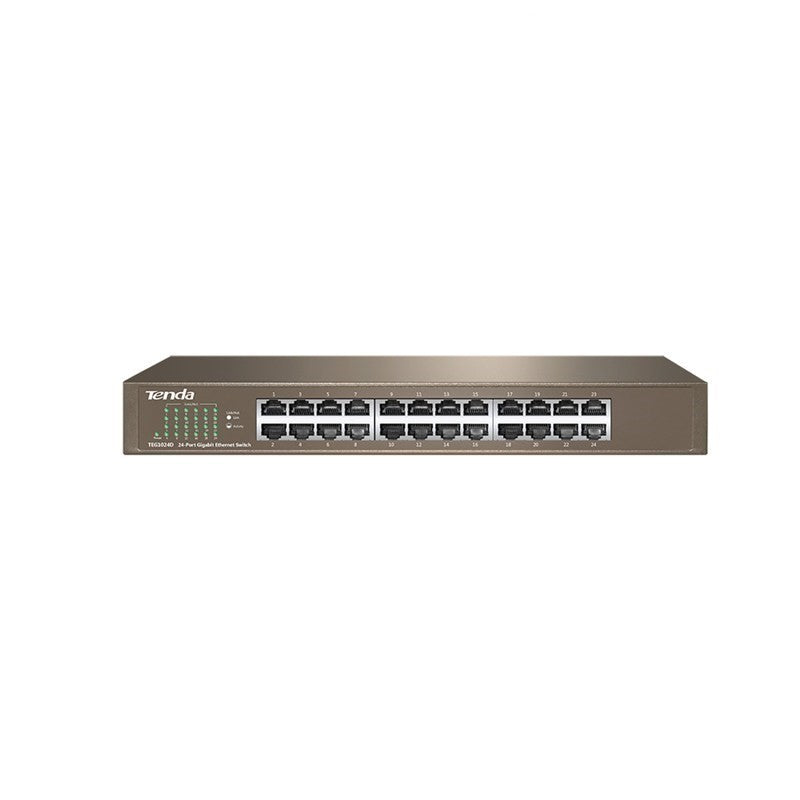

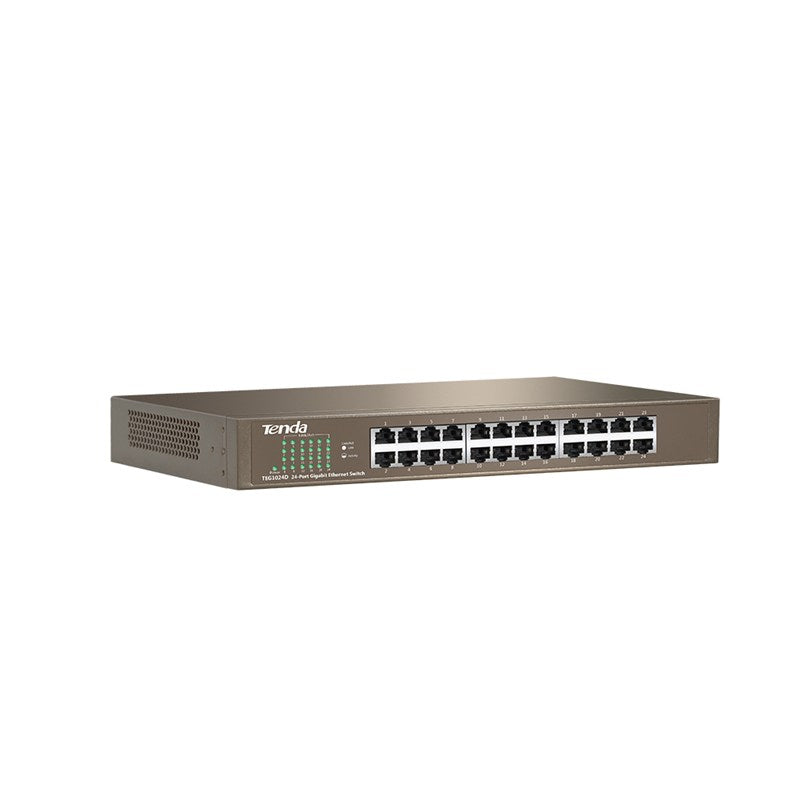

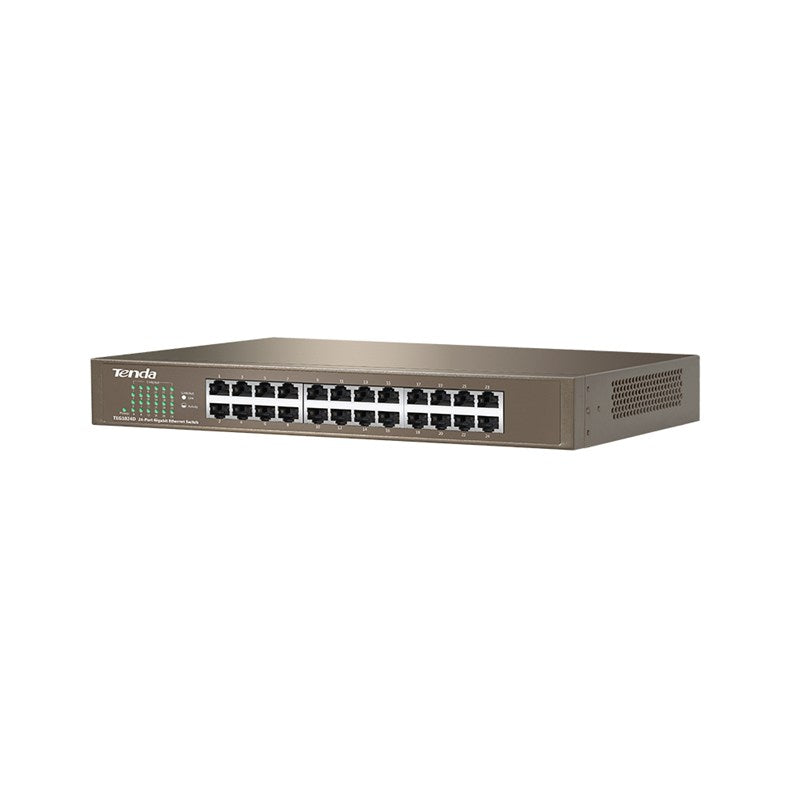

Tenda TEG1024D 24 Port RJ45 Desktop Switch
