Description
Features
- Provides four 10/100/1000 Mbps PoE OUT ports (ports 1 to 4) compliant with IEEE 802.3af and one 10/100/1000 Mbps PoE IN port (port 5) compliant with IEEE 802.3af/at.
- Maximum PoE output power of the whole switch is 30 W. The switch can supply power and transmit data to low-power APs and IP cameras through CAT5 cables
- 5 ports of TEG1105PD are all gigabit ports, with 4 PoE OUT ports (ports 1 to 4) and 1 PoE IN port (port 5). The switch can be powered by the IEEE 802.3af/at compliant PSE through port 5 with an Ethernet cable, and supply power to such PDs as low-power APs and IP cameras through ports 1 to 4
- Gigabit speed without reduction within 200m and stable transmission with interference or dropout
- TEG1105PD does not require independent power supply, just plug and play, no need to consider the power supply during the network deployment
- 6KV lightning protection, Stable operation in thunderstorm environment
- TEG1105PD has a compact shell, about the size of two splicing bank cards, and can be easily installed in a weak electric box or an outdoor waterproof box. All-steel shell, sturdy and durable
| Network standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at |
| LED Indicator |
1* Power LED indicator 4* PoE LED indicators 5* Link/Act LED indicators |
| Interfaces |
4*10/100/1000 Base-T Ethernet Ports(Data/PoE UT) 1*10/100/1000 Base-T Ethernet Port(Data/PoE IN) |
| Tranmission Media | Recommended: CAT5/5e UTP or better |
| Fan Quantity | N/A |
| Dimension | 100.0 mm x 100.0 mm x 26.0 mm |
| Protection |
Lightning protection for ports: 6kV Lightning protection for power: 6kV ESD: Air discharge: ±10kV Contact discharge: ±8kV |
| Forwarding Mode | Store-and-forward |
|
Switch Capacity |
10 Gbps |
| Packet Forwarding Rate | 7.44Mpps |
|
Buffer |
1 Mb |
| MAC Address | 2K |
| Jombo Frame | 9K |
| PoE Budget | Single port: AF: 15.4W |
| Power Consumption | / |
| Input Voltage |
50-57V DC, 0.6A |
| Mounting |
Desktop mounting: support Wall mounting: support Rack mounting:non-support |
| Environment |
Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Certification | FCC、CE、RoHS |
| Functions | - |
Description
Features
- Provides four 10/100/1000 Mbps PoE OUT ports (ports 1 to 4) compliant with IEEE 802.3af and one 10/100/1000 Mbps PoE IN port (port 5) compliant with IEEE 802.3af/at.
- Maximum PoE output power of the whole switch is 30 W. The switch can supply power and transmit data to low-power APs and IP cameras through CAT5 cables
- 5 ports of TEG1105PD are all gigabit ports, with 4 PoE OUT ports (ports 1 to 4) and 1 PoE IN port (port 5). The switch can be powered by the IEEE 802.3af/at compliant PSE through port 5 with an Ethernet cable, and supply power to such PDs as low-power APs and IP cameras through ports 1 to 4
- Gigabit speed without reduction within 200m and stable transmission with interference or dropout
- TEG1105PD does not require independent power supply, just plug and play, no need to consider the power supply during the network deployment
- 6KV lightning protection, Stable operation in thunderstorm environment
- TEG1105PD has a compact shell, about the size of two splicing bank cards, and can be easily installed in a weak electric box or an outdoor waterproof box. All-steel shell, sturdy and durable
| Network standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at |
| LED Indicator |
1* Power LED indicator 4* PoE LED indicators 5* Link/Act LED indicators |
| Interfaces |
4*10/100/1000 Base-T Ethernet Ports(Data/PoE UT) 1*10/100/1000 Base-T Ethernet Port(Data/PoE IN) |
| Tranmission Media | Recommended: CAT5/5e UTP or better |
| Fan Quantity | N/A |
| Dimension | 100.0 mm x 100.0 mm x 26.0 mm |
| Protection |
Lightning protection for ports: 6kV Lightning protection for power: 6kV ESD: Air discharge: ±10kV Contact discharge: ±8kV |
| Forwarding Mode | Store-and-forward |
|
Switch Capacity |
10 Gbps |
| Packet Forwarding Rate | 7.44Mpps |
|
Buffer |
1 Mb |
| MAC Address | 2K |
| Jombo Frame | 9K |
| PoE Budget | Single port: AF: 15.4W |
| Power Consumption | / |
| Input Voltage |
50-57V DC, 0.6A |
| Mounting |
Desktop mounting: support Wall mounting: support Rack mounting:non-support |
| Environment |
Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Certification | FCC、CE、RoHS |
| Functions | - |

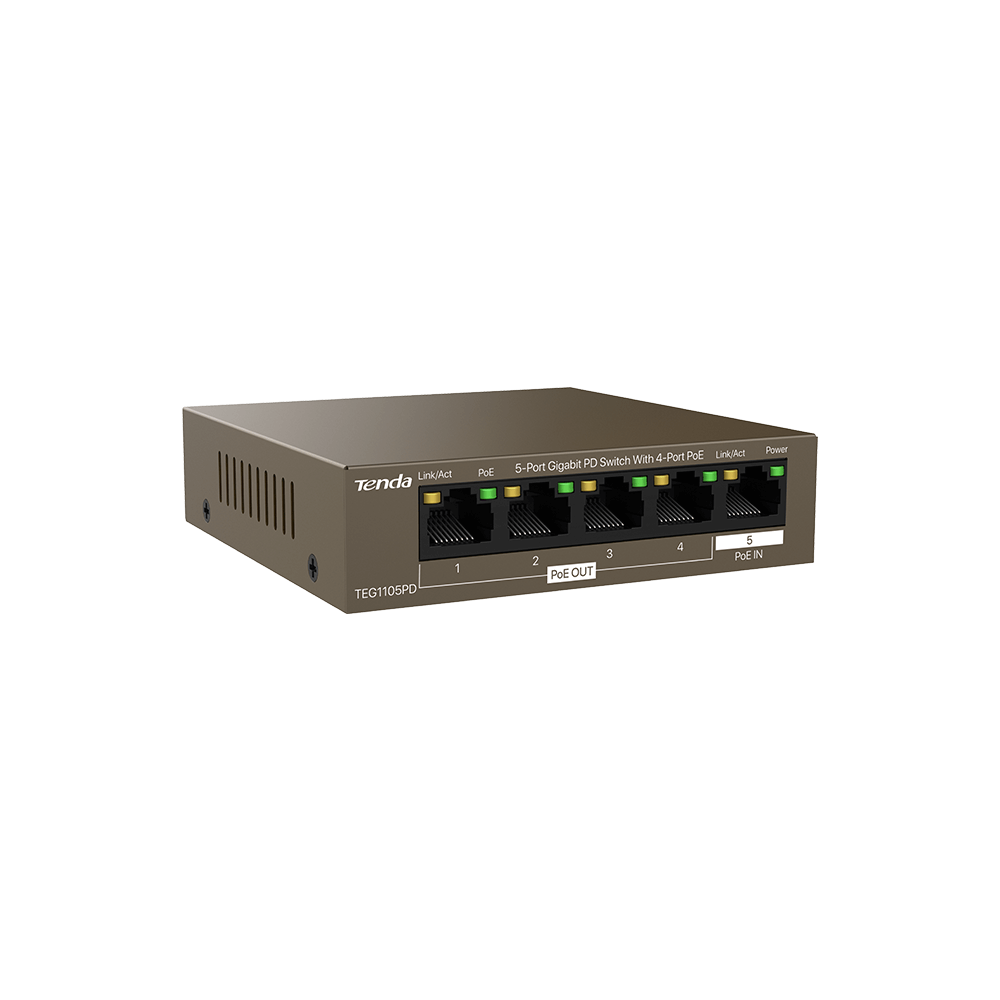

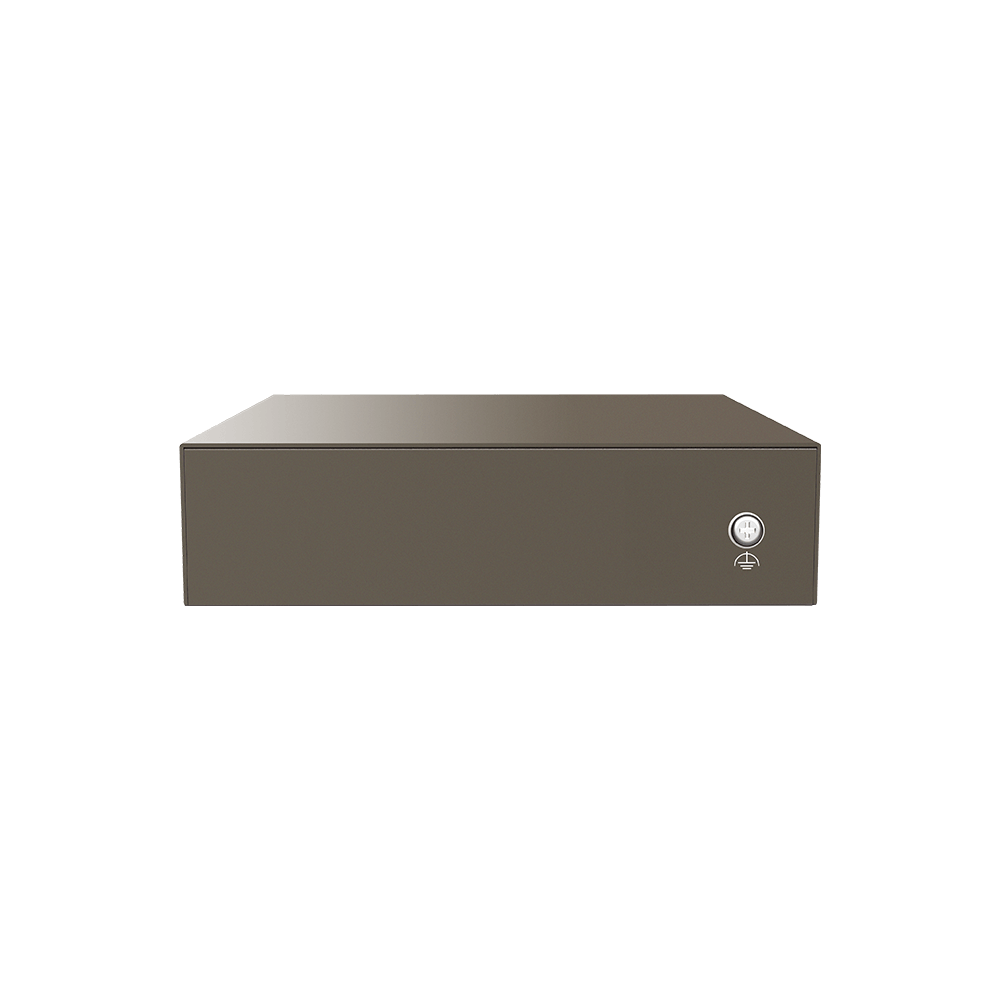

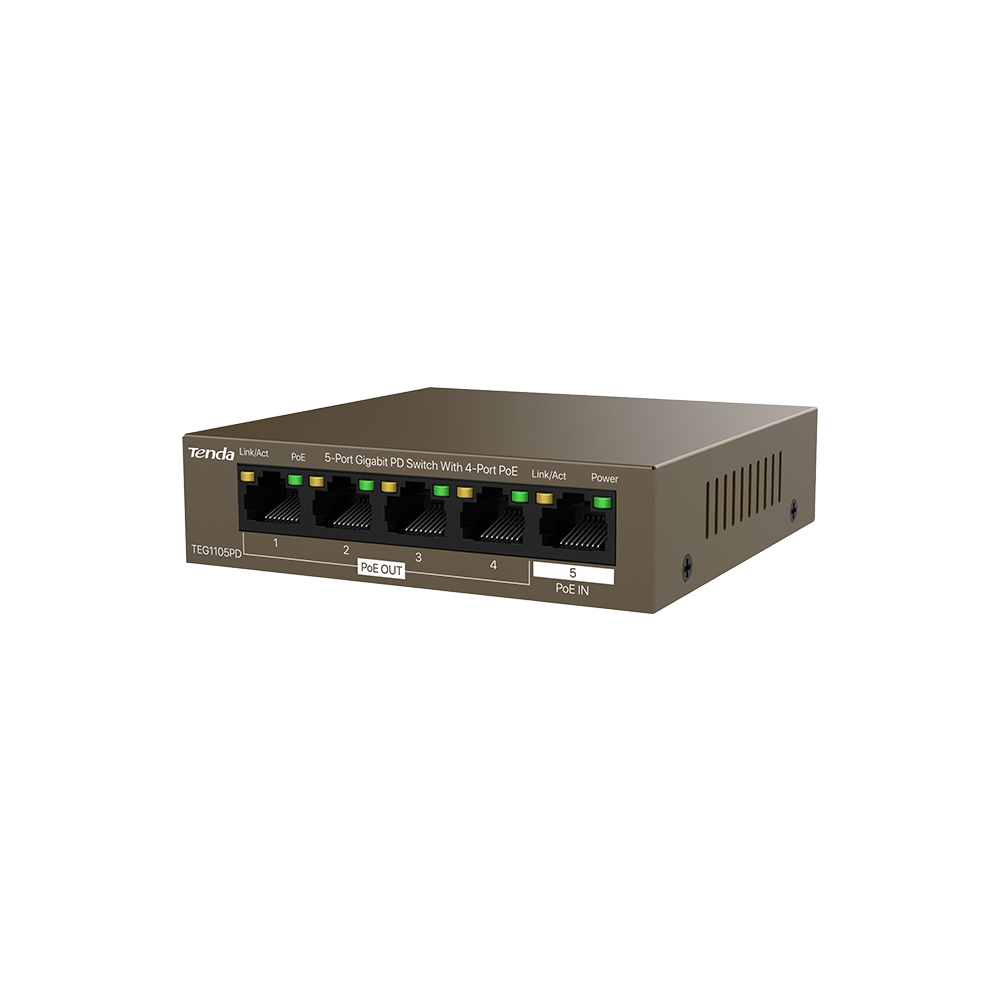

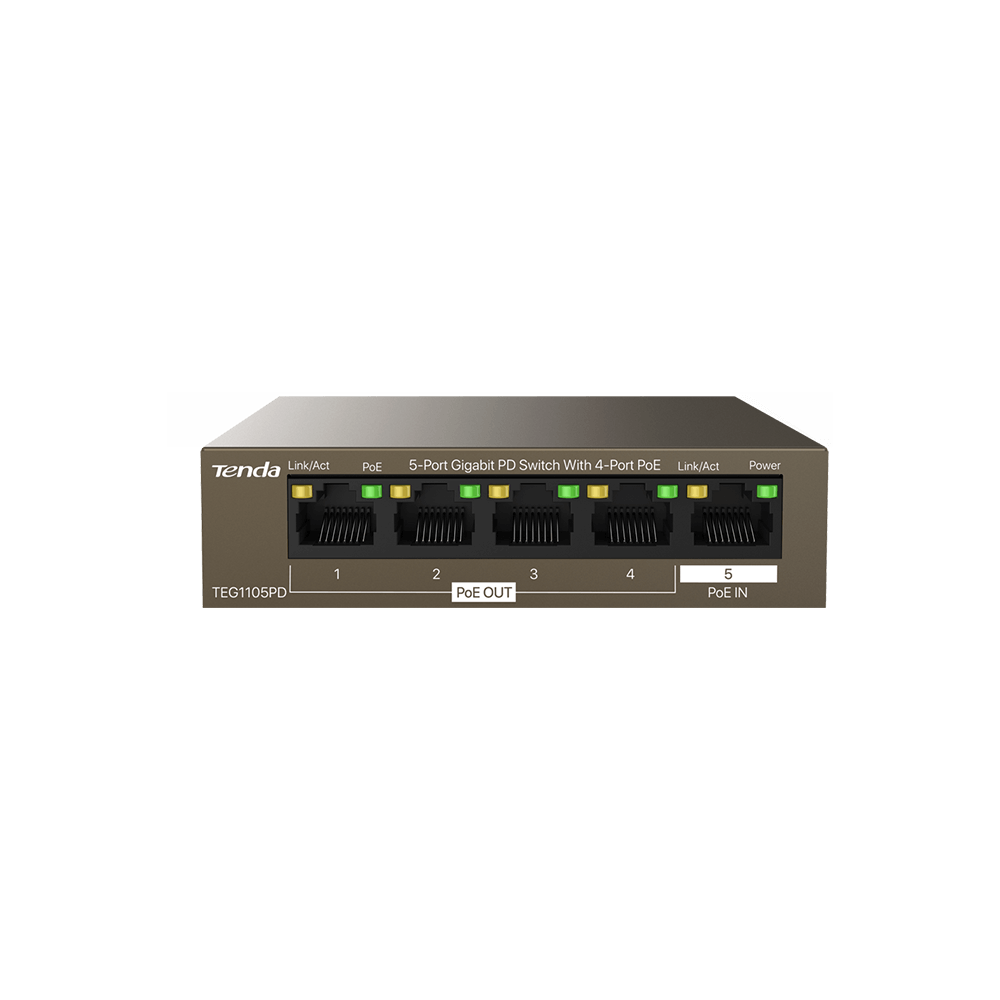

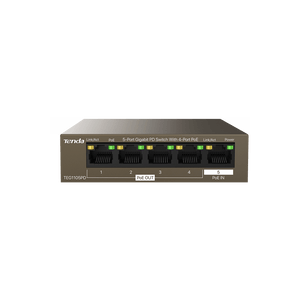

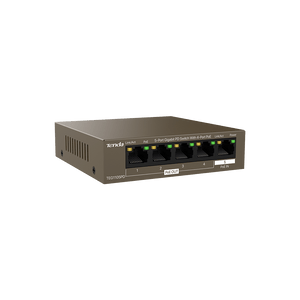

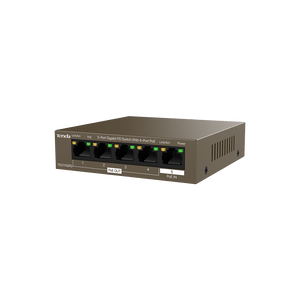

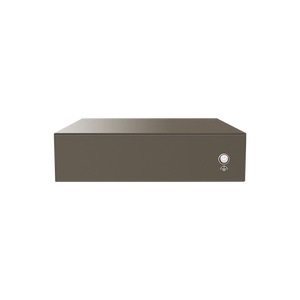

Tenda TEG1105PD 5 Port Gigabit Switch with 4 Port PoE
