Description
Features
- TEG1109P-8-102W is the gigabit unmanaged lightning protection switch which is Tenda specifically developed for requirement of building Gigabit WLAN and HD camera monitor network.With high-performance access, 9-10/100/1000M Base-T Ethernet RJ45 ports; 6KV lightning-proof for all port; every single port support MDI/MDIX and wired speed; PoE ports supports IEEE802.3at/af standard while detecting and recognizing the IEEE802.3at/af standard power device automatically
- Switch supports 6 kV lightning protection for all port, protecting the switch from thunderstorms and making it more stable
- Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 92W the whole device
- 2Mb built-in packet buffer outstand in comparison, ensuring smooth transmission of large files and HD videos even when HD IP cameras of 500W are working simultaneously
- Integrated with Smart Power Management Chip Makes the Switch Get Rid of Overload
| Network standards | IEEE 802.3、 IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、 IEEE 802.3af、IEEE 802.3at |
| LED Indicator |
9* Link/Ack LED indicators 1 * Power LED indicator |
| Interfaces |
8*10/100/1000 Base-T Ethernet Ports(Data/Power) 1*10/100/1000 Base-T Ethernet Ports(Data) |
| Tranmission Media | Recommended: CAT5/5e UTP or better |
| Fan Quantity | N/A |
| Dimension | 177.5mmx104.0mmx26.0mm |
| Protection |
Lightning protection for ports: 6kV Lightning protection for power: 6kV ESD: Air discharge: ±10kV Contact discharge: ±8kV |
| Forwarding Mode | Store-and-forward |
|
Switch Capacity |
18 Gbps |
| Packet Forwarding Rate | 13.4Mpps |
|
Buffer |
2M |
| MAC Address | 16K |
| Jombo Frame | - |
| PoE Budget |
Single port: AF: 15.4W, AT: 30W Whole device: 92W |
| Power Consumption | / |
| Input Voltage |
100-240V AC 50/60Hz 51V /2.0A DC（Power Adapter Output ） |
| Mounting |
Desktop mounting: support Wall mounting: support Rack mounting:non-support |
| Environment |
Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Certification | FCC、CE、RoHS |
| Functions |
Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. VLAN: ports 1 to 8 are isolated from each other, but can communicate with ports 9 (uplink port) respectively. |
Description
Features
- TEG1109P-8-102W is the gigabit unmanaged lightning protection switch which is Tenda specifically developed for requirement of building Gigabit WLAN and HD camera monitor network.With high-performance access, 9-10/100/1000M Base-T Ethernet RJ45 ports; 6KV lightning-proof for all port; every single port support MDI/MDIX and wired speed; PoE ports supports IEEE802.3at/af standard while detecting and recognizing the IEEE802.3at/af standard power device automatically
- Switch supports 6 kV lightning protection for all port, protecting the switch from thunderstorms and making it more stable
- Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 92W the whole device
- 2Mb built-in packet buffer outstand in comparison, ensuring smooth transmission of large files and HD videos even when HD IP cameras of 500W are working simultaneously
- Integrated with Smart Power Management Chip Makes the Switch Get Rid of Overload
| Network standards | IEEE 802.3、 IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、 IEEE 802.3af、IEEE 802.3at |
| LED Indicator |
9* Link/Ack LED indicators 1 * Power LED indicator |
| Interfaces |
8*10/100/1000 Base-T Ethernet Ports(Data/Power) 1*10/100/1000 Base-T Ethernet Ports(Data) |
| Tranmission Media | Recommended: CAT5/5e UTP or better |
| Fan Quantity | N/A |
| Dimension | 177.5mmx104.0mmx26.0mm |
| Protection |
Lightning protection for ports: 6kV Lightning protection for power: 6kV ESD: Air discharge: ±10kV Contact discharge: ±8kV |
| Forwarding Mode | Store-and-forward |
|
Switch Capacity |
18 Gbps |
| Packet Forwarding Rate | 13.4Mpps |
|
Buffer |
2M |
| MAC Address | 16K |
| Jombo Frame | - |
| PoE Budget |
Single port: AF: 15.4W, AT: 30W Whole device: 92W |
| Power Consumption | / |
| Input Voltage |
100-240V AC 50/60Hz 51V /2.0A DC（Power Adapter Output ） |
| Mounting |
Desktop mounting: support Wall mounting: support Rack mounting:non-support |
| Environment |
Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Certification | FCC、CE、RoHS |
| Functions |
Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. VLAN: ports 1 to 8 are isolated from each other, but can communicate with ports 9 (uplink port) respectively. |

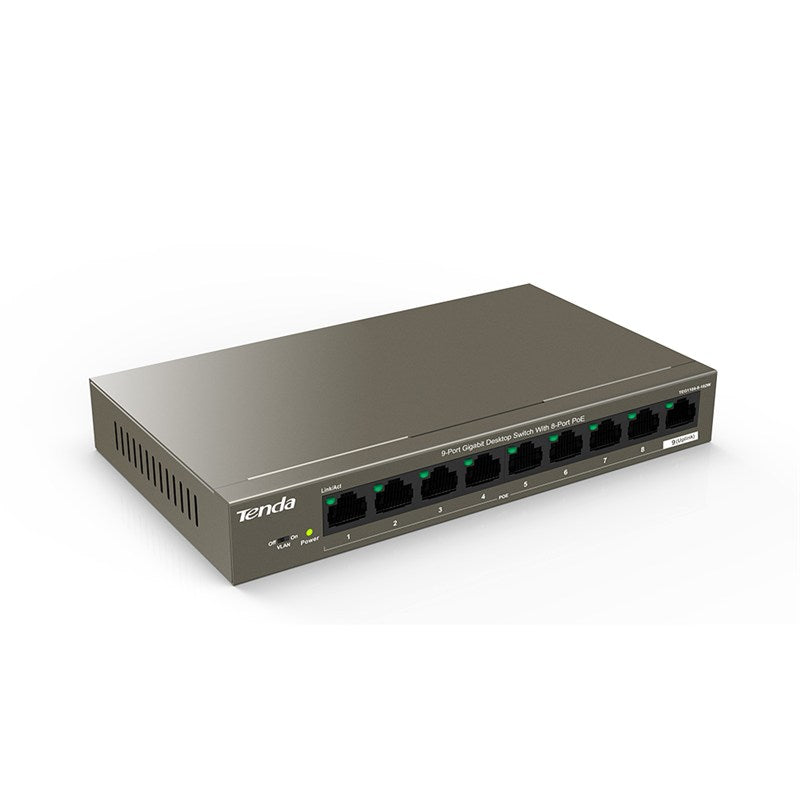

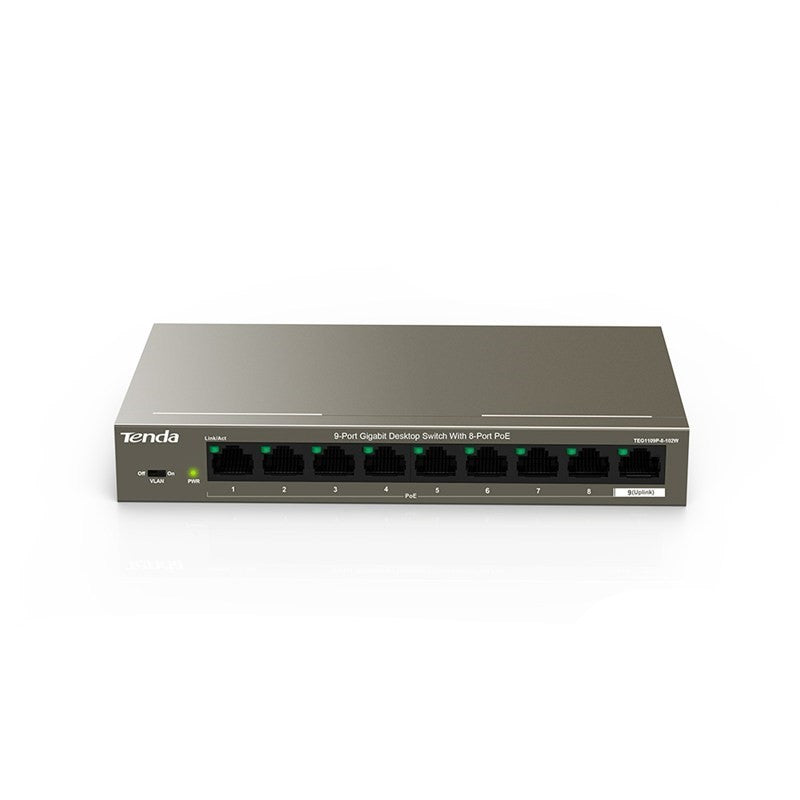

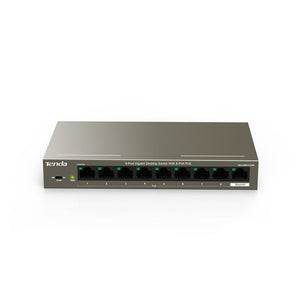

Tenda TEG1109P-8-102W 9 Port Gigabit Switch with 8 Port PoE
