Features

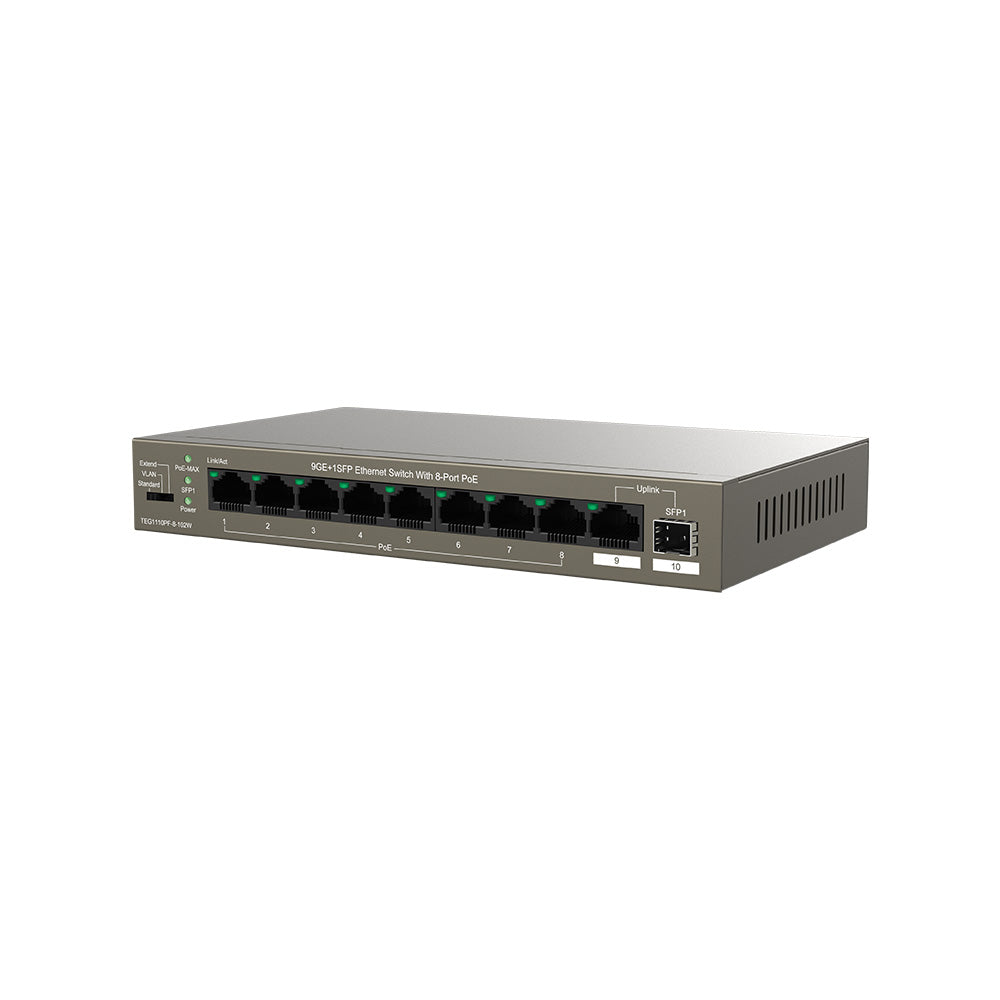

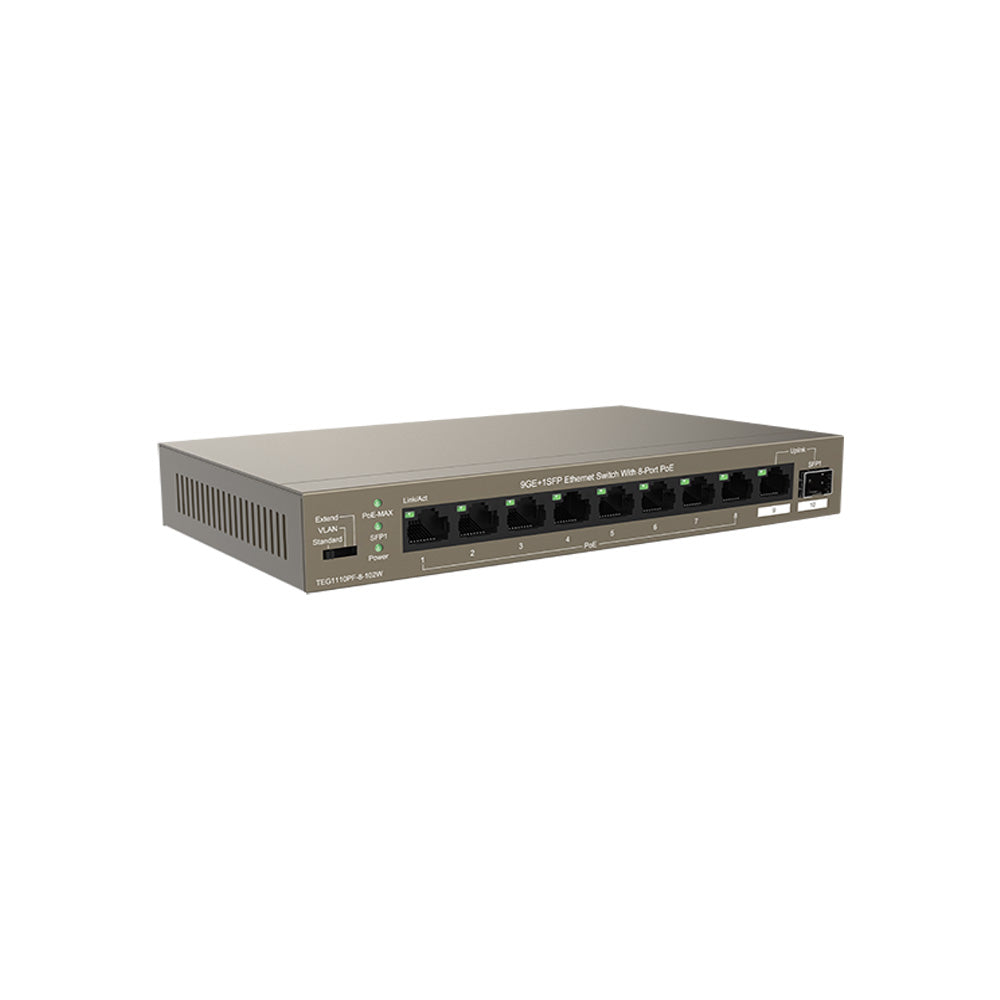

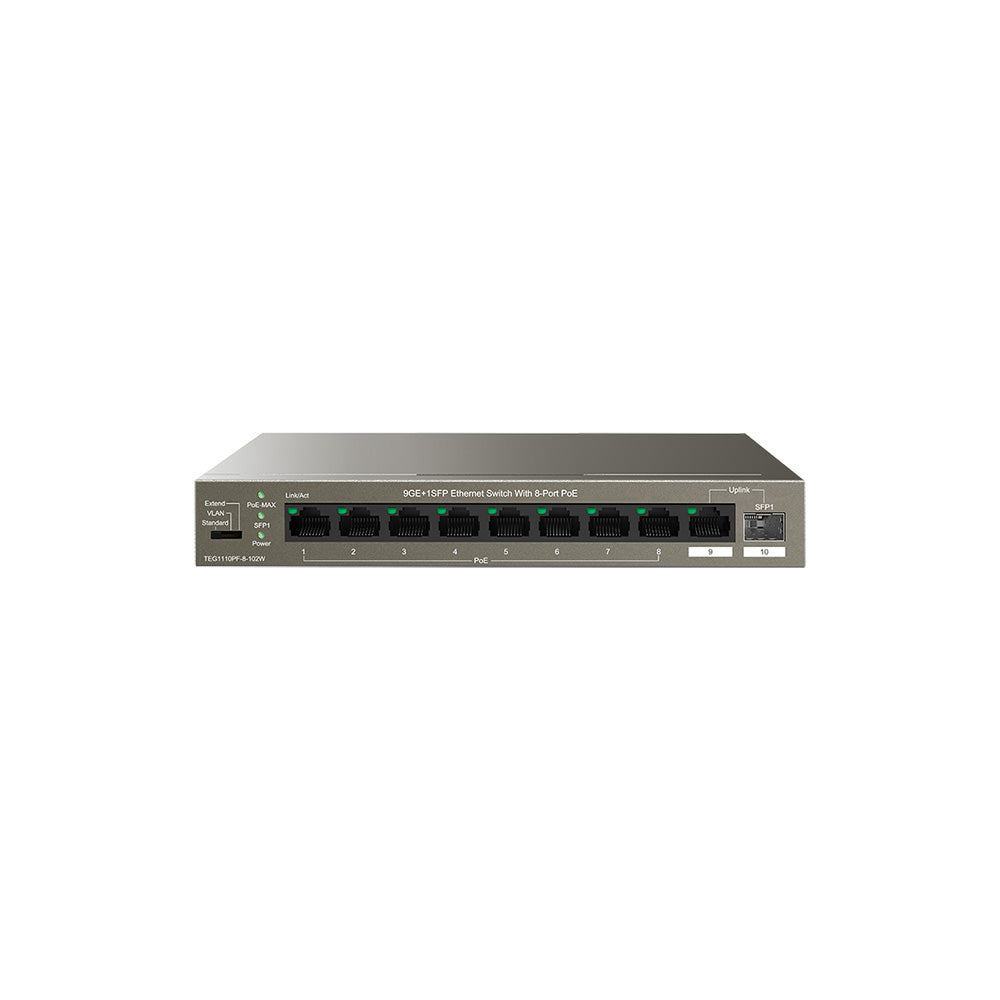

• TEG1110PF-8-102W is a 10-port gigabit Ethernet unmanaged PoE switch independently designed by Tenda. It supports IEEE 802.3af/at standards for PoE power supply, capable of transmitting data and supplying power for 8 HD PoE cameras or gigabit APs. The maximum PoE output of a single port is 30 W and the total power consumption of the switch is 102W.Supporting three-mode toggle
• Full gigabit ports, 20 Gbps non-blocking line speed forwarding, greatly improve the forwarding rate of large files, ensure smooth and stable transmission of large files and HD videos
• Chip provides intelligent power management function. When the power supply exceeds the rated power of the PoE switch (92W), the low-priority port is automatically powered off to avoid overload and prolong the service life of the PoE switch
• 3 Modes For More Scenarios, One-key To Change Smart And Easy
• Mode 1 : Standard
  Default mode of the switch. In this mode, it works as an unmanaged switch; all ports can communicate with each other separately
• Mode 2 : VLAN
  In this mode, ports 1 - 8 are isolated from each other, but all of them can communicate with port 9 and SFP1. This mode helps isolate DHCP broadcast and reduce broadcast storms
• Mode 3 : Extend
  In this mode, all ports can communicate with each other, and the transmission distance of 1-8 ports can be extended to 250m
• Supports 6 kV lightning protection for ports and the power supply, reducing the risk of inductive lightning and ensuring stable operation even under thunderstorms
