Features

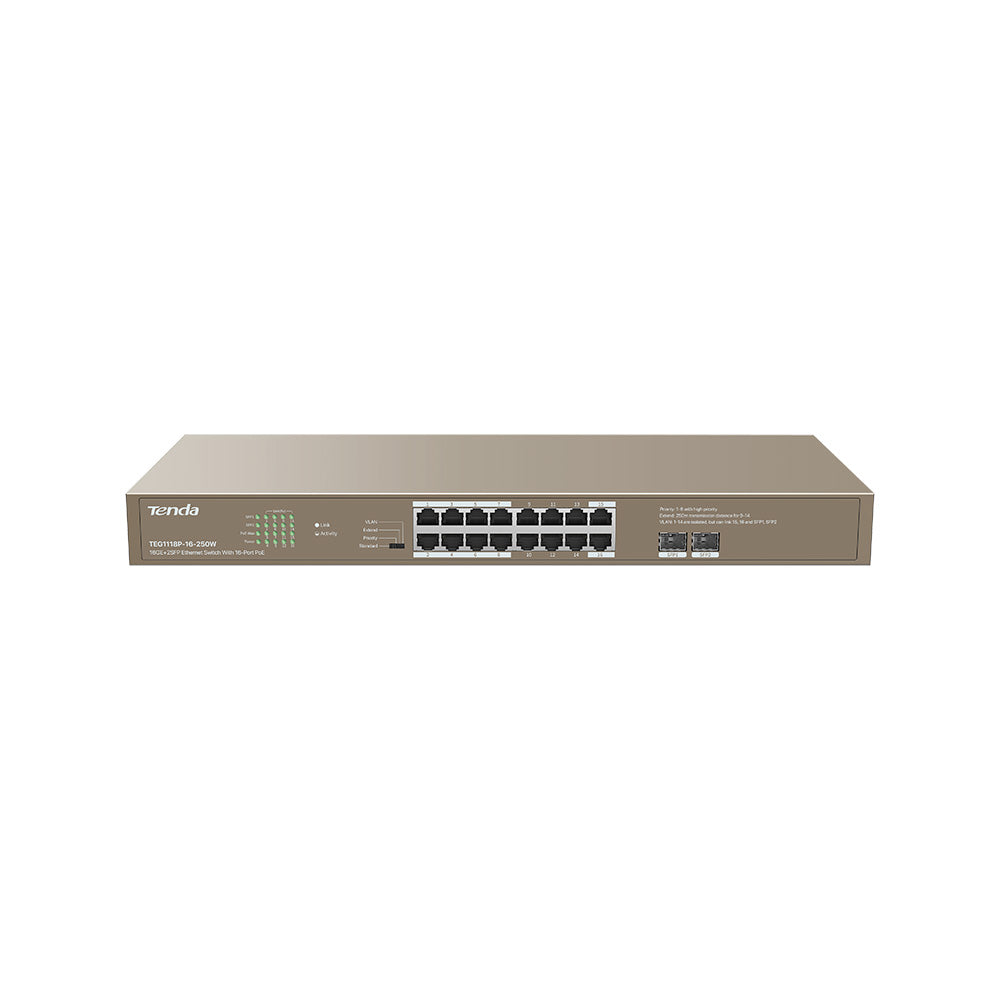

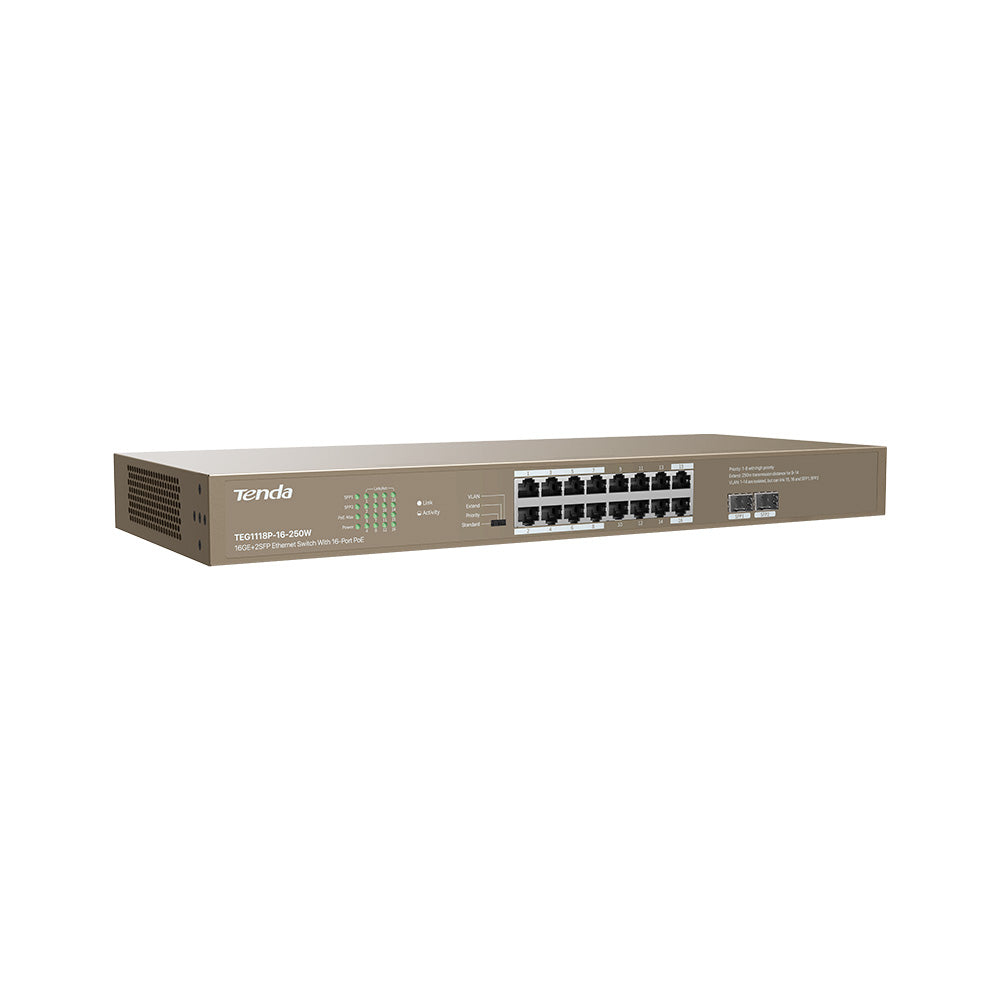

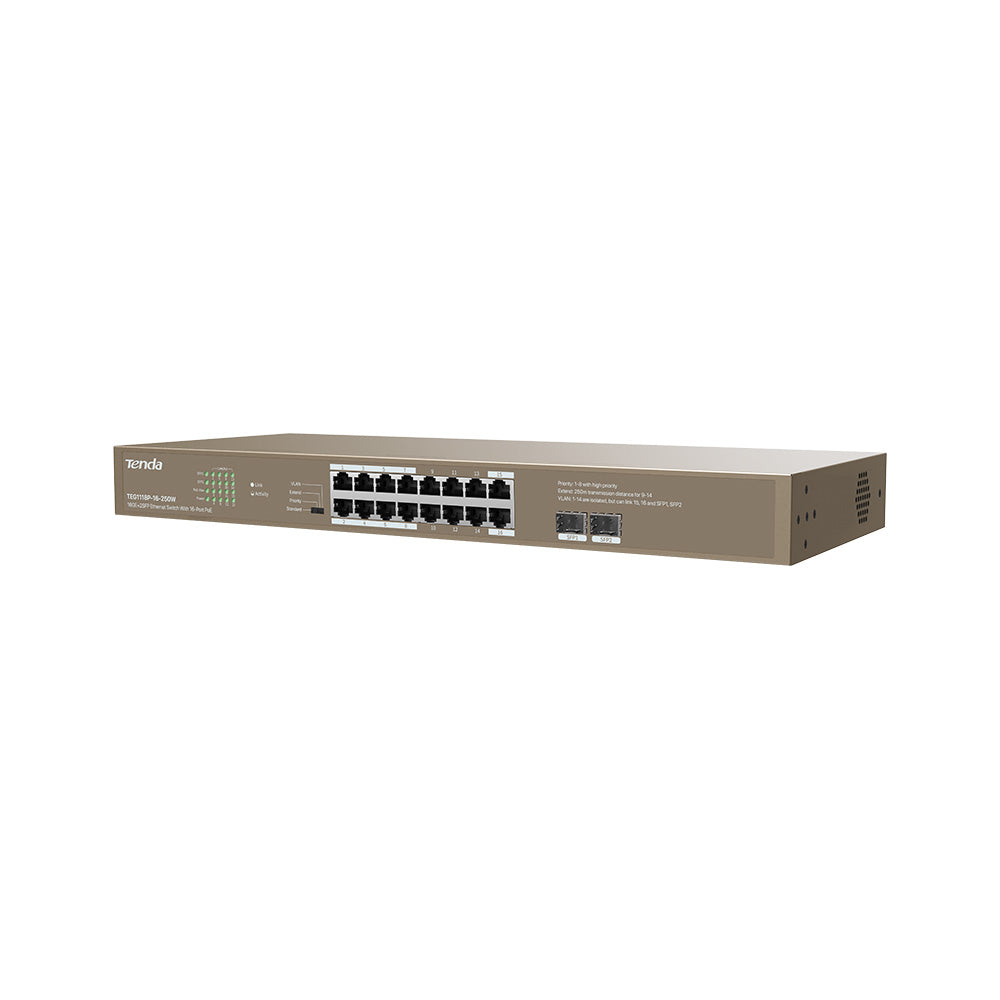

• TEG1118P-16-250W is a unmanaged PoE switch independently designed by Tenda. Compliant with IEEE 802.3af and IEEE 802.3at standards, it can identify PoE-powered devices intelligently. With a maximum PoE power output of 230W, and 30W for a single port, it can supply power when transmitting data with APs, IP cameras, and IP phones. The switch supports 4 working modes, including standard, priority, extend and VLAN modes
• Two 1000 Mbps SFP slots, the switch can meet the current demand for uplink bandwidth of Gigabit WLAN and HD digital surveillance
• 4 Modes For More Scenarios, One-key To Change Smart And Easy
• Standard Mode
  Default mode of the switch. In this mode, it works as an unmanaged switch;
  all ports can communicate with each other separately
• Priority Mode
  In this mode, port15,16,SFP1,SFP2 serve as uplink ports,
  ports 1–8 serve as high priority port. All ports can communicate with each other separately
• Extend Mode
  In this mode, data rate of ports 9-14 reduces to 10 Mbps,
  the maximum transmission distance can be 250 meters, and all ports can communicate with each other
• VLAN Mode
  In this mode, ports 1 to 14 of the switch can communicate with port 15, 16, SFP1,
  SFP2 separately, but cannot communicate with each other.
  You can enable this mode to reduce broadcast storm and isolate DHCP broadcast
• 6KV lightning protection
• Providing 16 100/1000M PoE ports in accordance with the IEEE802.3AF / AT standard, the maximum PoE output of the whole machine is 230W, and of a single port is 30W
