Description

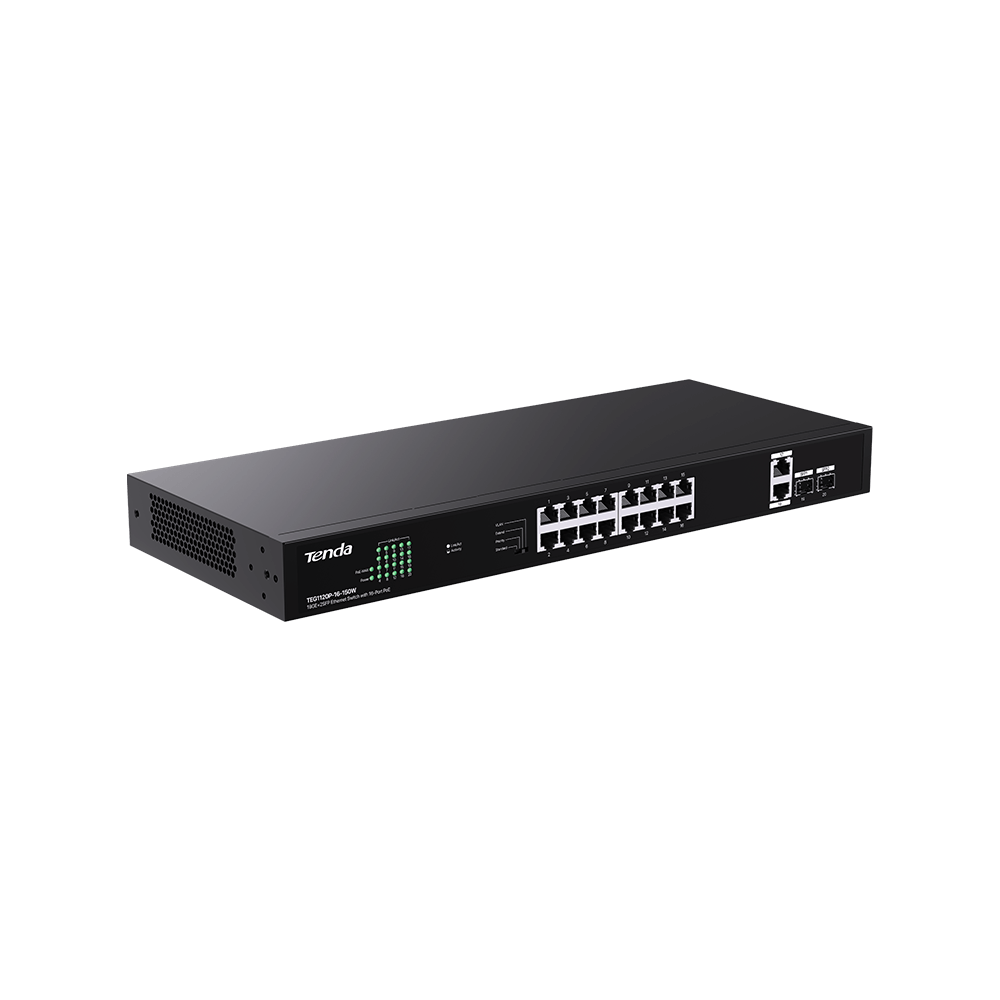

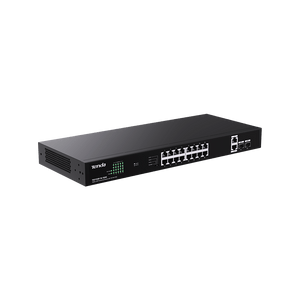

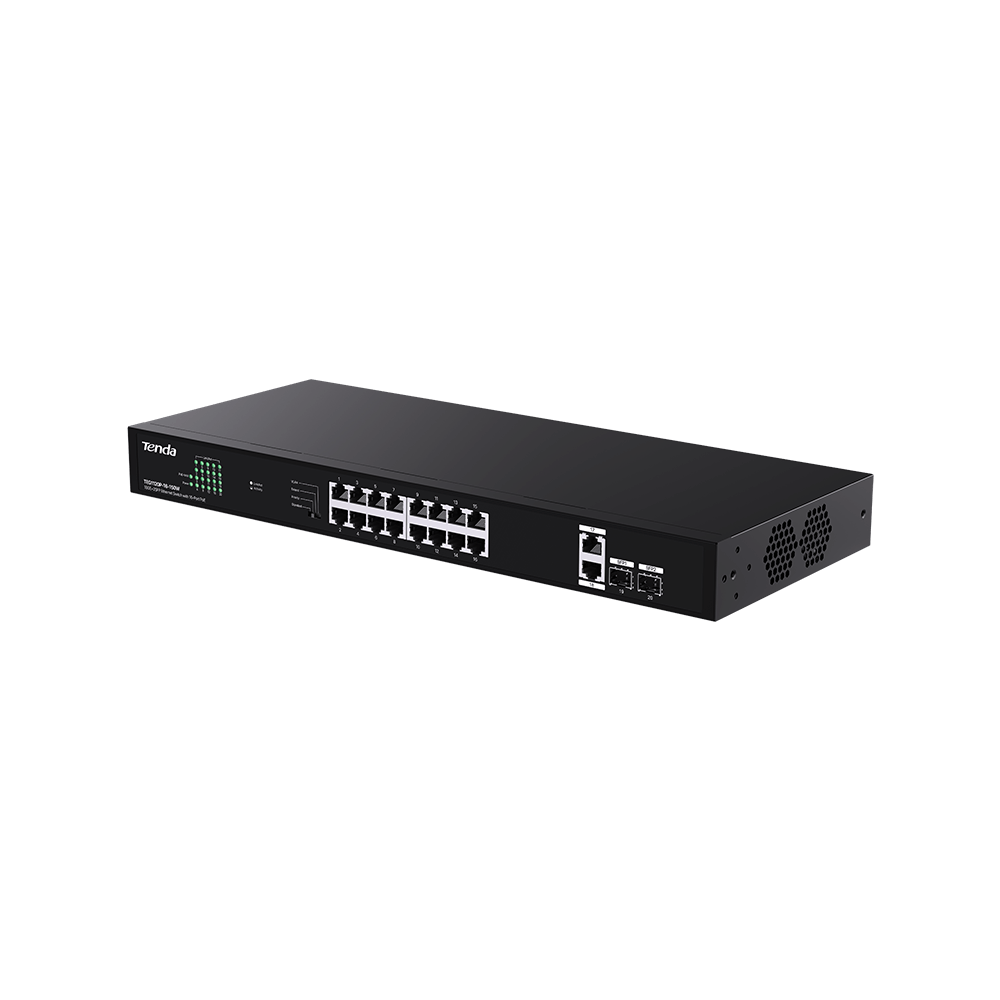

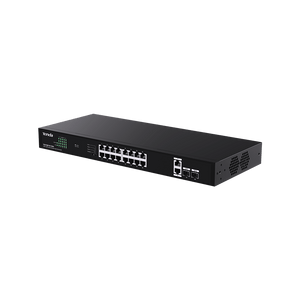

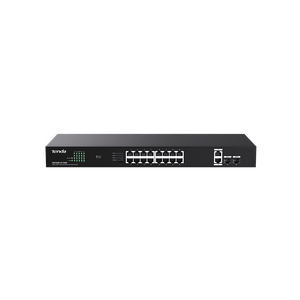

18GE + 2SFP Ethernet Switch with 16-Port PoE
Designed for SMB networking and surveillance, the Tenda TEG1120P-16-150W is an Ethernet switch offering a robust PoE solution.

Full Gigabit Ports & High-Speed Transmission: Equipped with 18 gigabit Ethernet ports and 2 SFP uplink ports, this switch delivers a switching capacity of 40 Gbps, ensuring smooth and stable transmission of large files and HD videos.
16 PoE Ports with 150W Power Output: In accordance with IEEE802.3AF/AT standards, it offers up to 30W per PoE port and a total power budget of 150W. This allows stable power supply and data transmission for HD PoE IP cameras, APs, and other devices.
4 Working Modes for Flexibility:
- Standard Mode: All ports can communicate, acting as a common non-managed PoE switch.
- Priority Mode: Ports 1-8 are prioritized, reducing packet loss and congestion during heavy traffic.
- Extend Mode: Extends transmission distance to 250 meters for ports 9-16.
- VLAN Mode: Isolates ports 1-16 to prevent broadcast storms and DHCP conflicts, allowing them to communicate only with ports 17-20.
Robust Design: The 19-inch metal body supports desktop, wall, or rack mounting for flexible installation in different environments.

Specifications

Network standards	IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/ IEEE 802.3af/IEEE 802.3at
LED Indicator	Power Link/Act PoE MAX
Interfaces	(18)1GE RJ45 ports (2)1GE SFP ports
Tranmission Media	Recommended: CAT5/5e UTP or better
Fan Quantity	1
Dimension	440mm178mm44mm
Material	Metal
Protection	Port: 6 KV Power：6 KV
Forwarding Mode	Store-and-forward
Switch Capacity	56Gbps
Packet Forwarding Rate	41.7Mpps
Buffer	4Mb
MAC Address	8K
Jombo Frame	N/A
Power	Input: AC:190-240V 50/60Hz DC:9-12V
Power Consumption	250W
Mounting	Desktop mounting: support Wall mounting: support Rack mounting:non-support
Environment	Operating temperature: 0°C - 45℃ Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%) RH, non-condensing Storage humidity: (5% - 90%) RH, non-condensing
Certification	CE, FCC, RoHS
Protocols	CDMA/CD
MAC Address Learning	Auto-Learning and Auto-Aging
Functions	One-key to change network mode: 1.Standard: All ports can communicate with each other. It can be used as a common non-management PoE switch. 2.Priority: Ports 1 to 8 are high-priority ports, which greatly reduce packet loss and congestion when the network is congested. 3.Extend: The maximum transmission distance of the 17-24 ports of the switch can reach 250 meters, and all ports can communicate with each other. 4.VLAN: Ports 1 to 24 cannot communicate with each other, but can communicate with ports 25, 26, SFP1 (27), and SFP2 (28), which can be used to isolate broadcast storms and DHCP conflicts.
