Description
Features

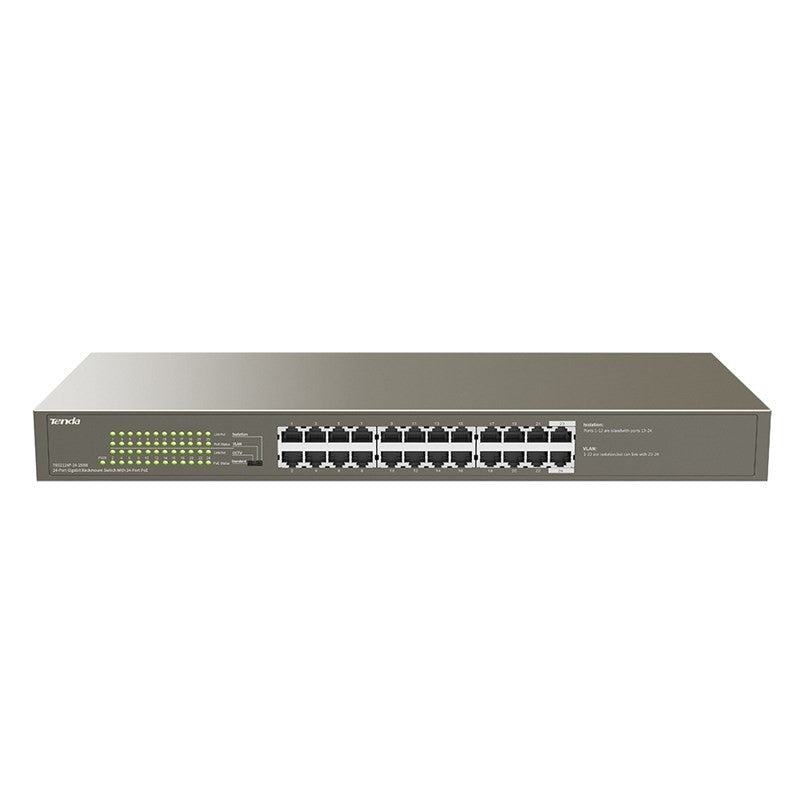

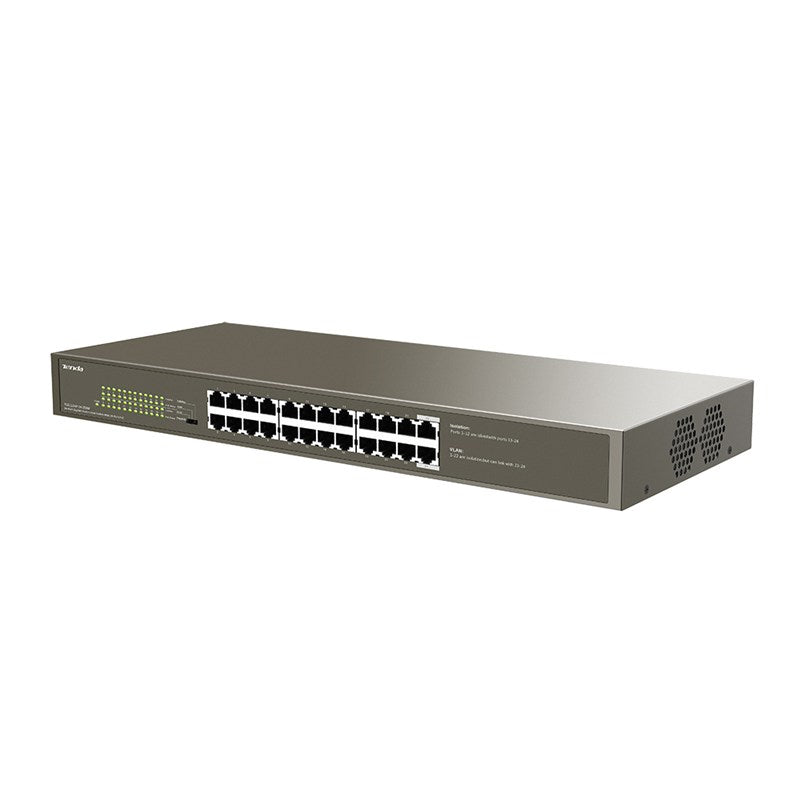

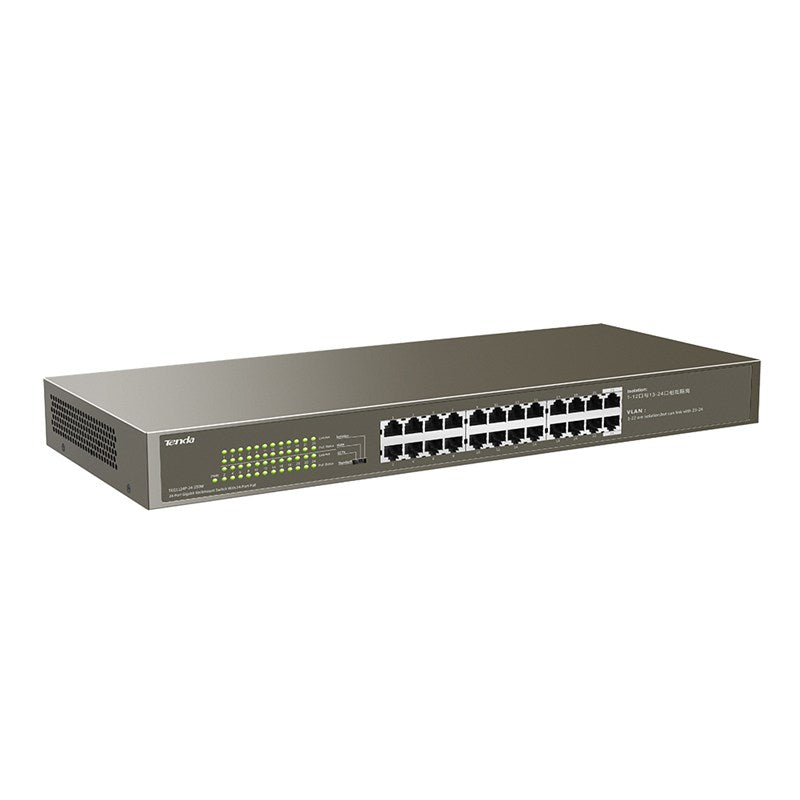

- TEG1124P-24-250W is a Tenda PoE switch that offers 24 10/100/1000 Mbps Base-TX RJ45 ports. Ports 1-24 comply with the IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3at standard (maximum PoE power output: 30 W). The switch offers a maximum PoE power output of 225 W and can supply power to and exchange data with APs, IP cameras, and IP phones through CAT5 cables
- 6KV lightning protection
-
Standard: The switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
CCTV: The port cache is optimized and PoE ports 1-8 have higher priorities over the other ports. All the ports of the switch can communicate with each other.
VLAN: Ports 1 to 22 are isolated from each other, but can communicate with ports 23 and 24 (uplink ports) respectively.
Isolation: Ports 1 to 12 and ports 13 to 24 belong to two different VLAN. This mode can be used to isolate supervision network and wireless network to make them not interfere with each other - Ports 1-24 comply with the IEEE802.3af and IEEE802.3at power supply standards. The entire switch offers a maximum PoE power output of 225W, whereas each port offers a maximum PoE power output of 30 W. The ports can be used to supply power to and exchange data with APs and IP cameras
| Network standards | IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/ IEEE 802.3af/IEEE 802.3at |
| LED Indicator |
24*Link/Act per device 24*PoE per device 1*Power per device |
| Interfaces | 24*10/100/1000 Base-T ports(Data/Power) |
| Tranmission Media | Recommended: CAT5/5e UTP or better |
| Fan Quantity | N/A |
| Dimension | 440.0mmx178.0mmx44.0mm |
| Protection |
Lightning protection for ports: 6kV Lightning protection for power: 6kV ESD: Air discharge: ±10kV Contact discharge: ±8kV |
| Forwarding Mode | Store-and-forward |
|
Switch Capacity |
48 Gbps |
| Packet Forwarding Rate | 35.7Mpps |
|
Buffer |
2M |
| MAC Address | 8K |
| Jombo Frame | - |
| PoE Budget |
Single port: AF: 15.4W, AT: 30W Whole device: 225W |
| Power Consumption | / |
| Input Voltage |
100-240V AC 50/60Hz |
| Mounting |
Desktop mounting: support Wall mounting: support Rack mounting:non-support |
| Environment |
Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Certification | FCC、CE、RoHS |
| Functions | - |
