Description
Features
- TEM2010F is an 8-port 2.5G Ethernet switch with 2 SFP ports independently designed by Tenda. The switch supports three-mode toggle and offers eight 2.5 Gbps RJ-45 ports and two 2.5 Gbps SFP ports, establishing high-speed network along with computers, NAS, TV set-up boxes, Wi-Fi 6 APs
- Equipped with 8*2.5G GE and 2*2.5G SFP, all ports support wire-speed forwarding. Through wired transmission, data service traffic is forwarded faster and achieves ultra-low latency
- It has 10*2.5G ports to connect high-speed network devices. It can stimulate the maximum potential of WIFI6AP. Compared with connecting with a Gigabit Ethernet switch, the performance is not limited and the experience is better
- Smooth upgrade, easily upgrade the whole house high-speed networking
- One-click to open the NAS dedicated mode, the transmission speed is doubled to 5G, and the efficiency is improved
- Mode 1：Standard Mode
Default mode of the switch. In this mode, it works as an unmanaged switch; all ports can communicate with each other separately - Mode 2：VLAN Mode
In this mode, ports 1 - 8 are isolated from each other, but all of them can communicate with port 9 and SFP1. This mode helps isolate DHCP broadcast and reduce broadcast storms - Mode 3：Static Aggregation（NAS Dedicated Mode ）
Group 1: 7-8; Group 2: 9-10. For dual-port 2.5G NAS, up to 5 Gbps - The switch supports 6 kV lightning protection for ports and the power supply, reducing the risk of inductive lightning and ensuring stable operation even under thunderstorms
Specifications
| Network standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3bz，IEEE 802.3cb |
| LED Indicator |
Two Link/Act LED indicators for each port One Power LED indicator for each device |
| Interfaces |
8*100/1000/2500 Mbps Base-TX Ethernet ports 2*100/1000/2500 Mbps Base-X SFP ports |
| Tranmission Media |
Ethernet: CAT3 UTP or better Fast Ethernet: CAT5 UTP or better Gigabit Ethernet: CAT5e UTP or better |
| Fan Quantity | N/A |
| Dimension |
220mm*135.6mm*31.5mm |
| Material | Metal |
| Protection |
Lightning protection for uplink ports: 6KV Lightning protection for power: 6KV ESD: Air discharge: ±10kV Contact discharge: ±8kV |
| Forwarding Mode | Store-and-forward |
|
Switch Capacity |
50Gbps |
| Packet Forwarding Rate | 37.2 Mpps |
|
Buffer |
- |
| MAC Address |
16K |
| Jombo Frame | - |
| Power |
Input: 100 - 240V AC 50/60Hz Output: 12V 2A |
| Power Consumption | Max:<24W |
| Mounting |
Desktop mounting: support Wall mounting: support Rack mounting:non-support |
| Environment |
Operating temperature: 0°C - 45℃ Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%) RH, non-condensing Storage humidity: (5% - 90%) RH, non-condensing |
| Certification | CE, FCC, RoHS |
| Protocols | CDMA/CD |
| MAC Address Learning | Auto-Learning and Auto-Aging |
| Functions |
1. Standard: In this mode, all ports can communicate with each other. 2. VLAN: Ports 1-6 are isolated from each other, but can communicate with ports 7-10 3. Static Aggregation: Group 1: 7-8 Group 2: 9-10. For dual-port 2.5G NAS, up to 5 Gbps |
Description
Features
- TEM2010F is an 8-port 2.5G Ethernet switch with 2 SFP ports independently designed by Tenda. The switch supports three-mode toggle and offers eight 2.5 Gbps RJ-45 ports and two 2.5 Gbps SFP ports, establishing high-speed network along with computers, NAS, TV set-up boxes, Wi-Fi 6 APs
- Equipped with 8*2.5G GE and 2*2.5G SFP, all ports support wire-speed forwarding. Through wired transmission, data service traffic is forwarded faster and achieves ultra-low latency
- It has 10*2.5G ports to connect high-speed network devices. It can stimulate the maximum potential of WIFI6AP. Compared with connecting with a Gigabit Ethernet switch, the performance is not limited and the experience is better
- Smooth upgrade, easily upgrade the whole house high-speed networking
- One-click to open the NAS dedicated mode, the transmission speed is doubled to 5G, and the efficiency is improved
- Mode 1：Standard Mode
Default mode of the switch. In this mode, it works as an unmanaged switch; all ports can communicate with each other separately - Mode 2：VLAN Mode
In this mode, ports 1 - 8 are isolated from each other, but all of them can communicate with port 9 and SFP1. This mode helps isolate DHCP broadcast and reduce broadcast storms - Mode 3：Static Aggregation（NAS Dedicated Mode ）
Group 1: 7-8; Group 2: 9-10. For dual-port 2.5G NAS, up to 5 Gbps - The switch supports 6 kV lightning protection for ports and the power supply, reducing the risk of inductive lightning and ensuring stable operation even under thunderstorms
Specifications
| Network standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3bz，IEEE 802.3cb |
| LED Indicator |
Two Link/Act LED indicators for each port One Power LED indicator for each device |
| Interfaces |
8*100/1000/2500 Mbps Base-TX Ethernet ports 2*100/1000/2500 Mbps Base-X SFP ports |
| Tranmission Media |
Ethernet: CAT3 UTP or better Fast Ethernet: CAT5 UTP or better Gigabit Ethernet: CAT5e UTP or better |
| Fan Quantity | N/A |
| Dimension |
220mm*135.6mm*31.5mm |
| Material | Metal |
| Protection |
Lightning protection for uplink ports: 6KV Lightning protection for power: 6KV ESD: Air discharge: ±10kV Contact discharge: ±8kV |
| Forwarding Mode | Store-and-forward |
|
Switch Capacity |
50Gbps |
| Packet Forwarding Rate | 37.2 Mpps |
|
Buffer |
- |
| MAC Address |
16K |
| Jombo Frame | - |
| Power |
Input: 100 - 240V AC 50/60Hz Output: 12V 2A |
| Power Consumption | Max:<24W |
| Mounting |
Desktop mounting: support Wall mounting: support Rack mounting:non-support |
| Environment |
Operating temperature: 0°C - 45℃ Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%) RH, non-condensing Storage humidity: (5% - 90%) RH, non-condensing |
| Certification | CE, FCC, RoHS |
| Protocols | CDMA/CD |
| MAC Address Learning | Auto-Learning and Auto-Aging |
| Functions |
1. Standard: In this mode, all ports can communicate with each other. 2. VLAN: Ports 1-6 are isolated from each other, but can communicate with ports 7-10 3. Static Aggregation: Group 1: 7-8 Group 2: 9-10. For dual-port 2.5G NAS, up to 5 Gbps |

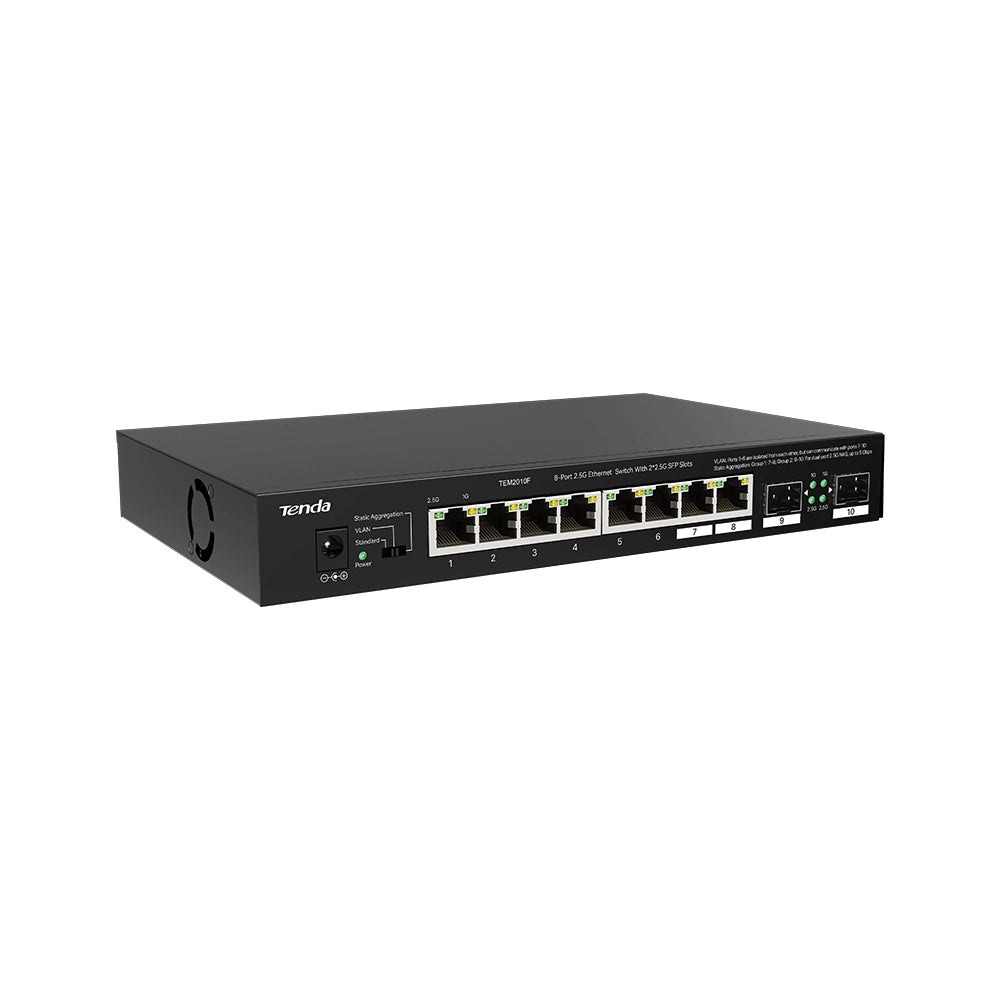

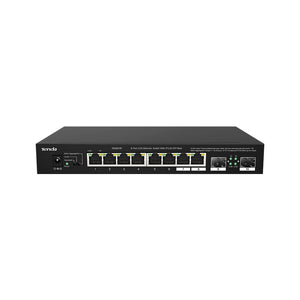

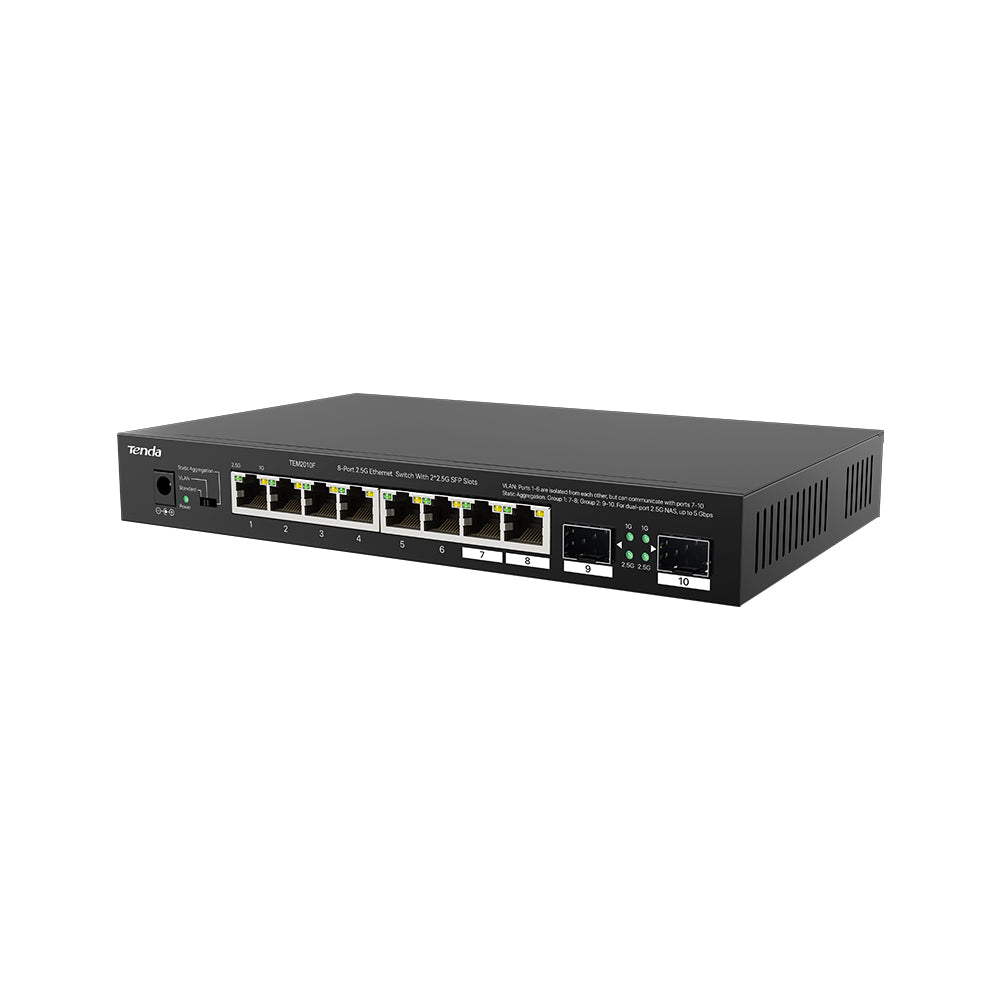

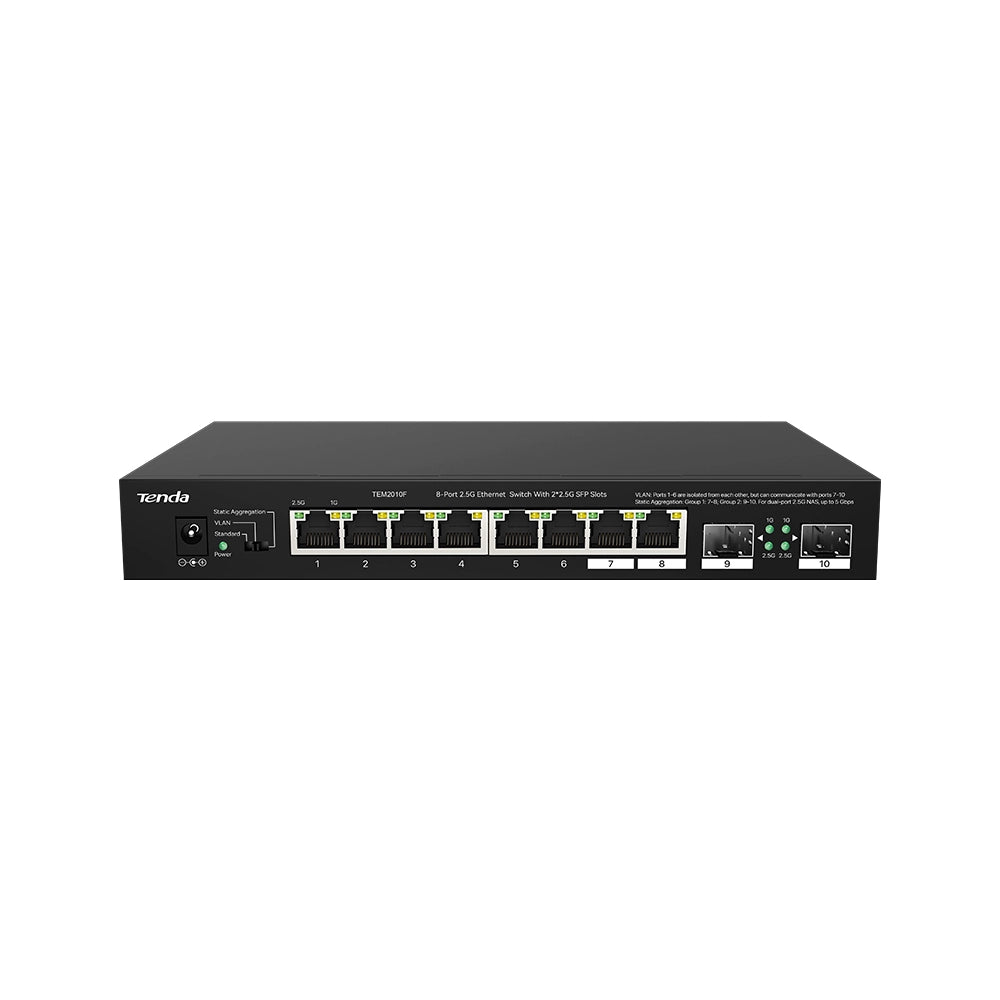

Tenda TEM2010F 8 Port 2.5G Ethernet Switch + 2SFP
- Regular price
- $279.00
- Sale price
- $279.00
- Regular price
-
Tax included.
Shipping calculated at checkout.
